Voxelab Aquila C2 User Manual page 11

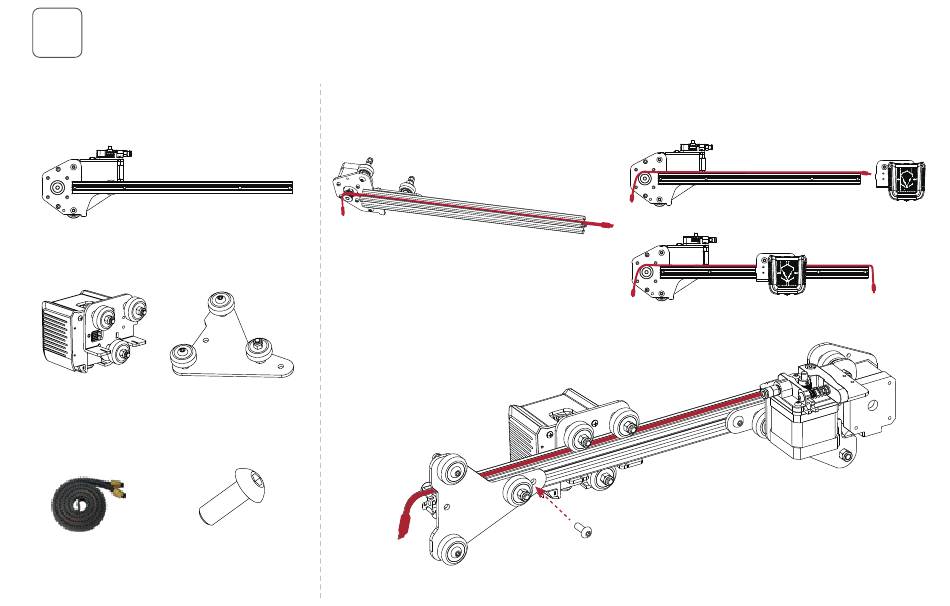

Install synchronous belt, extruder kit and Z-axis passive block
4
安装同步带，喷头组件和Z轴被动块
X-axis kit
X轴组件 *1
Extruder kit *1
Z-axis passive block *1
挤出组件 *1
Z轴被动块 *1
Synchronous belt *1 Hexagon socket button
head screws M5x14 *1
同步带 *1
内六角平圆头螺钉M5x14 *1
Put the synchronous belt into the profile along the V-wheel of the extruder kit (The belt is on the top of
the profile and under the V-wheel when pushing extruder kit into the middle).
将同步带放入X轴型材凹槽中，挤出组件沿着V轮推进X轴型材（当把挤出组件推至X轴型材中间时，同步带在X轴型
材和喷头V轮之间）。
The highlighted red stripe is the synchronous belt.
红线代表同步带
Install Z-axis passive block.
安装Z轴被动块
10
M5x14
