Repairs

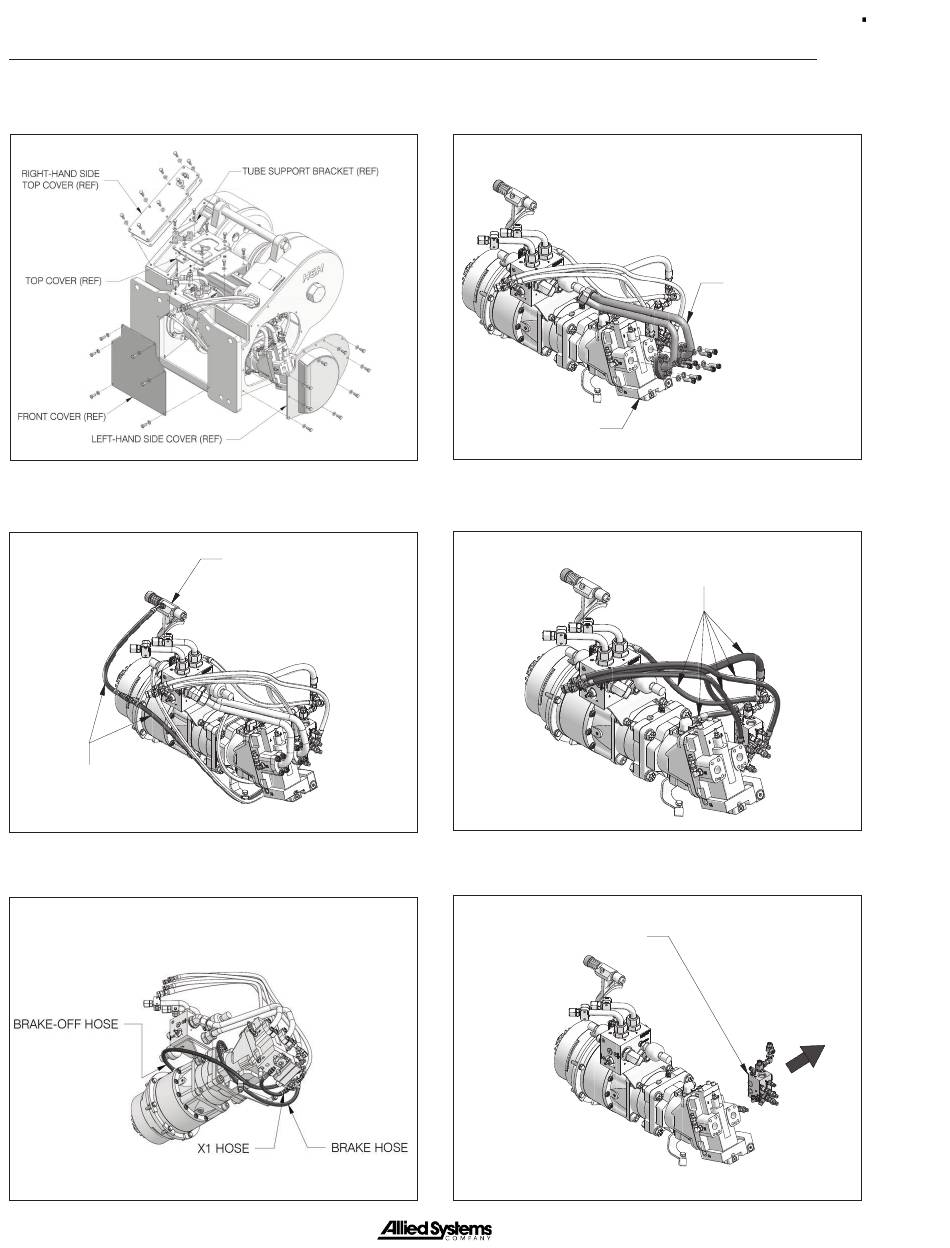

- Hydraulic System Disassembly
1.
Drain oil from winch, remove tube support bracket,
and covers as shown.
2.
Remove the two freespool hoses. (Other parts not
shown for view clarity.)
FREESPOOL
HOSES
3.
Remove BRAKE-OFF, BRAKE, and X1 hoses.
4 - 12
FREESPOOL
ASSEMBLY (REF)
4.
Remove motor tube assembly at Ports A and B on
the motor.
MOTOR (REF)
5.
Remove remaining hoses.
6.
Remove the control manifold.
CONTROL MANIFOLD
MOTOR TUBE
ASSEMBLY
REMOVE HOSES
®
