BRAKE-OFF
CLUTCH (REF)
28. Fitting, ST
29. Logic Manifold Assembly
30. Capscrew
31. Washer
32. Capscrew
33. Clamp, Half
34. Accumulator
35. Fitting, ST
37. Hose Assembly, PP
38. Hose Assembly, PD
39. Hose Assembly, Accumulator Bleed
40. Fitting, TE
41. Fitting, EL
43. Winch Wire Harness
45. Rescue Manifold Assembly

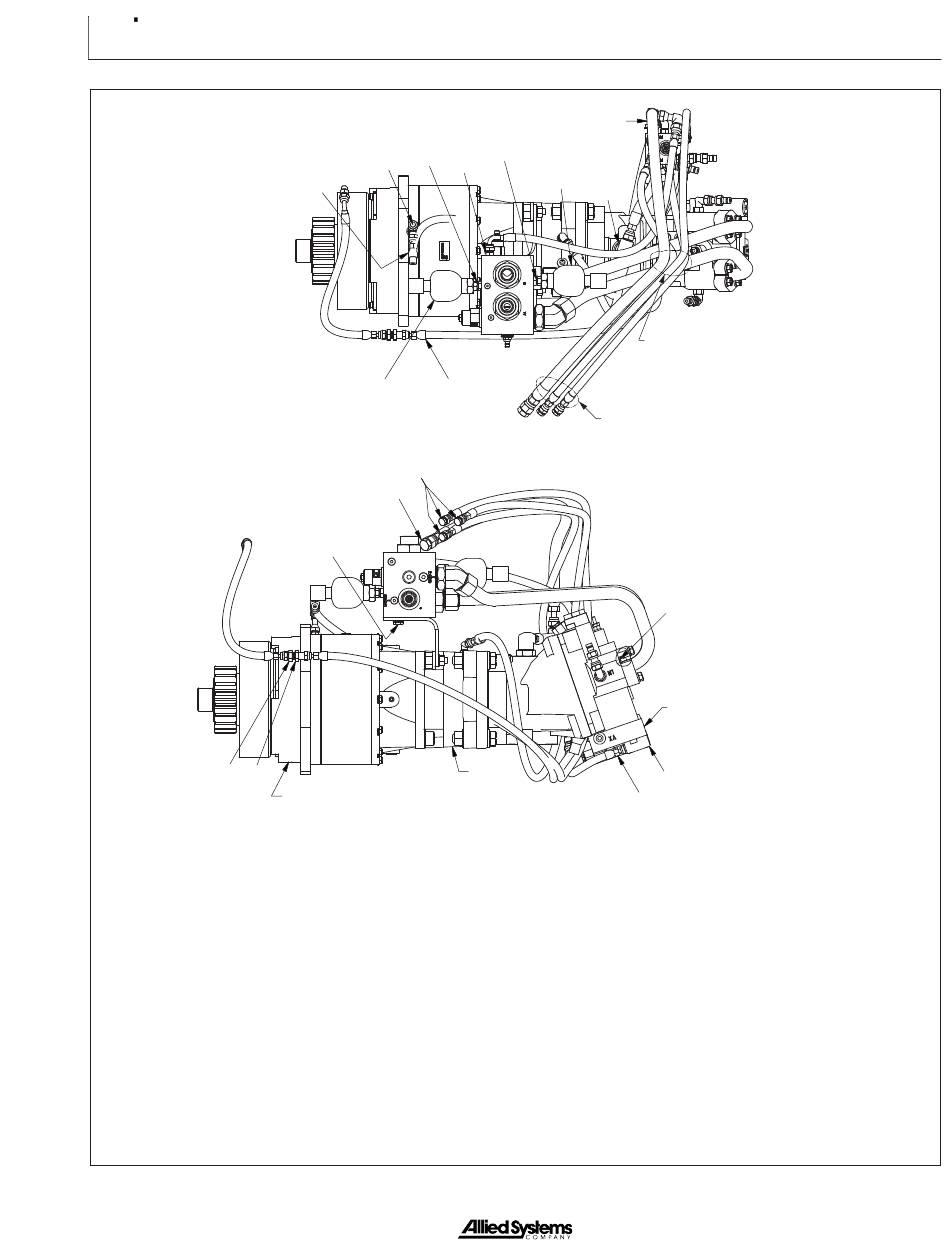

Figure 4-4 Hydraulic System Components, Standard Winch_2
(ACCUM A
(ACCUM B
PORT)
PORT)
35
11, 13
18
22
34
24
CHARGE WITH
NITROGEN GAS
TO 500-550 PSI
59
58
30
BRAKE
(REF)
5
35
34
12
HOSES & WIRE HARNESS
PASS THROUGH
FRAME HERE (REF)
SECURE COLORED ZIP-TIES
TO HOSES NEAR THE FREE
HOSE END FITTING AS FOLLOWS:
RI = YELLOW, RO = ORANGE,
PP = GREEN
7
MOTOR (REF)
16 (TO MOTOR X1)
25
46. Fitting, FF
47. Fitting, ST
48. Tube Assembly, A
49. Tube Assembly, B
50. Cover Plate
51. Washer
52. Clamp Body, Tube
53. Capscrew
54. O-Ring
55. Fitting
56. Nut
57. Bracket, Tube Support
58. Fitting
59. Fitting
