Repairs - Drum & Drum Shaft Installation
Drum and Drum Shaft Installation
If the drum gear was removed, it must be installed prior
to installation of the intermediate shaft and motor shaft
assembly.
16
5
4
25
1. Adapter
2. Tapered Thimble
3. Roller Bearing
4. Capscrew
5. Washer
6. Retainer Plate
7. Spacer
8. O-Ring
9. Oil Seal
4 - 42
15
5
DETAIL A
19
21
3
6
12
13
14
24
22
21
10. Piston Seal Ring
11. O-Ring
12. Shim .020
13. Shim .007
14. Shim .005
15. Ferrule Keeper
16. Capscrew
18. Capscrew
19. Oil Seal

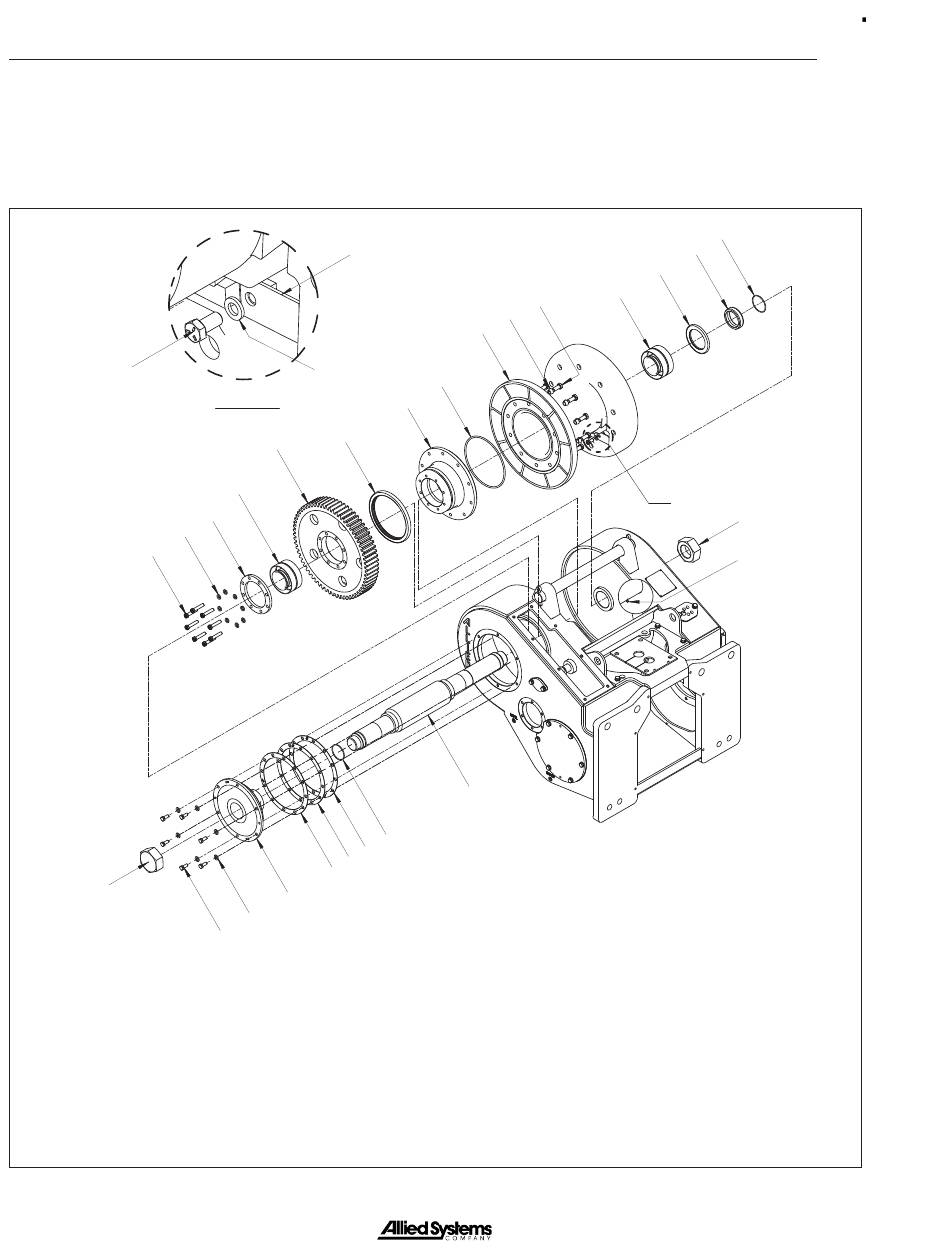

Figure 4-15 Location of Drum and Drum Shaft Components
18
2
26
10
1
20
11
20. Drum Shaft
21. Drum Gear
22. Washer
23. Capscrew
24. Drum Retainer
25. Nut
26. Drum
27. Lube Fitting
8
7
9
3
A
25
27
®
