Allied Systems H6H Service Manual page 119

Repairs - Hydraulic System Assembly

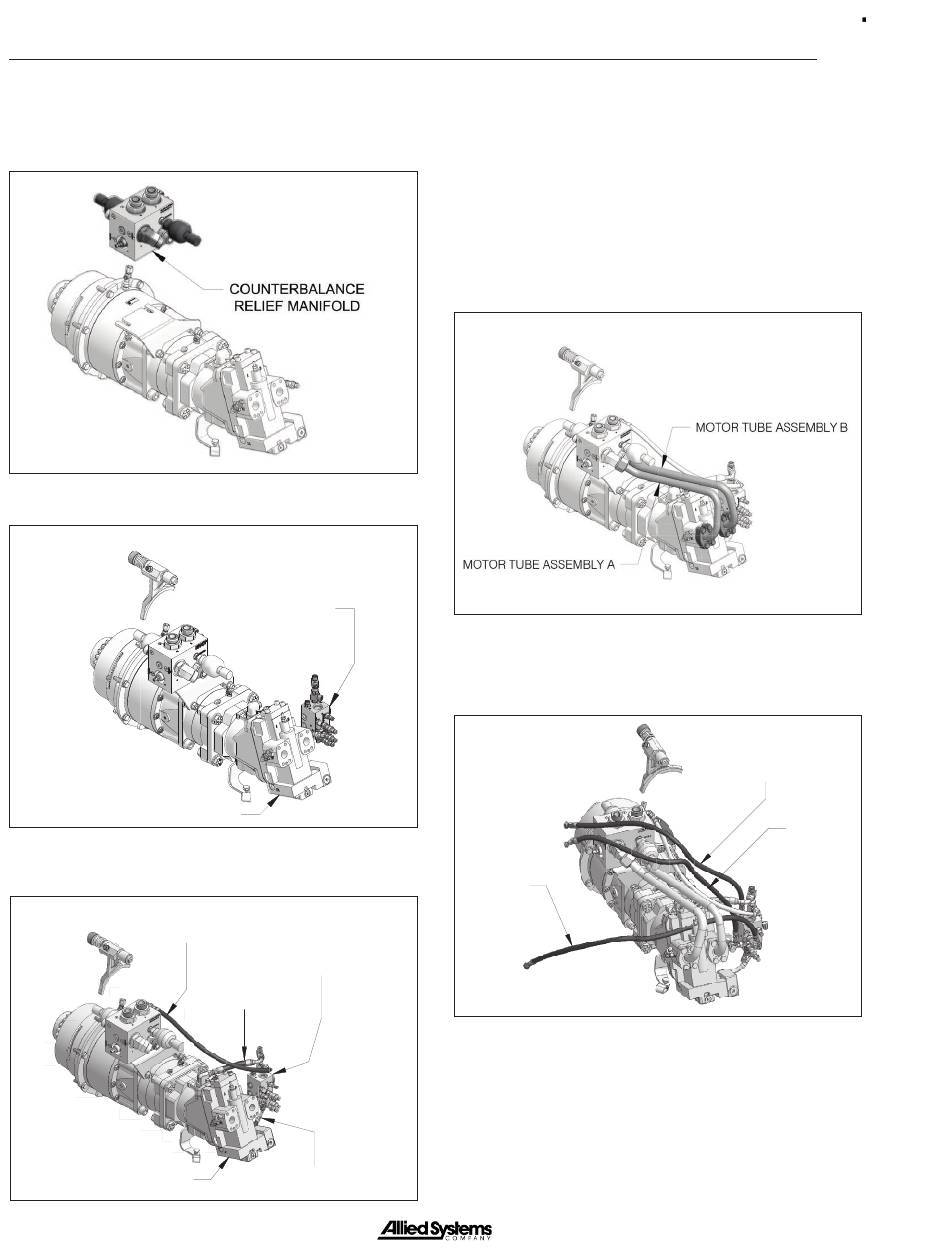

1. Install the counterbalance relief manifold. Leave
mounting bolts loose until motor tubes are installed.
2. Install the control manifold.
HYDRAULIC MOTOR (REF)
3. Connect the hoses between the control manifold and
the motor.
CONTROL MANIFOLD
DRAIN HOSE
HYDRAULIC MOTOR (REF)
4 - 40
CONTROL MANIFOLD
CONTROL MANIFOLD
(REF)
MOTOR CASE
DRAIN HOSE
X1 HOSE
4. Follow the motor tube installation procedures below:
• Install motor tube assemblies, but do not tighten.
• Adjust the manifold fittings as needed.
• Alternately tighten connections to prevent placing
motor tubes in a bind. Tighten motor tubes at the
motor, then at the manifold.
• Tighten the manifold mounting bolts and manifold
bracket bolts.
5. Install the drain PP, RI and RO hoses.
RO HOSE
®
PP HOSE
RI HOSE
