Repairs - Drum Shaft & Drum Removal
Drum Shaft & Drum Removal

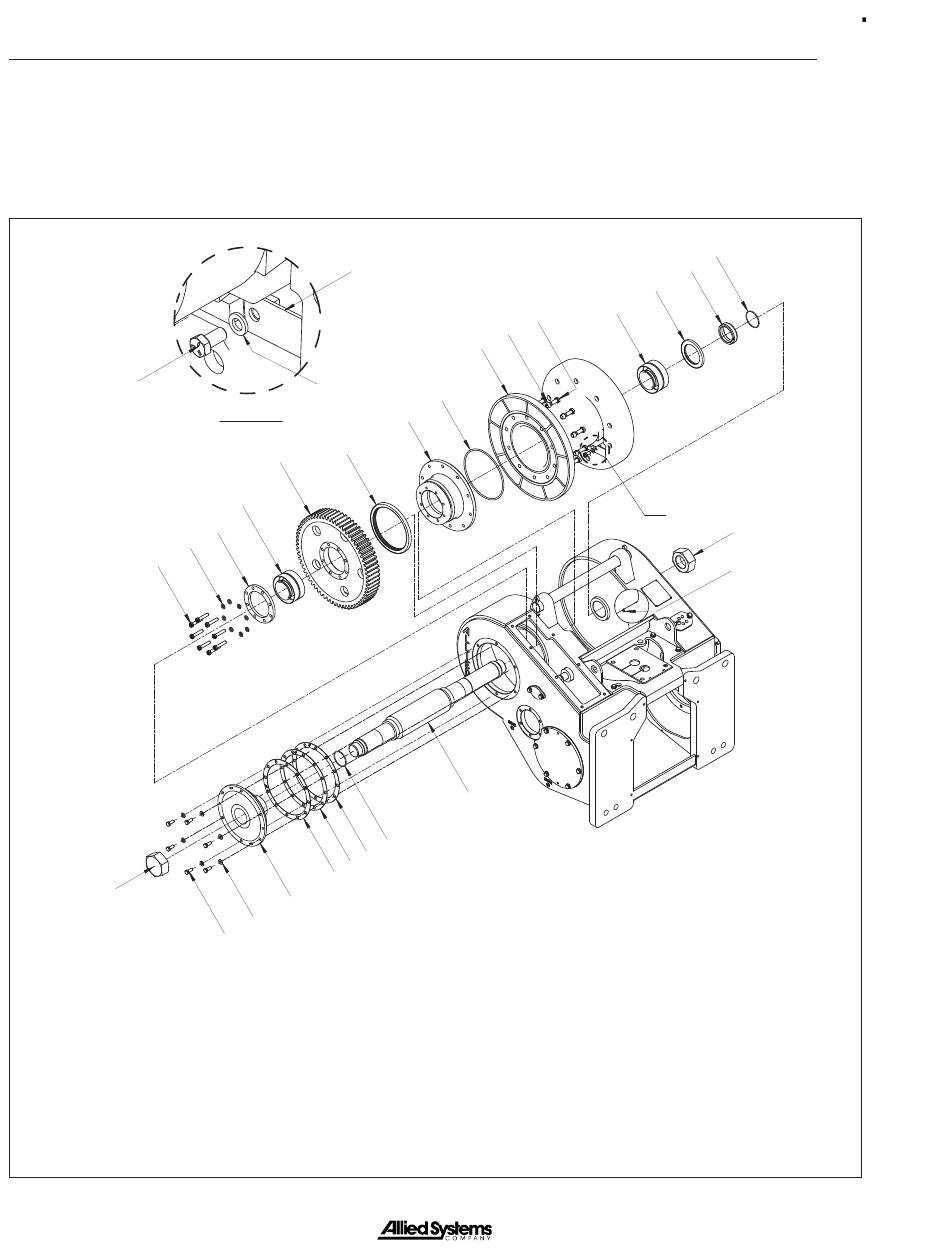

Figure 4-2 shows the location of drum and drum shaft
components. Do not attempt to remove heavy components
such as the drum or drum gear by hand. Always use
a lifting device and the recommended attachments
16
5
4
25
1. Adapter
2. Tapered Thimble
3. Roller Bearing
4. Capscrew
5. Washer
6. Retainer Plate
7. Spacer
8. O-Ring
9. Oil Seal
4 - 6
15
5
DETAIL A
19
21
3
6
12
13
14
24
22
21
10. Piston Seal Ring
11. O-Ring
12. Shim .020
13. Shim .007
14. Shim .005
15. Ferrule Keeper
16. Capscrew
18. Capscrew
19. Oil Seal
Figure 4-2 Location of Drum and Drum Shaft Components
whenever possible. To remove the drum gear it will be
necessary to first remove the intermediate shaft (see
Intermediate & FREESPOOL Shaft Removal section).
18
2
26
10
1
20
11
20. Drum Shaft
21. Drum Gear
22. Washer
23. Capscrew
24. Drum Retainer
25. Nut
26. Drum
27. Lube Fitting
8
7
9
3
A
25
27
®
