Planetary Reducer Assembly - Allied Systems H6H Service Manual

Repairs

- Planetary Reducer Assembly

Planetary Reducer Assembly
NOTE: Disassembling the reducer while it's still
under its warranty period immediately invalidates
the warranty. If the reducer malfunctions before
4 - 26
1. Sun Gear
2. Primary Carrier Assembly
3. Secondary Carrier Assembly
4. Ring Gear
5. Cover

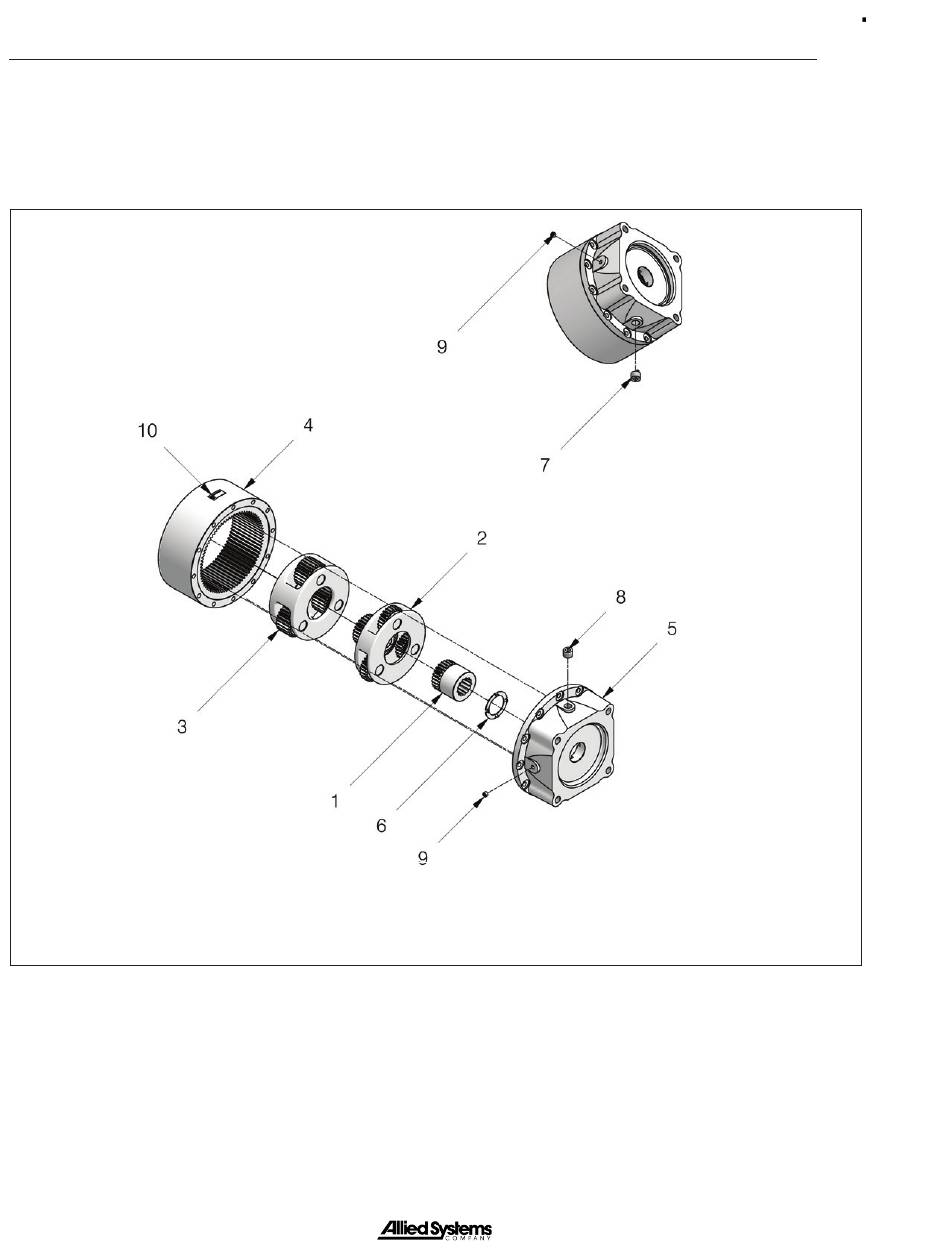

Figure 4-9 Planetary Reducer Assembly
its warranty period expires, please contact Allied
Systems Company first before attempting to repair it.
6. Thrust Washer
7. Fitting
8. Fitting
9. Fitting
10. Label
®
