Repairs - Intermediate & FREESPOOL Shaft Removal
5. Tag shims for reference during reassembly (not
shown).
6. Screw a 3/4-16 UNF slide hammer into the end of
the intermediate shaft and partially pull it out.
7. Remove the pinion gear and the inner bearing cone.

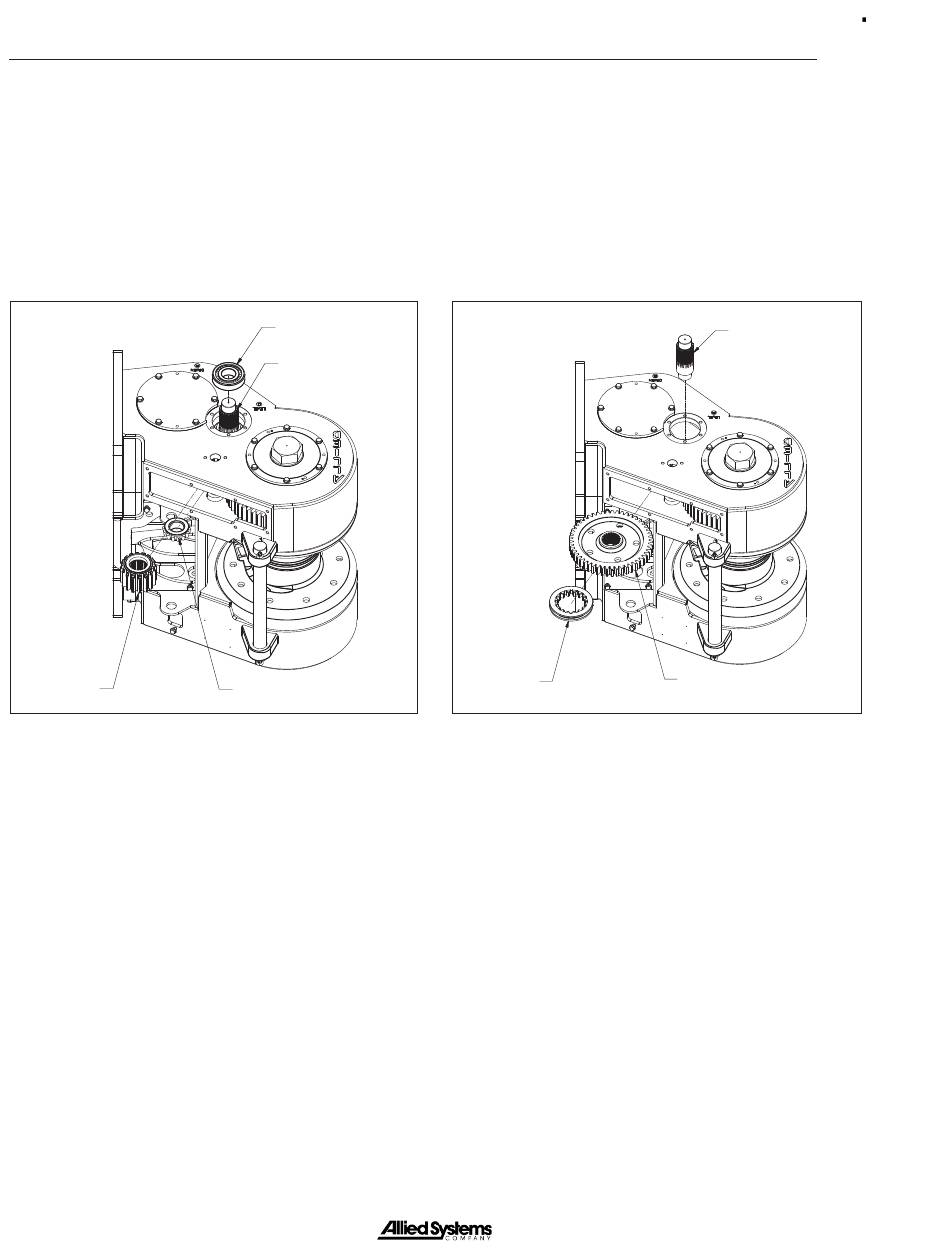

Refer to Figure 4-1 for the location of components.
Pinion Gear
4 - 4
Outer Bearing
Intermediate Shaft
Inner Bearing Cone
8. Remove bearing cup and cone and the intermediate
shaft, while ensuring that the intermediate gear does
not fall.
9. Remove intermediate gear.
NOTE: Remove drum shaft retainer prior to removing
intermediate gear. See Drum Shaft and Drum Removal
section that follows.
Dentle Gear
Intermediate Shaft
Intermediate Gear
®
