5. Drum 2 pedal command is in percent (0% applied, 100%
fully released).
6. Drum 2 PC output to proportional valve in percent of
pressure (0% to 100%).
7. Drum 2 measured pressure to clutch/brake piston in psi.
8. Drum 2 clutch/brake command is (0 disengaged,
1 engaged).

Swing

1 2
3 4
1. The handle command is in percent from neutral (+ right
and - left). For certain operating conditions the handle
command can be set to neutral by the controller even if
the handle is not in neutral.
2. The pump command is in percent from neutral (+ right
and - left).
3. Measured pump pressure swing right (port A) in psi.
4. Measured pump pressure swing left (port B) in psi.

Swing Speed/Torque

See Swing Speed/Torque Adjustment in Operator Manual.

Drum Slip

See Free Fall Drum Slip Adjustment in Operator Manual.

Track

1 2
5 6
1. The right handle/pedal command is in percent from
neutral (+ forward, - backward). For certain operating
conditions the handle command can be set to neutral by
the controller even if the handle is not in neutral.
2. The right pump command is in percent from neutral
(+ forward, - backward).
3. The left handle/pedal command is in percent from
neutral (+ forward, - backward). For certain operating
conditions the handle command can be set to neutral by
the controller even if the handle is not in neutral.
4. Left pump command in percent from neutral (+ forward,
– backward).
5. Measured system pressure right track in psi.
6. Measured system pressure left track in psi.
Manitowoc

SWING

3 4
7

TRACK

Published 05-16-17, Control # 233-03
7. Parking brake command (1 release, 0 engage).

RIN

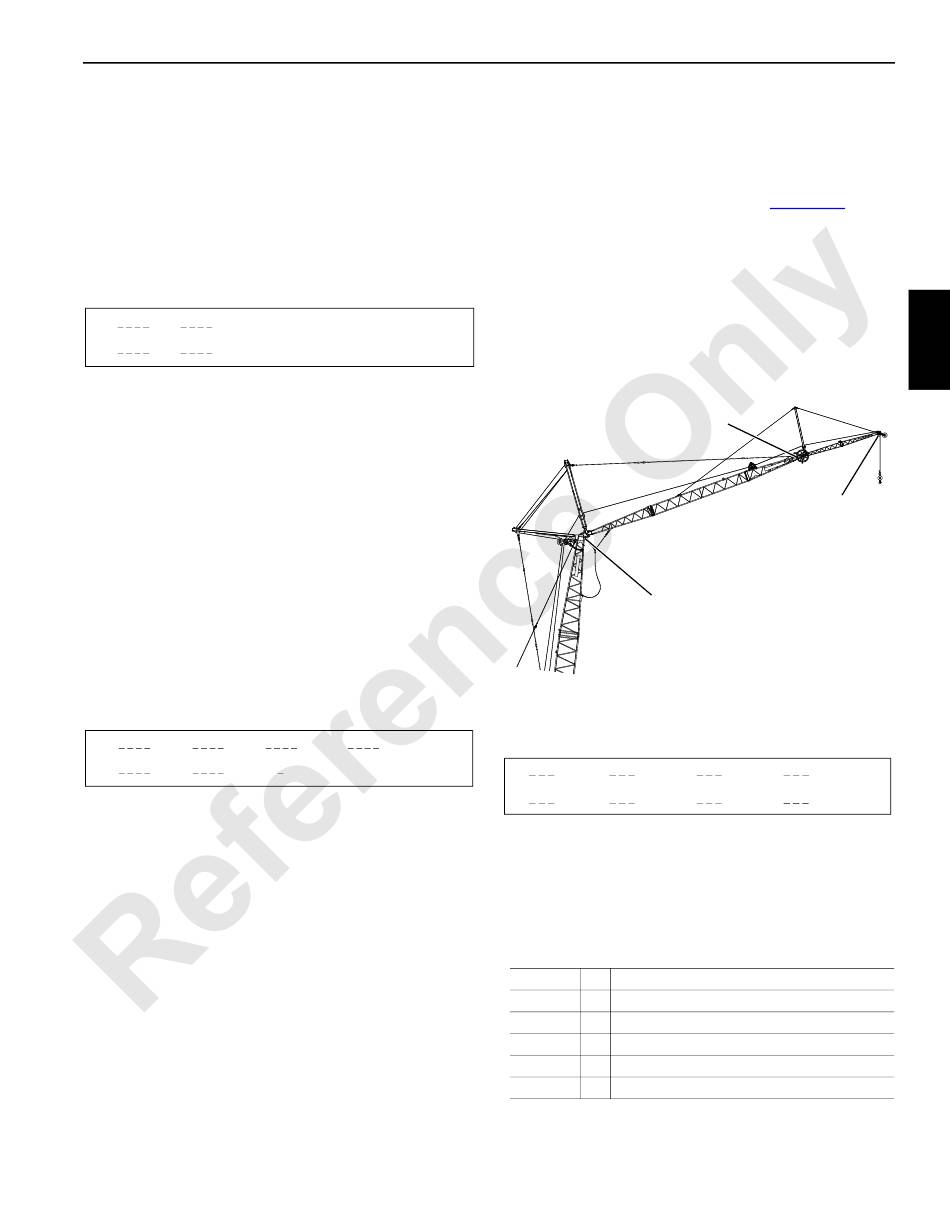

Depending on the crane configuration, RIN computers are
mounted in the universal boom top junction box, luffing jib top
junction box, or fixed jib top junction box
The junction boxes are interconnected in series with
electrical cords that run up the boom to the last attachment
component. The RIN computer in universal boom top
junction box receives inputs from load sensors, limit
switches, angle sensors, and other RIN computers in series.
The RIN computer in universal boom top junction box
transmits output information to crane EPIC computer in
operator's cab.
