999 SERVICE/MAINTENANCE MANUAL
Table 3-5 Display Abbreviations
Abbreviation Definition
+ Plus
– Minus
% Percent
A1 Handle Inputs
A2 Pump Control Outputs
A3 Programmer's Screen
ANG Angle
Auxiliary
AUX
CALIB Calibration
CHRG Charge
CON Configuration
D1 Digital On-Off Inputs
D2 Digital Inputs
D3 Digital Inputs or Outputs
Degrees (angle)
DEG
DEG F Degrees Fahrenheit
FWD Forward
FFall Free Fall
HYD Hydraulic
LUFF Luffing
MIN Minimum
MAX Maximum
PRESS Pressure
PSI Pounds Per Square Inch
PSIA Pounds Per Square Inch Absolute
RPM Revolution Per Minute
RIN Remote Input Node
SEND Sender
SYS System
TEMP Temperature
Manitowoc

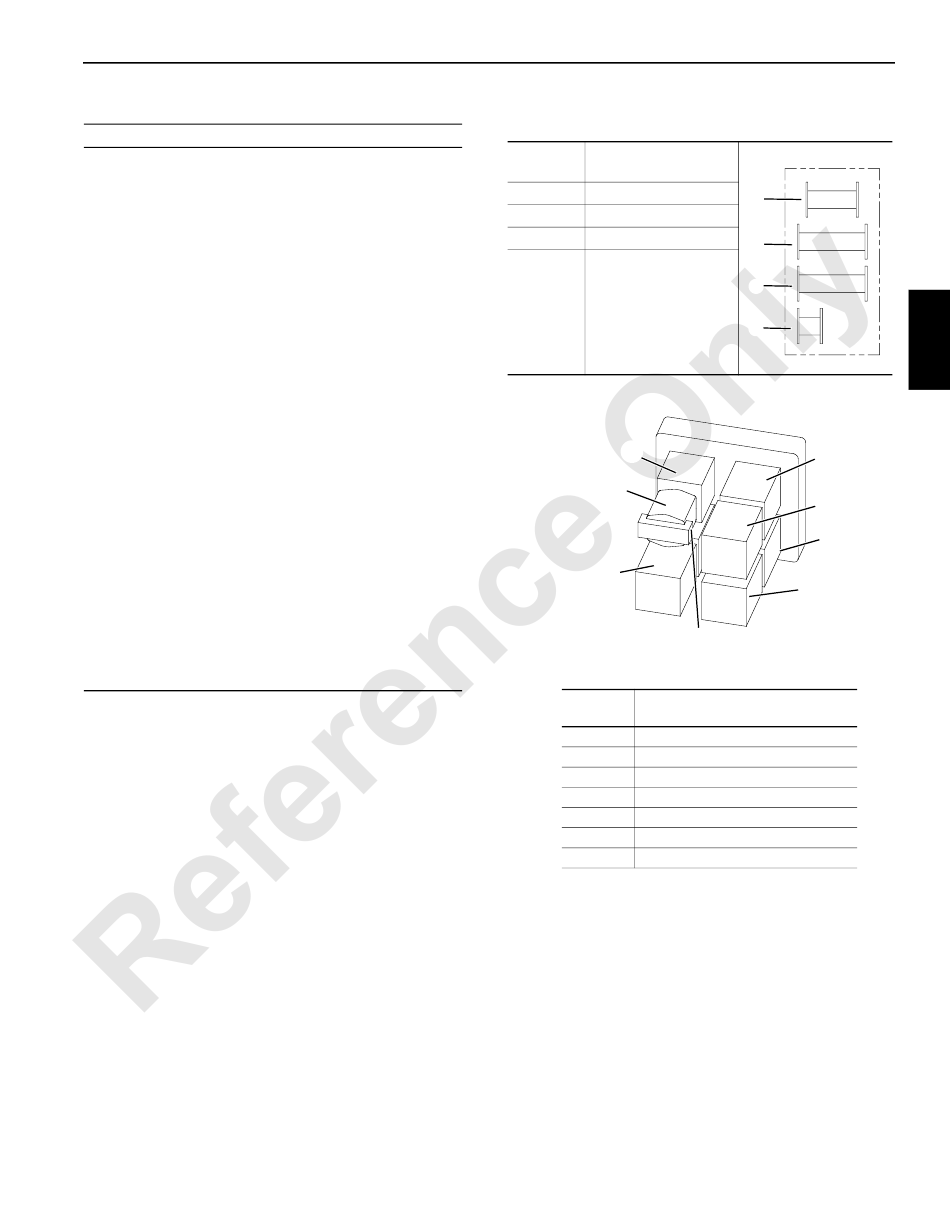

Table 3-6 Drum and Pump Identification
Drum
Number
1
2
4
8
Super Charge
Pump Identification
Published 05-16-17, Control # 233-03
Drum
Front Load Drum
Rear Load Drum
Boom Hoist
Auxiliary Load Drum
(in boom butt)
CRANE
2
Pump
5
A817
1
Pump
Number Crane
0 Front Load Drum
1 Rear Load Drum or Luffing Hoist
2 Boom Hoist
3 Swing
4 Right Crawler
5 Left Crawler
10 Auxiliary Load Drum (in butt)
ELECTRIC SYSTEM
8
1
2
3
4
A817
10
3
0
4
