POWER TRAIN
81009399_a
7-12
Item
1
Level Sight Glass
2
Fill Cap
3
Coolant Level Sensor
4
Air Bleed Valve
5
Charge Air Cooler
6
Radiator Drain Valve with Hose
7
Hydraulic Oil Cooler
8
Radiator
1
2
3
4
Shown with Engine Enclosure Removed for Clarity
(see
Figure 7-8
Published 05-16-17, Control # 233-03
999 SERVICE/MAINTENANCE MANUAL
Description
5
8
for access points)
2
1
6
7

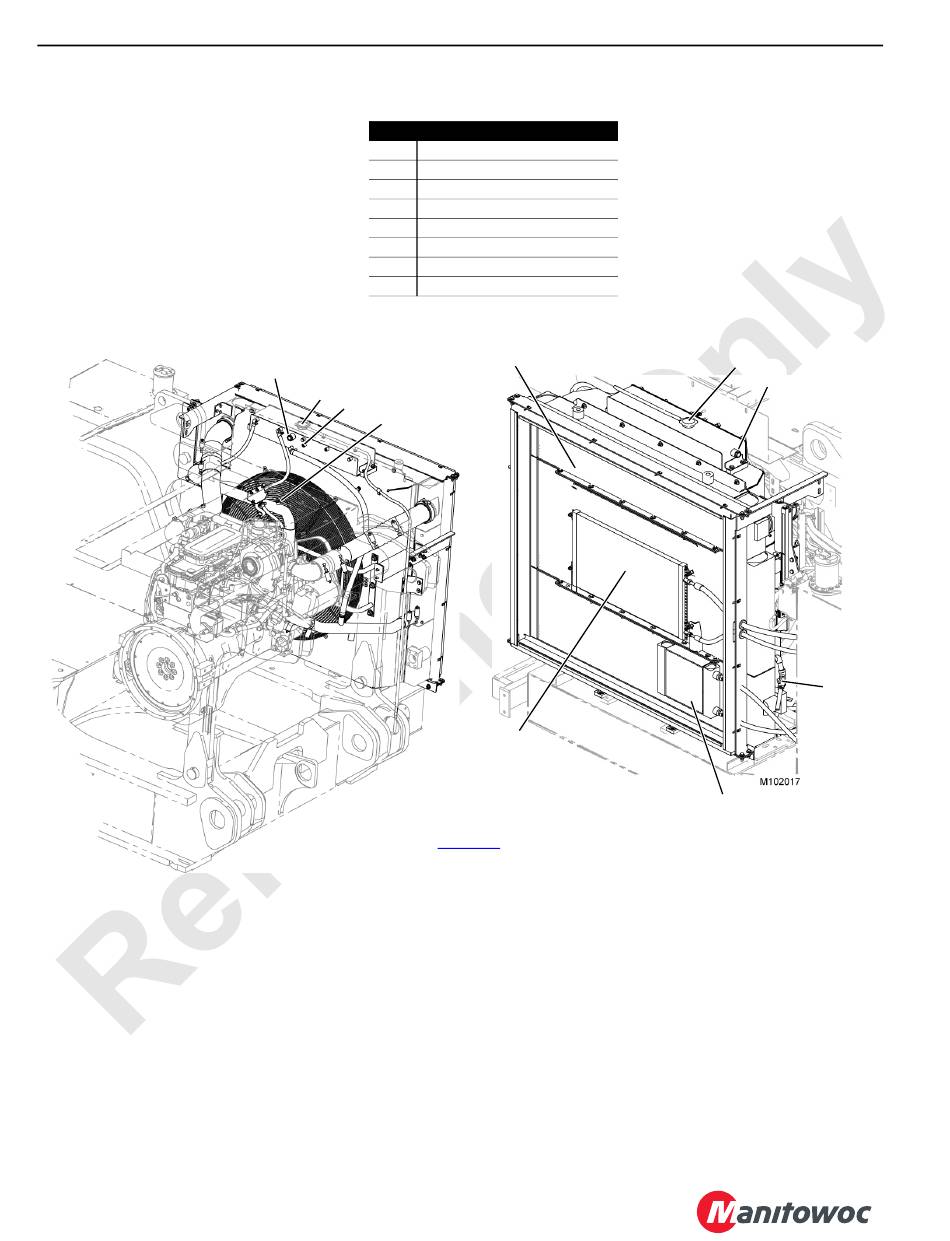

FIGURE 7-10
