Wiring Diagram With Oem Remote Start And With T-Harness (Thfod2) - Directed Directechs DB3 Installation Manual

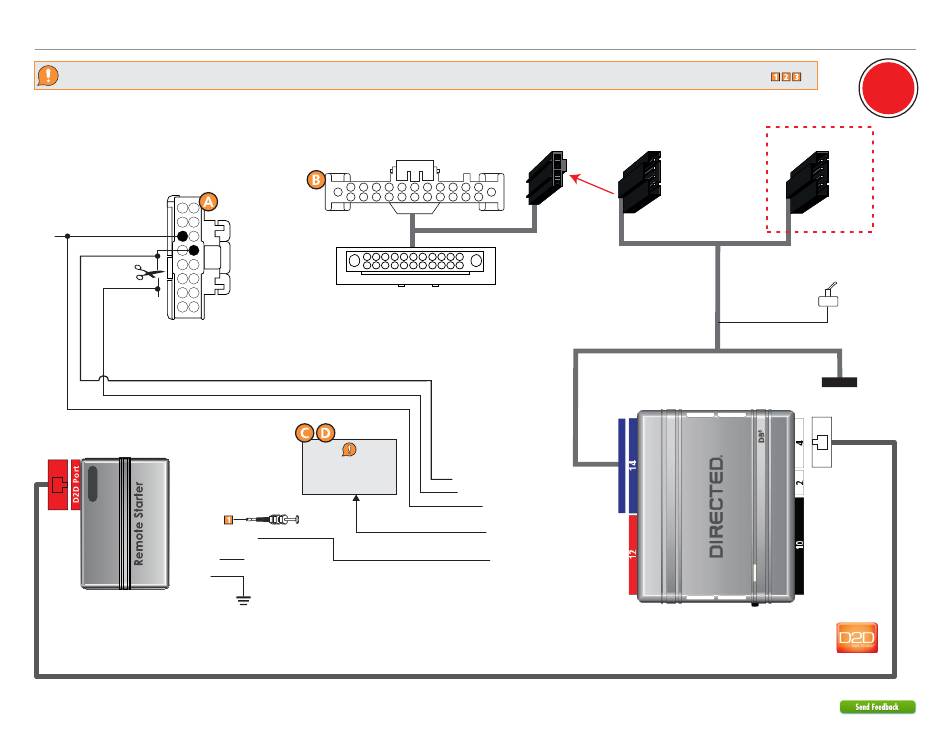

Wiring diagram with OEM Remote Starter and
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram (
Headlight Switch
9 1
(-) Parking Lights:
10 2
Gray or Yellow, pin 11
11 3
12 4
13 5
CUT
14 6
15 7
Parking Light
8
16
Interrupt:
Pin 4
(-) Hood Input
(+) Ignition Status Input
(+) 12V Input
(-) Ground
8 403.FORD12 1.60 2015 Lincoln MKZ Hybrid (Smart Key)
©2022 VOXX•DEI LLC. All rights reserved.
with T-Harness (THFOD2)
Gateway Module
(on OBDII Connector or right of steering column)
Refer to
'Vehicle connections'
for wire and connector
details.
Hood Pin
(+) 12V
Parking Lights Interr. (conn. side): Orange/Red
Parking Lights Interr. (veh. side): Yellow/Red
(-) Parking Lights Output: Brown/Red
(-) Trunk Release Output: Black/White: 1
(+) Ignition Status Output: Gray/Black: 7
).
Type 2
Type 1
4-pin
connectors
White/Black N.C.
Remote Start Safety
Override Switch
T-Harness THFOD2
(optional)
D2D
only
NOT USED
Do not
connect
XKD2D65
