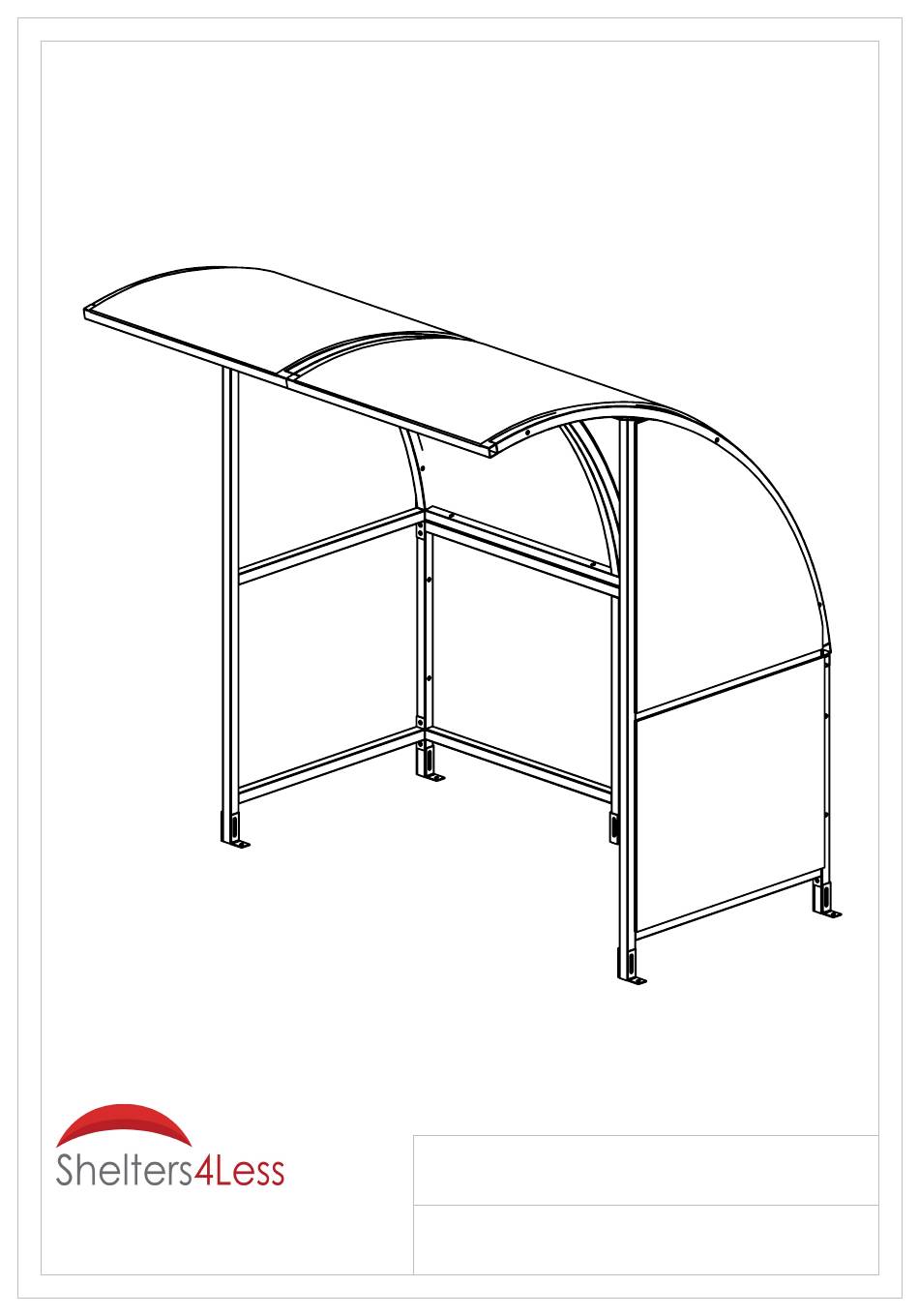

- Page 1 Assembly Instructions Shelter type: Derby Email : sales@shelters4less.co.uk Web : www.shelters4less.co.uk SR00 59 -01-16011 7 Tel : 0800 160 1002...
- Page 2 Tools required: (Not supplied) Drill/Screwdriver Socket set...
- Page 3 PARTS LIST & FITTINGS ITEM exsploded PART NO. IMAGE DESCRIPTION / QTY. Right Roof Frame Holes drilled or right CHD1.1 side to attach to Side Frame Left Roof Frame Holes drilled on left CHD1.2 side to attach to Side Frame CHD2 Side Frame CHD3...
- Page 4 Step 1 2 people recommended Take the left Side Frame and attach it to the Back Square Frame to fit this shelter. lining it up in positions shown below using the M10x70 Bolts supplied. Step 2 Take the other Back Square Frame and attach them side to side lining up the holes in the positions shown below.
- Page 5 Step 3 Take the Right Side Frame and attach it to the Assembely lining it up in positions shown below using the M10x70 Bolts supplied. Step 4 Take the two ouside Roof frames and loosly attach them do the Back Square Frame then line up the holes to atach it to the upper vertical Side Frames...
- Page 6 Step 5 FT1 feet added at this point then it can be fixed into position. Note: Add Plastic End Caps at this point, all caps should be used. Polycarbonate sheeting parts will vairy depending on which model bought. Enjoy your new Derby shelter...
- Page 7 NOTES:...
- Page 8 Touch up any exposed metal should it get scratched CONTACT DETAILS: Email : sales@shelters4less.co.uk Web : www.shelters4less.co.uk Tel : 0800 160 1002 Shelters4Less, Unit 3, 2 Lansdowne Crescent, Bournemouth, BH1 1SA All Parts and Fixings checked by: Print Name: Signature:...
