Summary of Contents for Shelters4Less SR1551

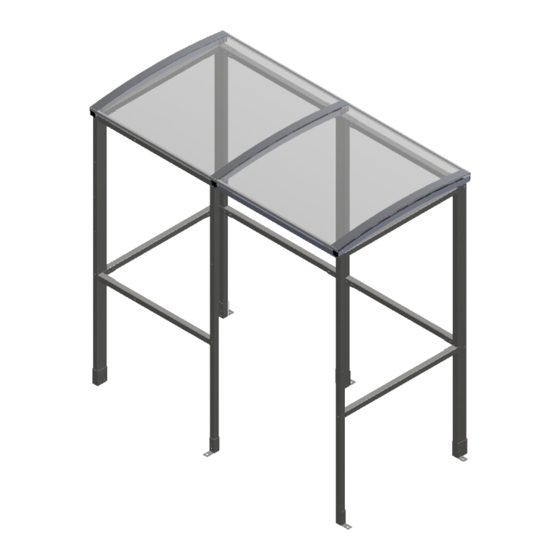

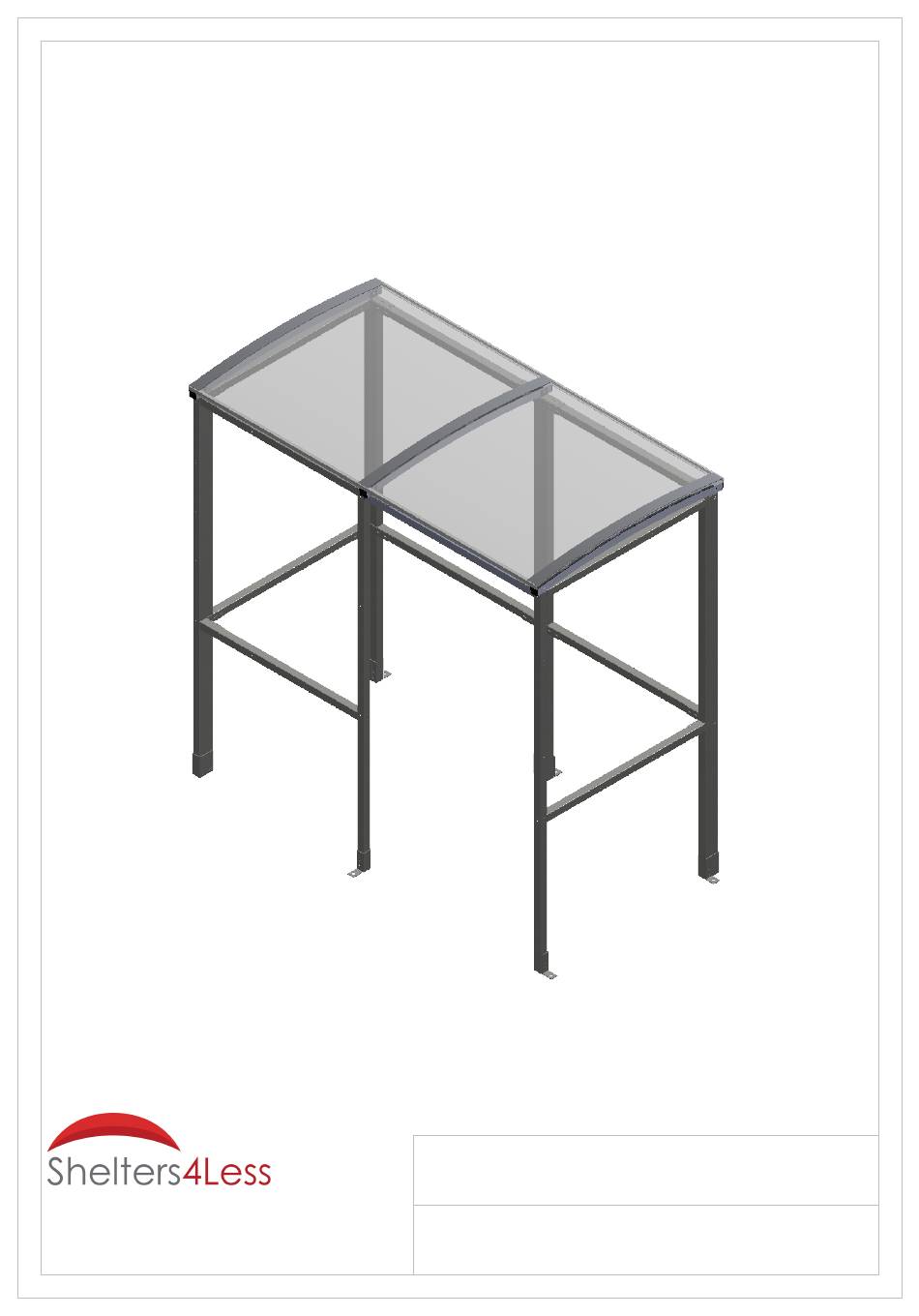

- Page 1 Assembly Instructions Product Code: SR1551 Email : Sales@shelters4less.co.uk Doc. No.: SR1551-01-040116-UK Web : www.shelters4less.co.uk Tel : 0800 160 1002...
-
Page 2: Exploded View
Exploded View... - Page 3 Parts List ITEM PART NO. DESCRIPTION DIMENSION IMAGE QTY. FRAME 2000x1035 BRACKET 220x40 BRACKET 110x110 ROOF TIE 1025x40x40 FOOT 109X100X40 FOOT 109X100X80 BRACKET 110x46 RAFTER 1130x40x40 SEALING STRIP TRIM TO 1135 1 ROLL PCE1 ROOF PANEL 1135X1050 ROOF STRIP 1130 ROOF EDGE TRIM TO SUIT EC40...
- Page 4 Fittings and Tools Fittings Bolt set M10 T25 T50 BTANCM12100 25 mm 50 mm Washer Black M10/12 x 100 mm M10 x 60 mm Tech Tech Caps Concrete Bolt screw screw Pack A Required Spare Image Tools required: NOTE: THE 50mm TECH SCREWS ARE FOR FIXING ROOF STRIPS (RC) ONLY Drill/Screwdriver...
- Page 5 Step 1 Assemble the back and side frames using the S1 frames. Join the frames using the CB1 brackets in the corners and the JF1 brackets on the flat joints. GENERAL NOTE: 50mm Tech Screws are for fixing S1 Frame roof strips (RC) only JF 1 Check the dimension...
- Page 6 Step 2 Attach front S1 frame and ST1 tie bar using CB1 brackets in the corners and JF1 brackets on the straight joints. Once the main structure is bolted together, move the shelter into its final position and install foot brackets FT1 and FT3 to secure shelter to the ground.
- Page 7 Step 3 Screw RB1 brackets to beams, then Bolt R1 roof rafters to through RB1 brackets. R1 RAFTER 1035 1035 Front View...
- Page 8 Step 4 Stick sealing strips (SS)on top of the rafters and align roof panels (PCE1). Apply more sealing strips to the top of the roof panel directly above the first sealing strips. Fix the RC1 strips on the edges and over the gap between the roof panels and screw in with 50mm Tech screws.
-
Page 9: Plan View
Plan View Suggested size for concrete base: 200mm oversized on all 4 sides. 1139.25 1044.50... - Page 10 NOTES:...
- Page 11 NOTES:...
-
Page 12: Maintenance
Touch up any exposed metal should it get scratched CONTACT DETAILS: Email : Sales@shelter4less.co.uk Web : www.shelters4less.co.uk Tel : 0800 160 1002 Shelters4Less, Unit 3, 2 Landsdowne Crescent, Bournemouth, BH1 1SA All Parts and Fixings checked by: Print Name: Signature:...
