Shelters4Less Derby Assembly Instructions Manual

Advertisement

Quick Links

Assembly Instructions
Email : sales@shelters4less.co.uk
Web : www.shelters4less.co.uk
Tel : 0800 160 1002
Shelter type: Derby
SR0060-01-011216

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Derby and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Shelters4Less Derby

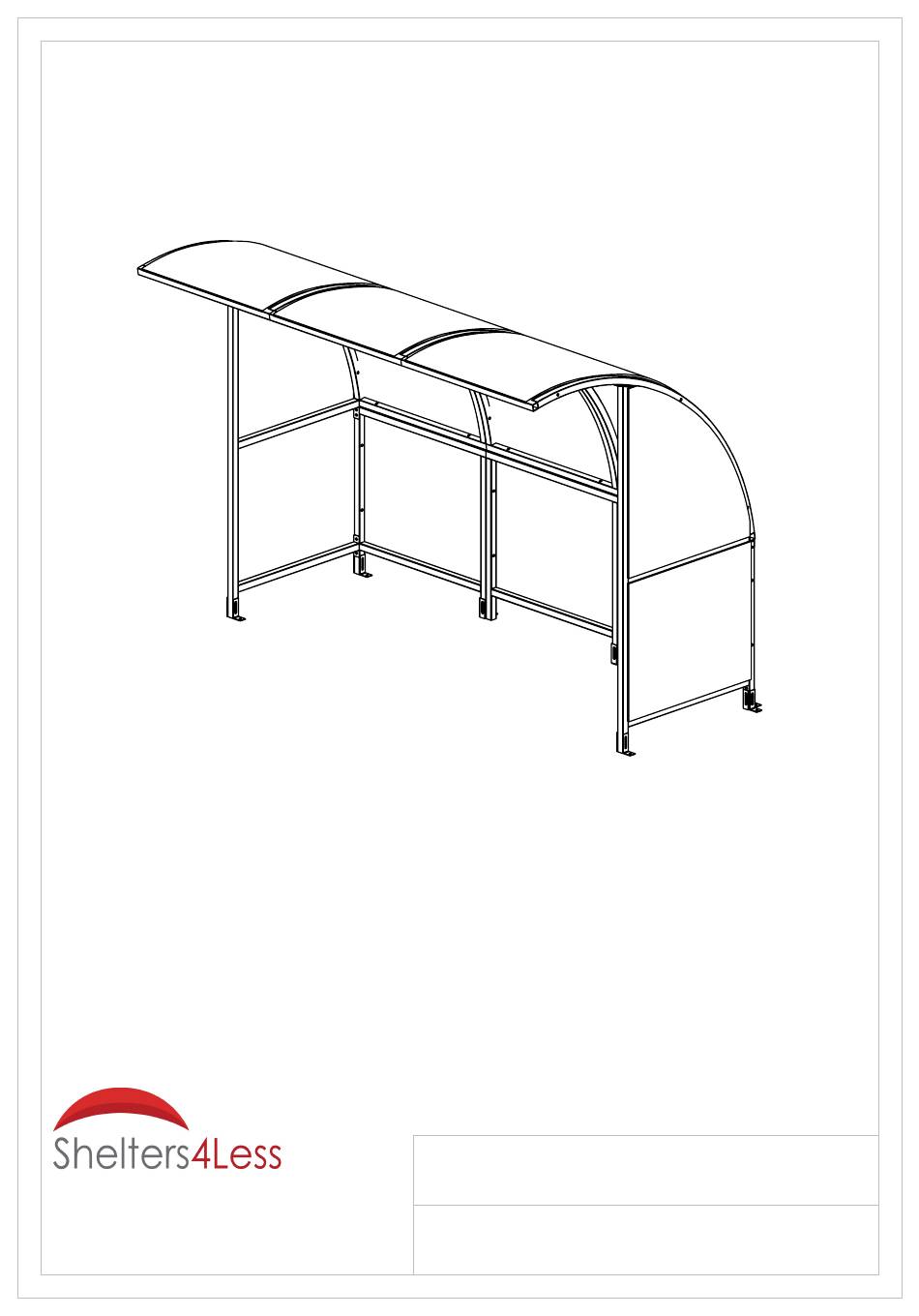

  • Page 1 Assembly Instructions Shelter type: Derby Email : sales@shelters4less.co.uk SR0060-01-011216 Web : www.shelters4less.co.uk Tel : 0800 160 1002...
  • Page 2 Tools required: (Not supplied) Drill/Screwdriver Socket set...
  • Page 3 PARTS LIST & FITTINGS ITEM exsploded PART NO. IMAGE DESCRIPTION / QTY. CHD1 Roof Frame Right Roof Frame Holes drilled or right CHD1.1 side to attach to Side Frame Left Roof Frame Holes drilled of the left CHD1.2 side to attach to side Frame CHD2 Side Frame...
  • Page 4 Step 1 2 people recommended Take the left Side Frame and attach it to the Back Square Frame to fit this shelter. lining it up in positions shown below using the M10x60 Bolts supplied. Step 2 Take the other Back Square Frame and attach them side to side lining up the holes in the positions shown below.
  • Page 5 Step 3 Take the Right Side Frame and attach it to the Assembely lining it up in positions shown below using the M10x60 Bolts supplied. Step 4 Take the two ouside Roof frames and loosly attach them do the Back Square Frame then line up the holes to atach it to the upper vertical Side Frames...
  • Page 6 Step 5 Do the same with the other sections but this time you are attaching it loosly to Back Square Frame and then bolting the side to thesides of each other. Step 6 FT1 feet added at this point then it can be fixed into position. Note: Add Plastic End Caps at this point, all caps should be used.
  • Page 7 NOTES:...
  • Page 8 Touch up any exposed metal should it get scratched CONTACT DETAILS: Email : sales@shelters4less.co.uk Web : www.shelters4less.co.uk Tel : 0800 160 1002 Shelters4Less, Unit 3, 2 Lansdowne Crescent, Bournemouth, BH1 1SA All Parts and Fixings checked by: Print Name: Signature:...
