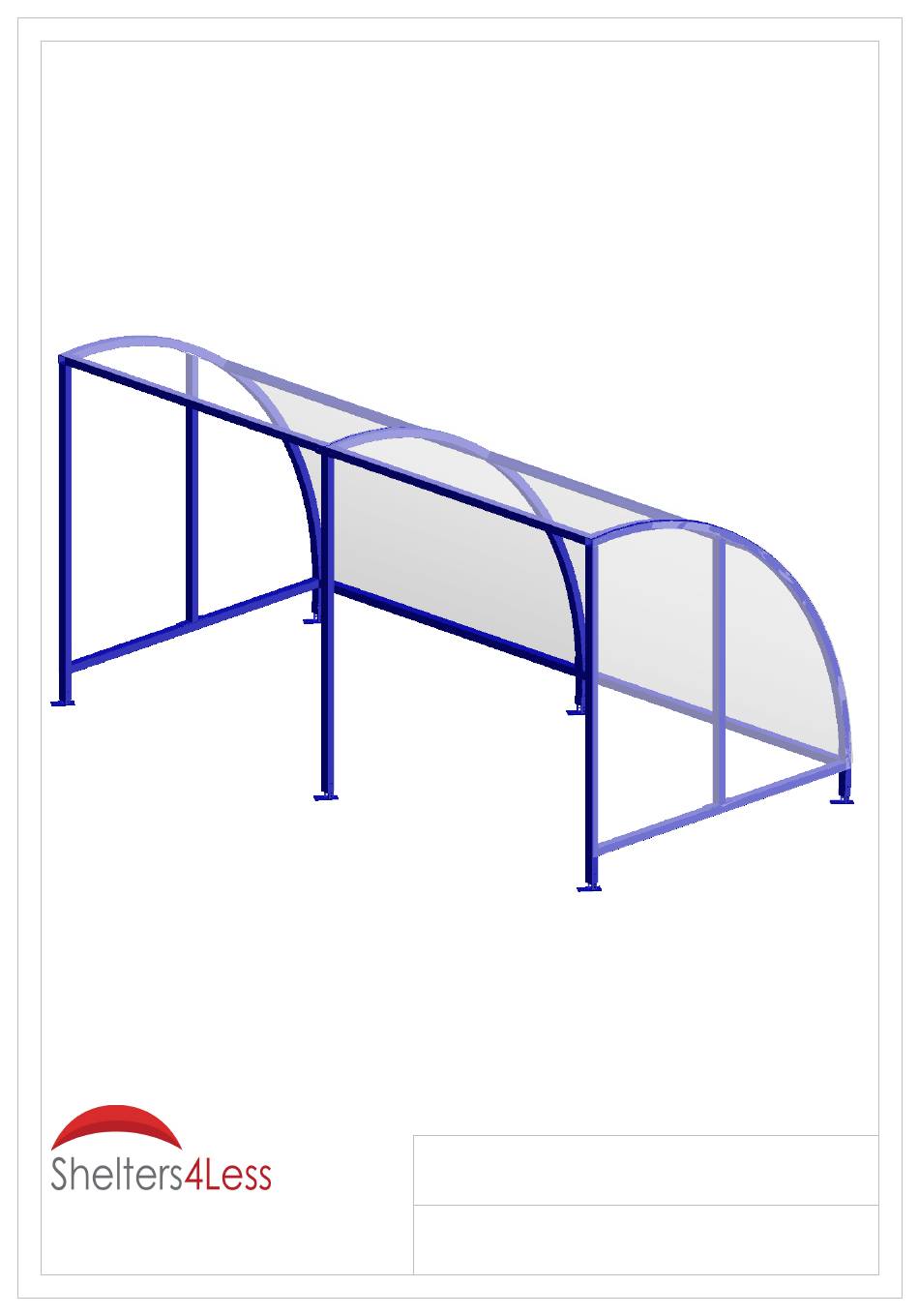

- Page 1 Assembly Instructions Shelter type: Canterbury 4m www.shelters4less.co.uk SR4500-01-16012017-S4L sales@shelters4less.co.uk 0800 160 1002...
- Page 2 Optional Extra Optional Extra Tools required: (Not supplied) Drill/Screwdriver Socket set...
- Page 3 PARTS LIST & FITTINGS ITEM PART DESCRIPTION DIMENSION (mm) IMAGE QTY. EC50 50 x 50 Plastic end cap 1975 x 990 Kimmeridge Front Frame Assembly 2115 x 985 Kimmeridge Rear Frame Assembly 1535 Kimmeridge Straight Tie Bar Assembly 1950 Central Tie Bar 1975 Front Top Tie 1330...
- Page 4 If you have received the "Split End" version (If not go straight to Step 1) Join the three frame sections to make the Complete Side Frame using M10 bolts. 2 people recommended to fit this shelter. Left End Frame Note: Shelter ends have 2 sides Left and Right. Make sure all holes are in correct position before assembling.
- Page 5 Step 2 Loosely fasten TCC Top Centre Curve to CTB Central Tie Bar, after doing this place CP Central Post under FTT Front Top Tie and bolt through all 3 parts. Step 3 Put the LCC Lower Centre Curve in place do not tighten the bolts to far as the second side will be attached here.
- Page 6 Step 4 Repeat Step 1, 2 and 3 with the opposite side of the shelter this time securing all centre bolts tightly making one complete unit. Step 5 Offer each panel to the shelter as shown below and secure in place using Tec-Screws.
- Page 7 Step 6 Finally move shelter to desired position and instert KIF Kimmeridge Internal Foot into each leg. (Note: the extra holes withing the foot is to allow adjustment on an uneven surface) Secure in Place using the Anchor Bolts supplied. Note: Minimum of 2 people to move shelter into position.
- Page 8 Touch up any exposed metal should it get scratched CONTACT DETAILS: Email : Sales@shelter4less.co.uk Web : www.shelters4less.co.uk Tel : 0800 160 1002 Shelters4Less, Unit 3, 2 Landsdowne Crescent, Bournemouth, BH1 1SA All Parts and Fixings checked by: Print Name: Signature:...
