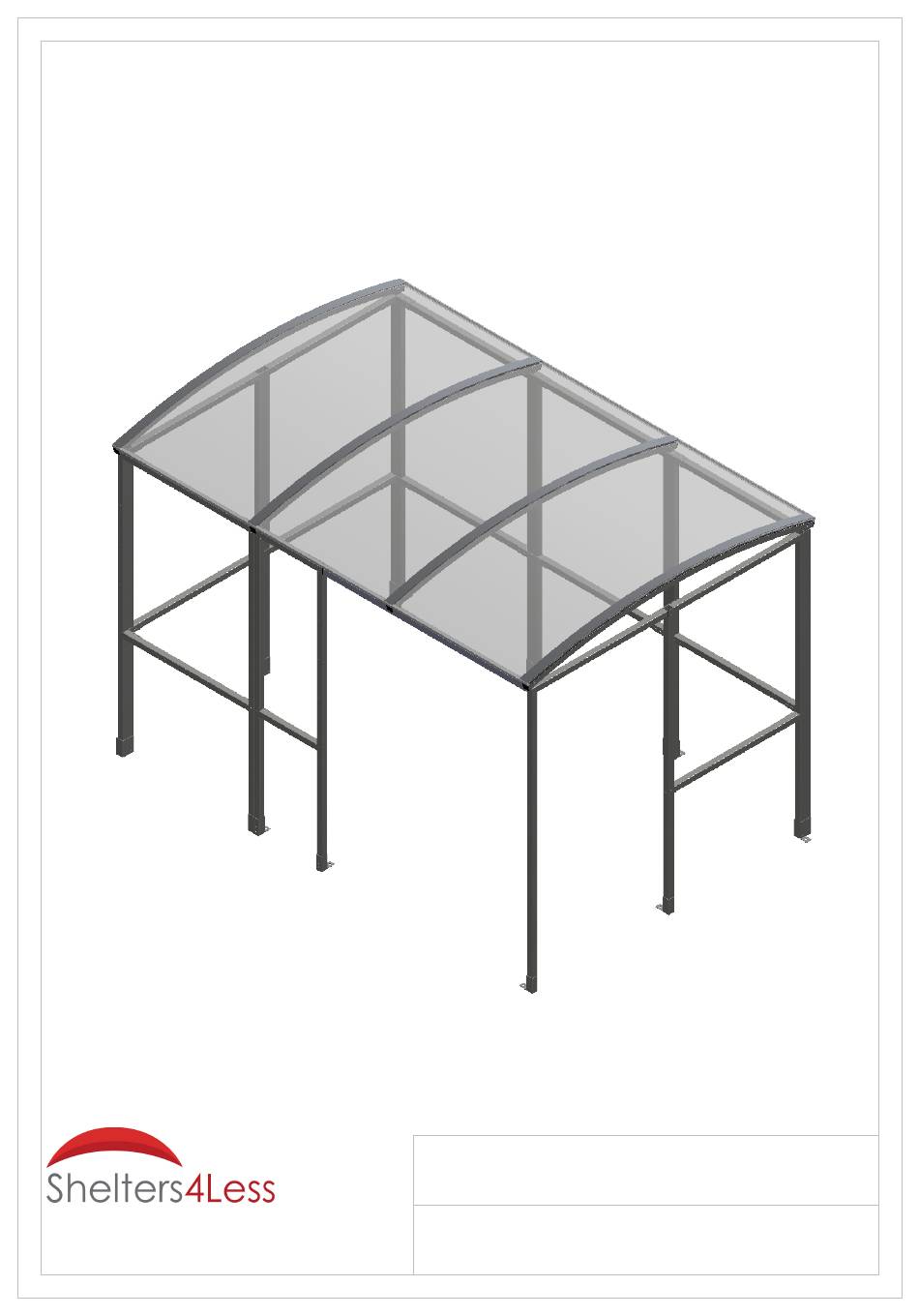

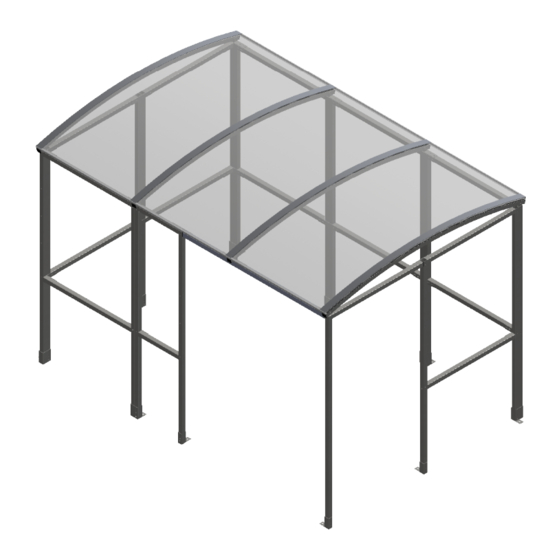

- Page 1 Assembly Instructions Shelter type: SR1555 www.shelters4less.co.uk SR1555-02-09052017-S4L sales@shelters4less.co.uk 0800 160 1002...
- Page 2 Exploded View of Shelter Tools required: Tools included: Drill/Screwdriver Wrench Mallet Torx bit Hack saw...
- Page 3 PARTS LIST AND FIXINGS ITEM PART NO. DESCRIPTION DIMENSIONS IMAGE QTY. Frame 2000x1035 Frame 2000x517 Bracket 106x110x40 Bracket 220x40 Roof Tie 2000x1035 Post 110x110x40 Foot Bracket 1109x100x40 Foot Bracket Trim To 2195 Bracket 2060x40x40 Rafter 106x110x80 Sealing Strip 110x46 3 ROLLS Roof Panel 2205x1050 PCE2...
- Page 4 Step 1 Assemble S1 frames to make up the main structure using CB1 brackets for the Corners and JF1 brackets for the straight joints. Please note 50mm Tec Screws are for roof panels only MEASURE THE WIDTH AND DEPTH OF THE SHELTER TO CHECK CORRECT ALIGNMENT.
- Page 5 Step 2 Attach P1 post using a JF1 bracket then use two JF1 brackets to attach S3 frame. The ST5 tie bar is mounted using a CB1 and a JF1 bracket. Make sure the structure is square then move the shelter to its final location before using the FT1 foot brackets to secure it to the ground.
- Page 6 Step 3 Attach R2 rafters using RB2 brackets. ENSURE CORRECT ALIGNMENT OF RAFTERS 1035 1035 1035 SIDE VIEW...
- Page 7 Step 4 Stick sealing strips (SS) to the rafters. Align the PCE2 roof panels with the outer roof rafters and equaly space the PCC2 panel in the middle. Apply more sealing strips to the top of the roof panels directly above the first strips. PCE2 PCE1 PCE2...
- Page 8 Step 5 Screw down the RC2 directly into the rafter strips as shown below, using 50mm Tech screws. Then apply the 2MD edge trim to the bottom edges of the roof panels.
- Page 9 PLAN VIEW OVERALL DIMENSIONS AND GROUND FIXING POSITIONS Suggested size for concrete base: 200mm oversized on all 4 sides. 1044.50 1035 1035...
- Page 10 Notes:...
- Page 11 Notes:...
-
Page 12: Maintenance
Touch up any exposed metal should it get scratched CONTACT DETAILS: Email : Sales@shelter4less.co.uk Web : www.shelters4less.co.uk Tel : 0800 160 1002 Shelters4Less, Unit 3, 2 Landsdowne Crescent, Bournemouth, BH1 1SA All Parts and Fixings checked by: Print Name: Signature:...
