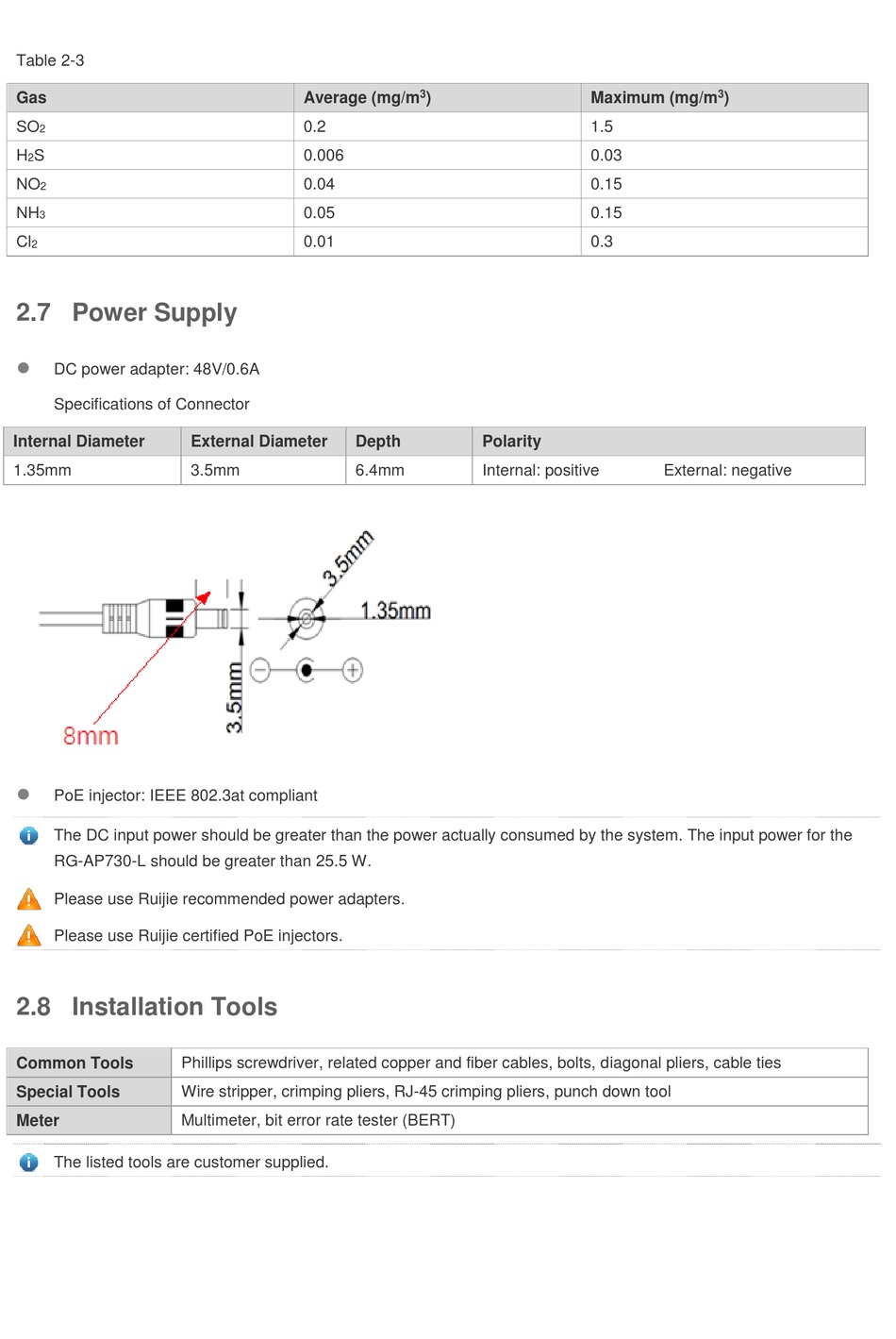

Table 2-3
Gas
SO
2
H S
2
NO
2
NH
3
Cl
2

2.7 Power Supply


DC power adapter: 48V/0.6A
Specifications of Connector
Internal Diameter
1.35mm

PoE injector: IEEE 802.3at compliant
The DC input power should be greater than the power actually consumed by the system. The input power for the
RG-AP730-L should be greater than 25.5 W.
Please use Ruijie recommended power adapters.
Please use Ruijie certified PoE injectors.

2.8 Installation Tools

Common Tools Phillips screwdriver, related copper and fiber cables, bolts, diagonal pliers, cable ties
Wire stripper, crimping pliers, RJ-45 crimping pliers, punch down tool
Special Tools
Meter Multimeter, bit error rate tester (BERT)
The listed tools are customer supplied.
Average (mg/m
0.2
0.006
0.04
0.05
0.01
External Diameter Depth
3.5mm 6.4mm
3
)
Polarity
Internal: positive
3
Maximum (mg/m )
1.5
0.03
0.15
0.15
0.3
External: negative
·
