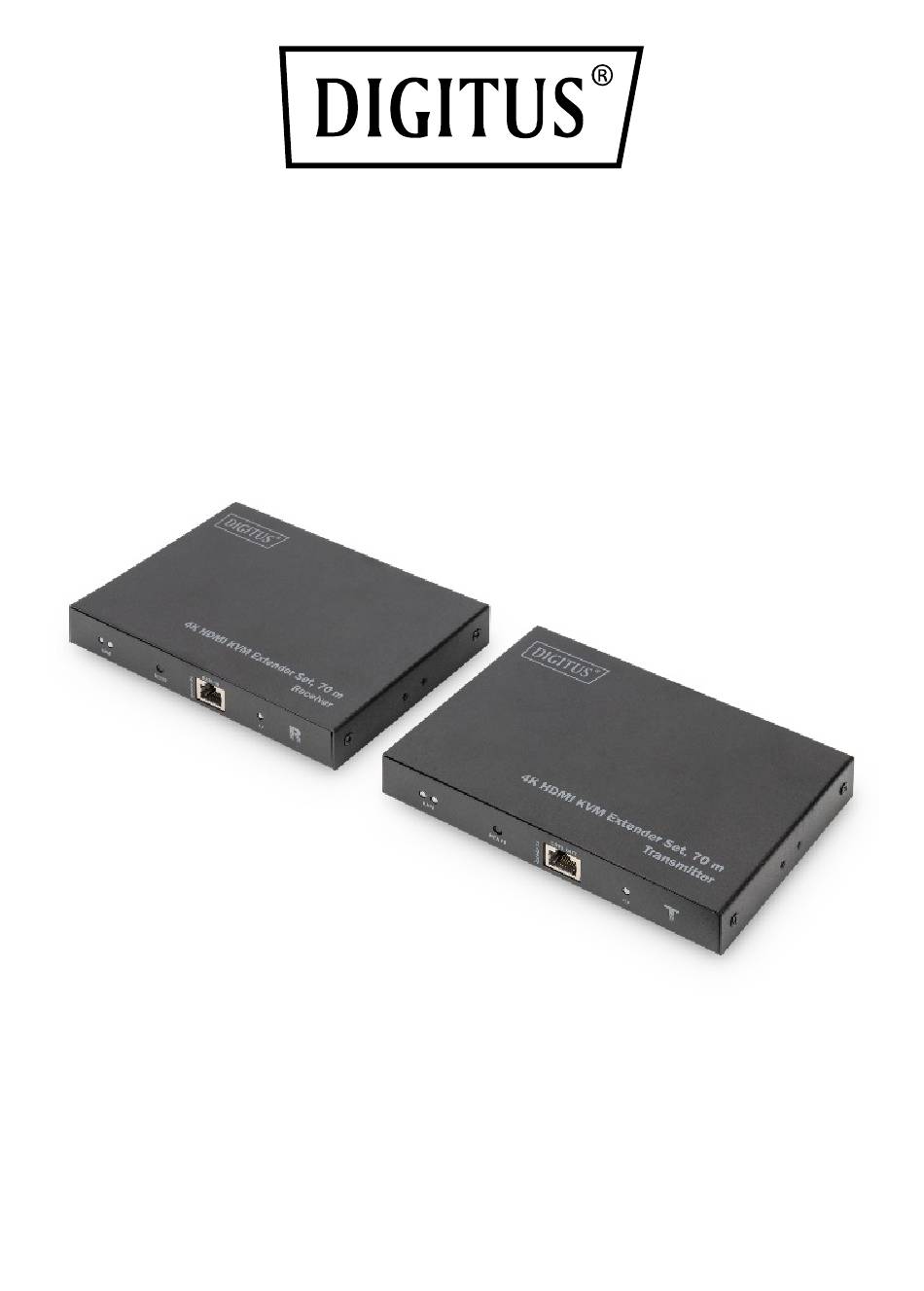

- Page 1 4K HDMI KVM Extender Set, 70 m Quick Installation Guide DS-55513...
-
Page 2: Table Of Contents
Table of Contents 1. Introduction ................3 2. Main Features ................. 3 3. Package Contents ..............3 4. Installation Procedures ............5 5. Interfaces ................5 6. Installation Requirements ............8 7. Installation Procedures ............9 8. Questions and Answers ............12 9. -
Page 3: Introduction

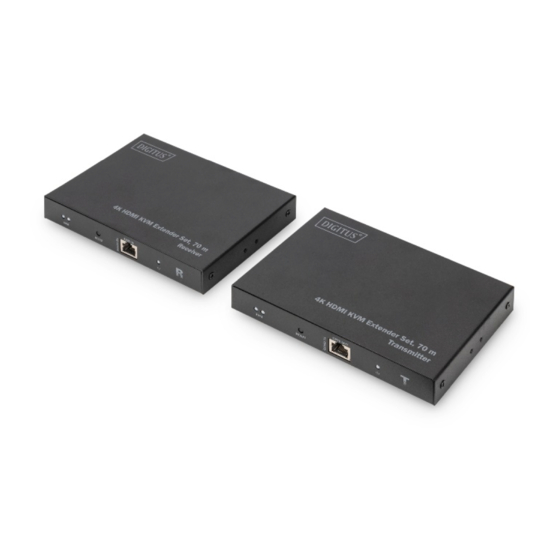

1. Introduction This HDMI Extender includes a transmitter unit and a receiver unit, allows HDMI signal to be transmitted up to 70 meters at 4K resolution using a CAT6/6A/7 network cable. It is perfect for outdoor advertising, video clips, monitor system, home entertainment, and conference, etc. - Page 4 • 1 x Receiver unit • 2 x DC 5 V / 2 A • 1 x USB cable • 4 x Mounting brackets • 18 x Screws • 1 x QIG...
-
Page 5: Installation Procedures
4. Installation Requirements HDMI source device (compute graphics card, DVD, PS3) HD monitoring equipment etc. HDMI display device like SDTV, HDTV, projector with HDMI port UTP/STP CAT6/CAT6A/CAT7 cable. Follow standard IEEE-568B, it is recommended to select a network cable with less loss and crosstalk 5. - Page 6 This is signal transmission, the indicator light flashes Reset button Press to restart the device RJ45 signal output Connect with network cable Power/ Signal When there is power and no HDMI indicator signal, the indicator will flash, when there is HDMI signal, the indicator will light solid blue DC5V-12 input Connect with DC5V-12V power...
- Page 7 2. Receiver (RX) KVM Light The mouse/keyboard/touch screen is connected to the USB port, the indicator light is on Reset button Press to restart the device RJ45 signal input Connect with network cable Power/ Signal When there is power but no HDMI indicator signal, the indicator will flash.
-
Page 8: Installation Requirements
HDMI output Connect with HDMI display device USB-A port Connect with keyboard, mouse and touch screen 6. Installation Requirements 1. Touch screen connection 2. Mouse and keyboard connection Follow the standard of IEEE-568B, It is recommended to select a network cable with less loss and crosstalk. Orange/ white Orange Green/ white... -
Page 9: Installation Procedures
7. Installation Procedures Touch screen connection HDMI IN HDMI Display Network cable Speaker... - Page 10 Capacitive Touch Screen Resistive Touch screen Mouse and keyboard connection HDMI IN HDMI Display Network cable HDMI out Speaker...
- Page 11 HDMI Display 1) Connect the source device to the HDMI in port of the transmitter with an HDMI cable, and connect the HDMI out port of the receiver to the display device with another HDMI cable 2) Connect the CAT out port of the transmitter and the CAT in port of the receiver via a network cable (CAT6/CAT6A/CAT7) 3) If using HDMI loop out, connect the display device to the HDMI OUT port of the transmitter...
-
Page 12: Questions And Answers
8. Questions and Answers Q: There is no output on screen when all connections are correct? 1) Please make sure the HDMI cables supports 4K×2K if the output signal from the source device is 4K×2K resolution 2) Please check and make sure the network cable insert to the RJ45 port well 3) Restart the transmitter or receiver by pressing the reset button Q: Black screen happened on the display/monitor? -
Page 13: Specification
9. Specification Items Specification Voltage/ DC 5V-12 V Current Power supply Power TX < 4 W; RX < 4 W consumption HDMI HDMI 2.0 compliance HDCP HDCP 2.2 compliance 480 i @ 60 Hz, 480 p @ 60 Hz, 576 i @ 50 Hz, 576 p @ 50 Hz, HDMI 720 p @ 50/60 Hz,... - Page 14 LPCM / DTS-H D / DTS-Audio Audio formats / Dolby Digital 5.1 CH Input and output TMDS 0.7 ~ 1.2 Vp-p (TMDS) signal HDMI Input and Performance output DDC 5Vp-p (TTL) And Interface signal Input cable ≤ 8m (AWG24) length Output cable ≤...
- Page 15 Material Iron Color Black TX: 348 g, Weight RX: 348 g...
- Page 16 Disclaimer The product name and brand name may be registered trademark of related manufactures. ™ and ® may be omitted on the user manual. The pictures in this user manual are just for reference. The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
