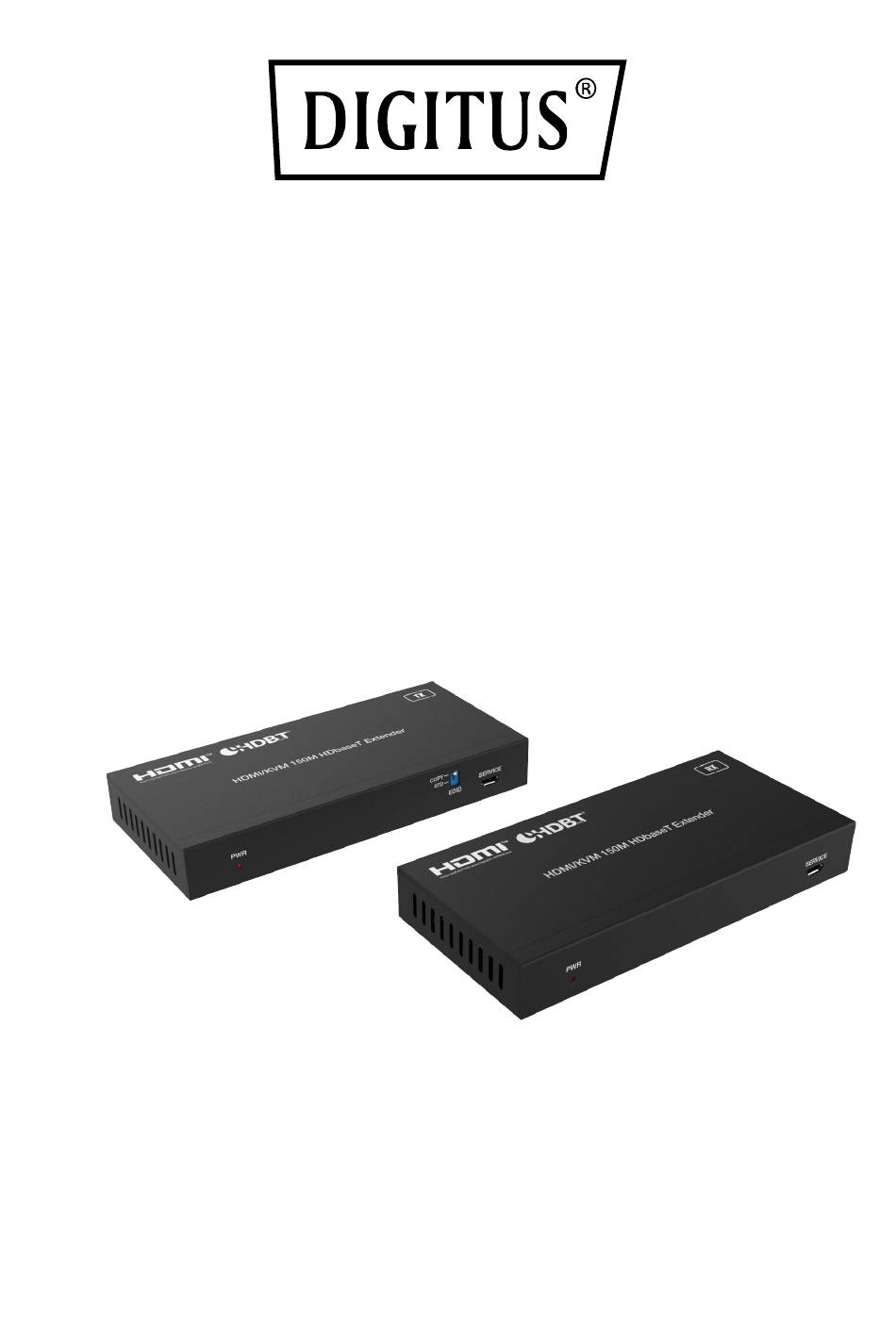

- Page 1 4K HDBaseT™ HDMI KVM Extender Set, 150 m Quick Installation Guide DS-55522...
-
Page 2: Table Of Contents
Table of Contents 1. Introduction ............3 2. Feature ..............3 3. Package Content ..........3 4. Specifications ............4 5. Product Overview ..........5 5.1 Transmitter Panel .......... 5 5.2 Receiver Panel ..........7 5.3 IR Pin Definition ..........8 6. -
Page 3: Introduction
1. Introduction The HDBaseT ™ HDMI KVM Extender Set enables uncompressed, high-resolution AV signal transmission over large distances using a CAT6 (or higher) network cable. The maximum transmission distance is 150 m. Thanks to PoC, only one unit needs to be supplied with power by an external power adapter. -
Page 4: Specifications
1x Mounting material 1x User manual 4. Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 Video Bandwidth 18Gbps Video Resolution Up to 4K2K@60Hz YUV 4:4:4 USB Compliance USB 1.1 IR Level 5Vp-p IR Frequency Wideband 20K-60KHz Transmission 1080P@60--150m, 4K60 --120m Distance... -
Page 5: Product Overview
1× IR OUT (3.5mm Stereo Mini-jack) 2× USB (USB-A, 4-pin female) Mechanical Housing Metal Enclosure Color Black Dimensions 140mm (W)×65mm (D)×18mm (H) Weight Transmitter: 246g, Receiver: 246g Power Supply DC 24V/1A; Support POC function Power Consumption Operating 0°C ~ 40°C / 32°F ~ 104°F Temperature Storage -20°C ~ 60°C / -4°F ~ 140°F... - Page 6 EDID DIP Used for EDID setting (dial to COPY by default). switch COPY: Copy the EDID of the HDMI OUT port of Receiver. STD: Default 1080P 2CH SERVICE Firmware update port. DC 24V DC 24V/1A power input port. Note that the extender supports POC function, it means that either Transmitter or Receiver is connected to 24V/1A power supply, the other doesn’t need power supply.
-
Page 7: Receiver Panel
5.2 Receiver Panel Name Function Description Power LED The power LED is on when the Receiver is powered on. SERVICE Firmware update port. DC 24V DC 24V/1A power input port. Note that the extender supports POC function, it means that either Transmitter or Receiver is connected to 24V/1A power supply, the other doesn’t need power supply. -
Page 8: Ir Pin Definition
IR IN Connect to the IR receiver cable. The IR signal will send to the IR OUT port of the Transmitter. IR OUT Connect to the IR blaster cable, the IR signal is from IR IN port of the Transmitter. USB ports Two USB-A ports, connecting to keyboard and mouse respectively. -
Page 9: Application Example
6. Application Example Transmitter Receiver Power Supply CAT6 Cable DVD or Blu-ray Player IR Receiver IR Blaster UHDTV Keyboard Mouse... - Page 10 Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address. www.assmann.com Assmann Electronic GmbH Auf dem Schüffel 3 58513 Lüdenscheid Germany...
