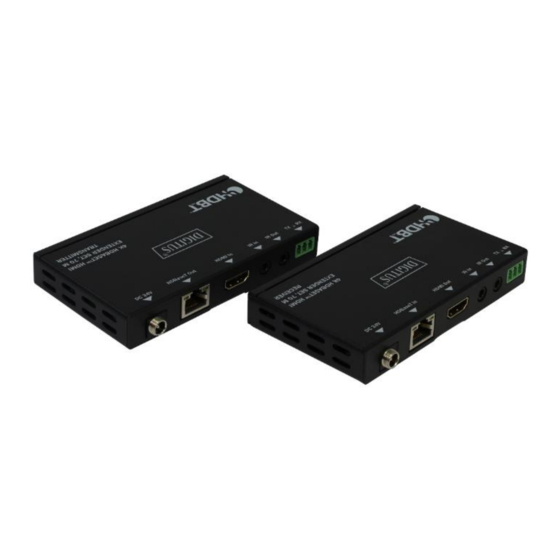

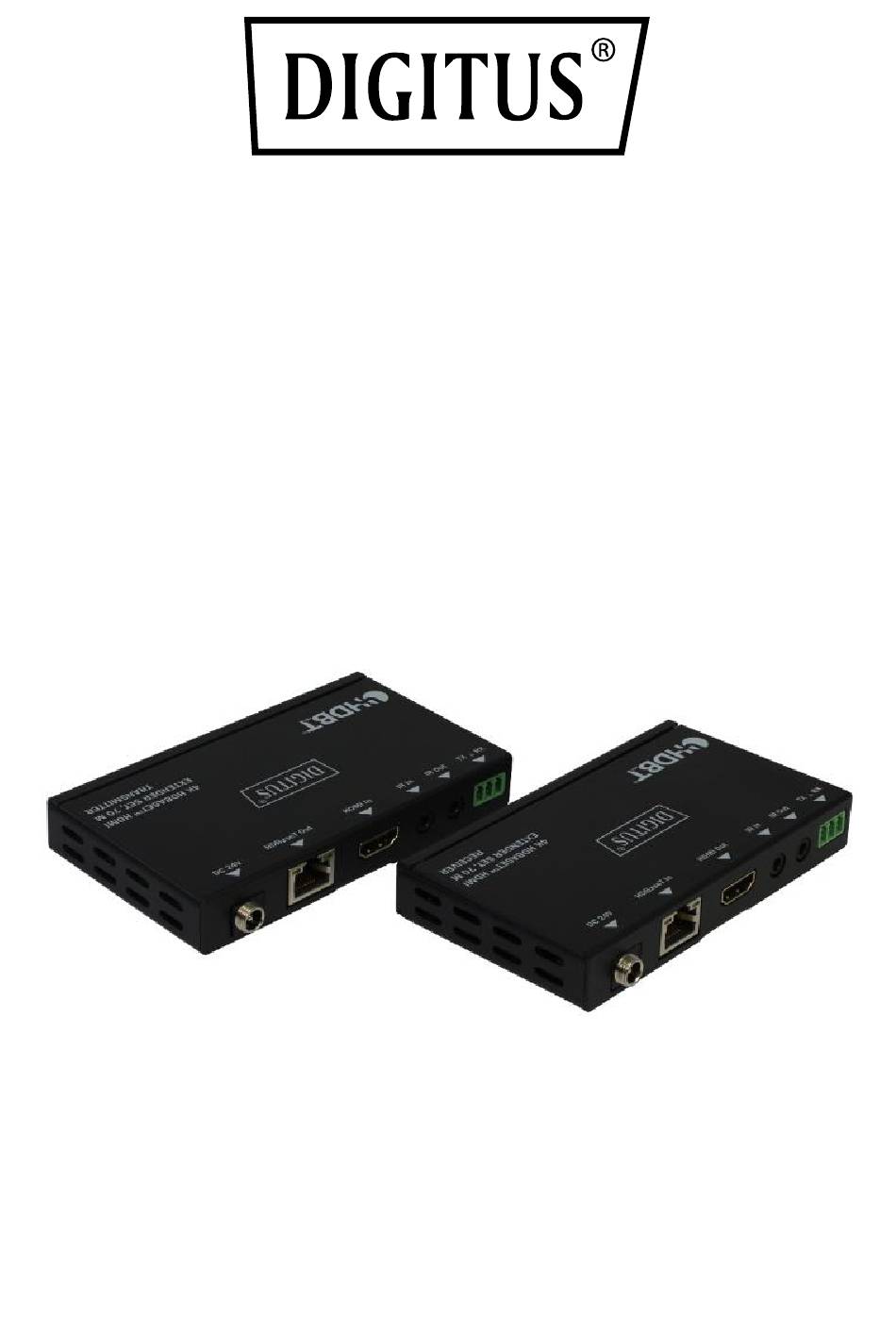

- Page 1 4K HDBaseT™ HDMI® Extender Set, 70 m Quick Installation Guide DS-55520...
- Page 2 1. Introduction The HDBaseT™ HDMI Extender Set extends Full HD AV signals over a distance of up to 70 m, 4K/30Hz signals can be extended over a distance of up to 40 m using a CAT6 (or higher) network cable. Thanks to PoC (Power over Cable), only one unit needs to be supplied with power by an external power adapter.
-
Page 3: Package Contents
Receiver unit connections: 1x HDMI output (4K/30Hz) - Connection output device 1x RJ45 input (HDBaseT™) - Connection CAT transmission cable 1x IR input to receive remote control signals 1x IR output for control of the source device 1x RS232 (3-pin Phoenix) for RS232 command transmission 1x Power adapter input (DC 24V/1A), screw connector - Connection for external power adapter ... -
Page 4: Operation Controls And Functions
Human Body Model: ± 8kV ESD Protection (air-gap discharge) ± 4kV (contact discharge) Dimensions (mm) 65(W) X 115 (D) X 17 (H) Weight 200g x 2 Operating 0°C ~ 40°C / 32°F ~ 104°F Temperature Storage -20°C ~ 60°C / -4°F ~ 140°F Temperature Relative Humidity 20~90% RH (Non-condensing) - Page 5 HDMI input port. This slot is where you HDMI IN connect the HDMI source. Channel 2 IR Receiver. Connect with IR IN Wideband IR Rx. Channel 1 IR Transmitter. Connect with IR OUT Wideband IR Tx. Phoenix jack provide Serial port control RS232 signal from receiver or to receiver.
- Page 6 Standard HD BaseT signal input port. HD BaseT Connect HD BaseT transmitter with a UTP cable following the standard of direct interconnection method. HDMI output port. This slot is where you HDMI OUT connect the HDTV or monitor with HDMI cable.
- Page 7 1. Description 1 POC (Power over Cable) Application Example 2. Description 2 Bidirectional Infrared control Application Example 3. Description 3 Bidirectional RS232 control Application Example...
-
Page 8: Application Example
6. Application Example DVD or Blu-ray Player IR RX Power Supply IR TX RS-232 Equipped HDMI Matrix RS-232 Equipped PC or Notebook Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address.
