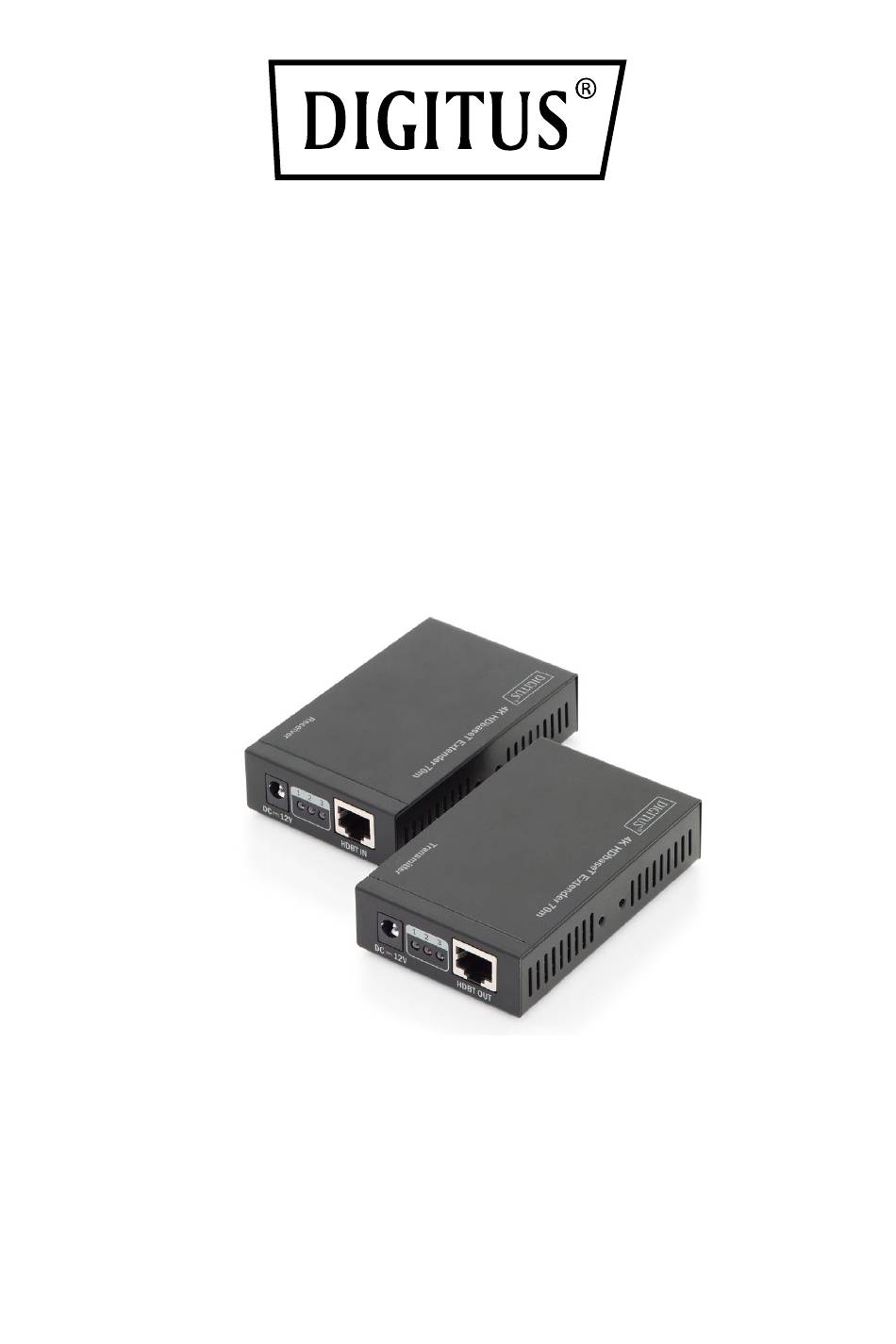

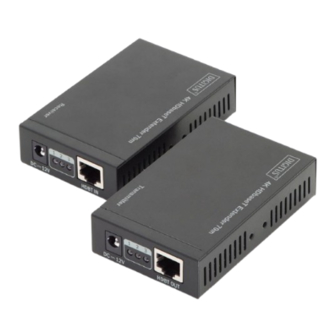

- Page 1 4K HDMI Extender Set, HDBaseT™, 4K/30Hz, 70 m Quick Installation Guide DS-55500 Rev.3...
- Page 2 Table of Contents Introduction ................. 3 Product Features ..............3 Package Content ..............3 Specification ................ 4 Penal Description ..............5 Connection ................6 Installation Requirements ........... 7 Troubleshooting ..............7 Important Safety Instructions: Please read below safety instructions carefully before installation and operation: Please pay attention to all the warnings and hints on this •...
- Page 3 1. Introduction The DIGITUS 4K extender set, HDBaseT™ offers an extender solution up to 70m for the highest demands - for both high- definition graphic display and also for absolutely fluent video playback. It transmits digital and audio signals up to a maximum distance of up to 70m.
- Page 4 4. Specification Items Specifications 70m HDBaseT™ Extender 4Kx2K, compatible with HDCP, support CEC and HDMI signal 24bits deep color Resolution 480i/480P/576i/576P/720P/1080i/1080P/ Supported 3D/4Kx2K Audio LPCM, DTS Digital, Dolby Digital Network cable CAT5E/CAT6/CAT6A/CAT7 UP to 1080P@60Hz 36bpp CAT5E/ 1080p@60Hz 48bpp, CAT6 1080p@60Hz 3D, 4Kx2K@ 30Hz/60Hz video formats Transmission...
- Page 5 5. Penal Description HDMI to HDBaseT™ TX Sender HDMI IN: HDMI signal input to connect with HDMI source ① device. IR IN: IR signal input to connect with IR receiver extension ② cable. IR OUT: IR signal output to connect with IR blaster ③...
- Page 6 LED indicators working status It is lighting on with power on. ① It is lighting on when TX and RX are well connected. ② It is lighting on when RX's HDMI OUT connects with HDMI ③ display device and has HDMI signal output. 6.
- Page 7 IR receiver extension cable with IR IN of TX and connect IR blaster extension cable with IR OUT of RX. 7. Installation Requirements 1. HDMI source device 2. HDMI display 3. Network cables: UTP/STP Cat5e/Cat6/Cat6A/Cat7 network cables are following the standard of 8.
- Page 8 is not good good quality HDMI 1.4 enough or not standard HDMI cable or connecting well UTP (CAT5e/CAT6 or higher is recommended) cable will solve the issue. This is a Class A product. In home environment, this product may cause radio interference. In this case, the user may be required to take appropriate measures.
