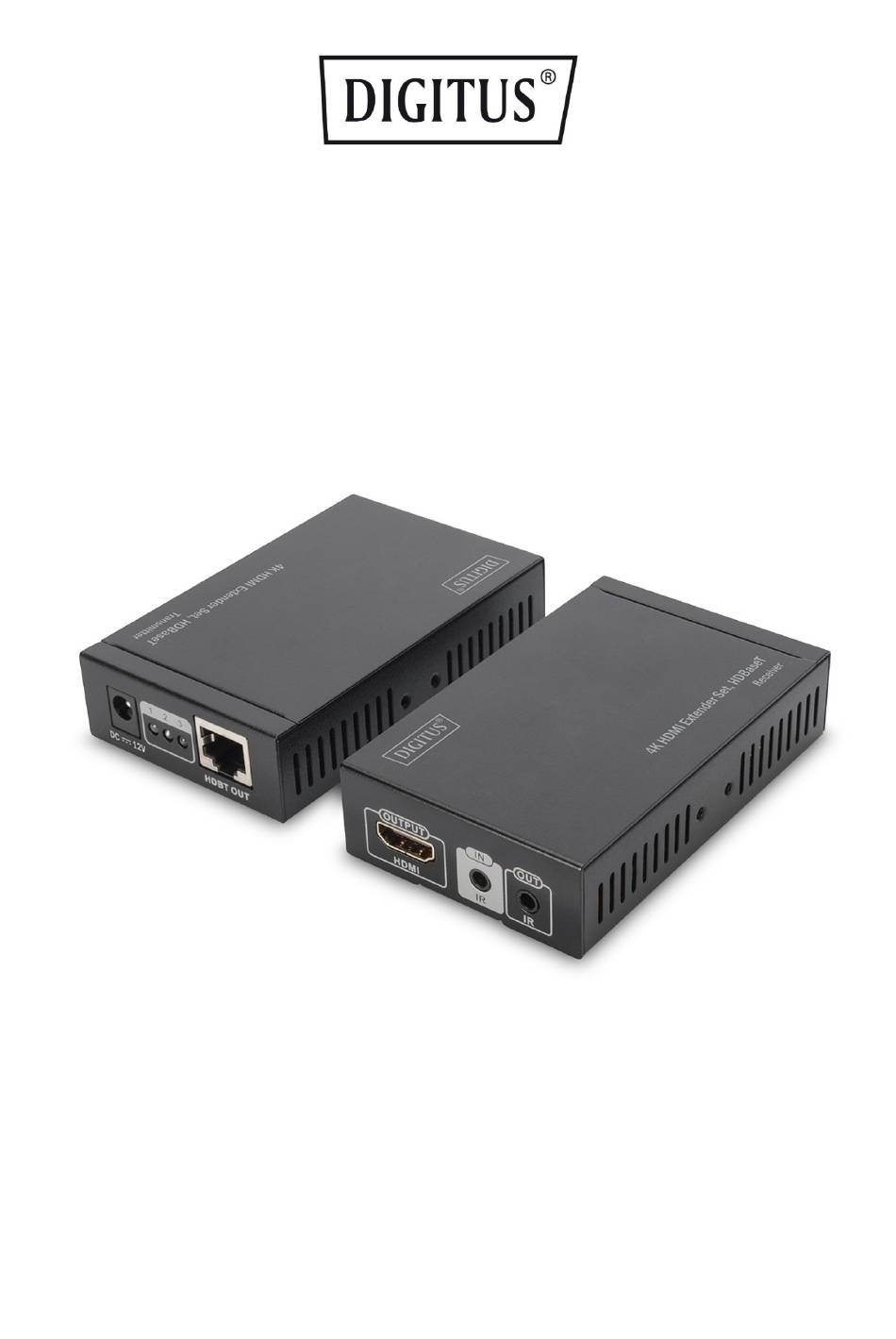

- Page 1 4K HDMI Extender Set, HDBaseT™ Manual DS-55501 Rev. 2...
- Page 2 The Digitus 4K Extender Set, HDBaseT™ offers an extender solution up to 100 m for the highest demands - for both high definition graphic display and also for absolutely fluent video playback. It is used to transmit digital and audio signals to a maximum distance of up to 100 m.
- Page 3 Specification Items Specifications HDMI signal 4Kx2K, compatible with HDCP, support CEC and 24bits deep color Resolution Supported 480i/480P/576i/576P/720P/1080i/1080P/3D/4Kx2K Audio LPCM, DTS Digital, Dolby Digital Network cable CAT5E, CAT6, CAT6A, CAT7 Transmission length CAT5E/CAT6 100m UP to 1080P@60Hz 36bpp 1080p@60Hz 48bpp 1080p@60Hz 3D, CAT6A/CAT7 100m...
- Page 4 Installation Requirements HDMI source devices: with HDMI OUTPUT interface, DVD, PS3, STB, PC etc. Display devices: With HDMI INPUT port, SDTV, HDTV, projector Network cables: UTP/STP Cat5e/Cat6/Cat6A/Cat7 network cables, which following the standard of IEEE-568B. Panel description 1.
- Page 5 3. LED indicators working status It is lighting on with power on 1) When the sender connect the receiver working normal, the No2 lamp flashing status, and when input signal transmission normal the lighting keeps on. 2) It is lighting on when RX and display are well connected. Installation procedures 1.
- Page 6 3. Bi-directional IR pass back 1) It supports bi-directional IR pass back. User can control DVD at TX end and control TV at RX end. 2) If control at RX end, please connect IR blaster extension cable with IR OUT of TX and connect IR receiver extension cable with IR IN of RX.
