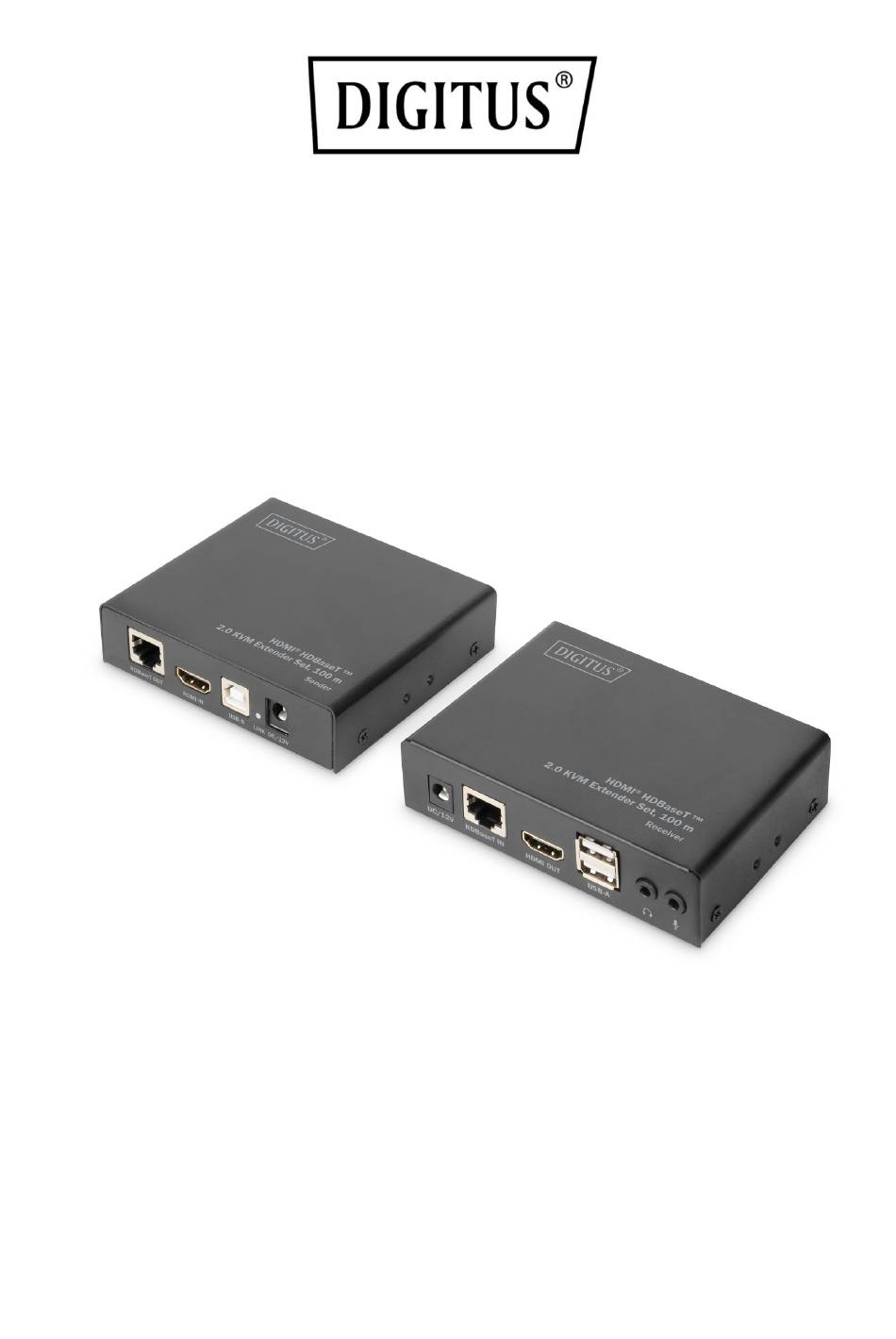

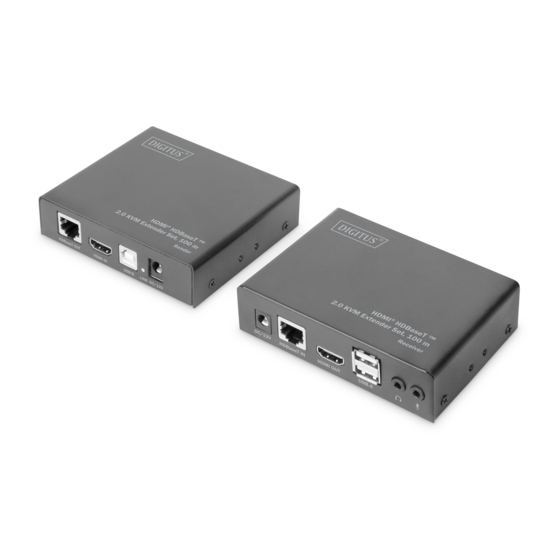

- Page 1 HDMI® HDBaseT™ 2.0 KVM EXTENDER SET, 100 m Manual DS-55505...
- Page 2 Introduction With the DIGITUS® HDMI® HDBaseT™ 2.0 KVM Extender Set, you can control your source device at a distance of up to 100 meters using a single CAT5e/6/7/8 cable connection with uncompressed 4K-HDMI® video content and access to up to 6 connected USB devices.
- Page 3 Ports and Interfaces RX (Receiver) TX (Sender) Front: Back:...
- Page 4 DC 12V: DC 12V In HDBaseT IN: Standard HDBaseT Signal Input Port. Connect HDBaseT Receiver with a Cat5e/6/7 Cable. HDMI OUT: Connect to an HDMI Equipped TV/monitor USB Type A: Connect to USB peripheral devices such as printer, keyboard, mouse, U-disk etc. Earphone: Connect to Stereo Audio output Device Microphone: Connect to Microphone Audio input Device HDBaseT OUT: Standard HDBaseT Signal Output Port.
- Page 5 Connection Diagram Adapter PC or DVD or Laptop ①. ⑥. Adapter ②. ⑦. Keyboard ③. Audio ④. ⑤. Mouse ⑧. Camera ⑨.
- Page 6 Specification Inputs HDMI® , 1 x USB B Outputs HDMI® , 6 x USB A HDMI® bandwidth 10.2 Gbps HDCP version HDMI version Color depth 36-bit total (12-bit per channel) Uses HDBaseT™ 2.0 technology (VS2310) Support Supports Full 3D, 1080p, 4K@30/60Hz ...
- Page 7 This is a Class A product. In home environment, this product may cause radio interference. In this case, the user may be required to take appropriate measures. Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content.
