Summary of Contents for Digitus DS-55529

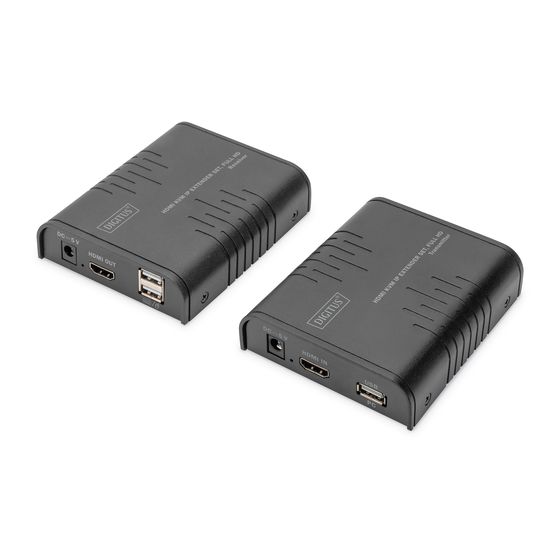

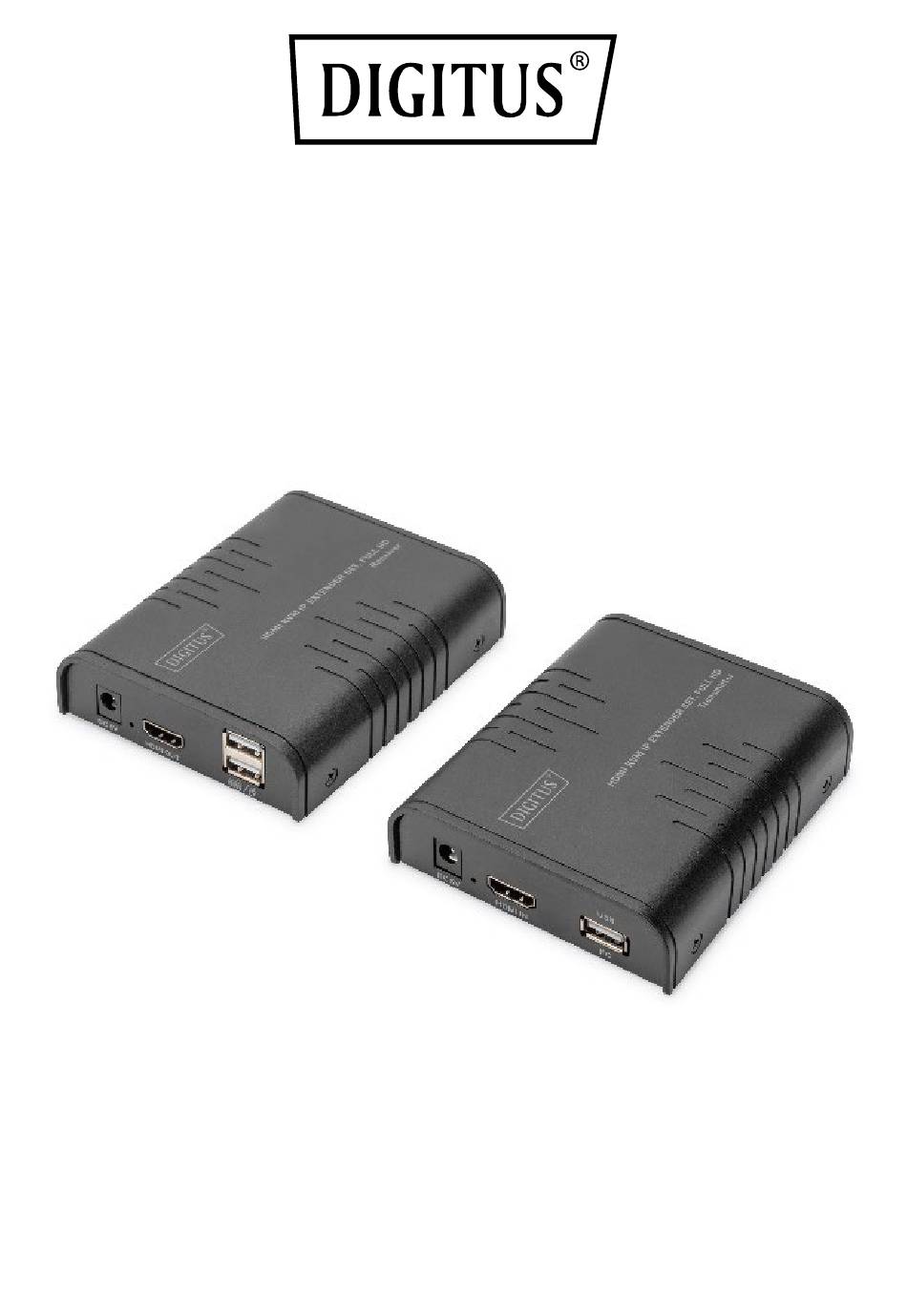

- Page 1 HDMI KVM IP Extender Set, Full HD Quick Installation Guide DS-55529 DS-55530...
-
Page 2: Table Of Contents
Table of Contents Introduction ..........2 Features ............. 2 Package Content ........3 Installation Requirements ......3 Panel Introduction ........4 Installation Procedures ......6 One-to-one Connection......7 One-to-many Connection ......8 Switch Connection ........9 10. FAQ ............10 11. -
Page 3: Introduction
1. Introduction The Digitus HDMI KVM IP Extender Set is made up of a transmitter unit (local site) and a receiver unit (remote site). The HDMI signal can be extended up to 120 meters via network cable and the resolution supported is up to 1080p@60Hz. It... -
Page 4: Package Content
Supports KVM function • Aluminium alloy casing, stable and durable • Lightning Protection, Surge Protection, ESD • Protection 3. Package Content 1x HDMI KVM IP Extender Transmitter Unit • 1x HDMI KVM IP Extender Receiver Unit • 1x USB Cable •... -
Page 5: Panel Introduction
5. Panel Introduction HDMI KVM IP Extender Transmitter Unit The indicator will turn Power indicator ① blue when power up The indicator will turn orange when the USB port KVM indicator ② connect to the PC successfully LAN signal Output modulated HDMI ③... - Page 6 HDMI KVM IP Extender Receiver Unit The indicator will turn Power indicator ① blue when power up When the KVM function is KVM indicator ② usable, it will turn orange Press the button to enable the KVM function KVM switch ③...
-
Page 7: Installation Procedures
Connect with keyboard USB port ⑧ and mouse 6. Installation Procedures • How to work with a CAT 5e/6 network cable: Follow the standard of IEEE-568B: 1: Orange/White 2: Orange 3: Green/White 4: Blue 5: Blue/White 6: Green 7: Brown/White 8: Brown •... -
Page 8: One-To-One Connection
Vista, Windows Vista x64, Windows Server 2003, Windows XP, Windows XP-x64, Windows 2000, Windows ME, Windows 98SE, Windows 8, Windows 10, Windows 11 • General connection Transmission distance can be up to 120 m for 1080p over one CAT 6 7. -
Page 9: One-To-Many Connection
8. One-to-many Connection HDMI HDMI By using a network router/switch, one transmitter to several receivers, realize extender and splitter function. 1: PC 5: Receiver Unit 2: Transmitter Unit 6: Keyboard + Mouse 3: Network Cable 7: TV 4: Switch... -
Page 10: Switch Connection
9. Switch Connection By using a network router/switch, realize unlimited extension. 1: PC 5: Router 2: Transmitter Unit 6: Receiver Unit 3: Network Cable 7: Keyboard + Mouse 4: Switch 8: TV Note: The transmission distance depends on the type of network cable. CAT 5: 80m, CAT 5e: 100 m, CAT 6: 120m... -
Page 11: Faq
It is recommended that Gigabit Ethernet switches be used in LAN. Fast Ethernet switches (100 Mbps) and Gigabit Ethernet Switches (1000 Mbps) cannot be mixed-use in cascade. 10. FAQ Q: How to use the KVM function in one-to- many connection? A: Press the KVM switch of the receiver you want to use, and then the keyboard and the mouse which connect to that USB port of the... -
Page 12: Specifications
Q: Yellow Led light of Lan port is not light? A: 1) Check and make sure all the cables are connected well. 2) Try again with shorten network cable. Q: Abnormal color display or flashing after all the devices are well connected? A: 1) Please press reset button of HDMI extender. - Page 13 HDMI resolution 640 x 480@60Hz supported 800 x 600@60Hz 1024 x 768@60Hz 1280 x 720@60Hz 1360 x 768@60Hz 1440 x 900@60Hz 1400 x 1050@60Hz 1680 x 1050@60Hz 1920 x 1080@60Hz Audio support PCM (44.1 KHz, 48 KHz) HDMI connector Type A, 19 Pin, Female LAN connector RJ45 Operation...
- Page 14 Weight TX: 240g, RX: 240g Color Black This is a Class A product. In home environment, this product may cause radio interference. In this case, the user may be required to take appropriate measures. Hereby ASSMANN Electronic GmbH declares that the Declaration of Conformity is part of the shipping content.
