Summary of Contents for Digitus DS-55506

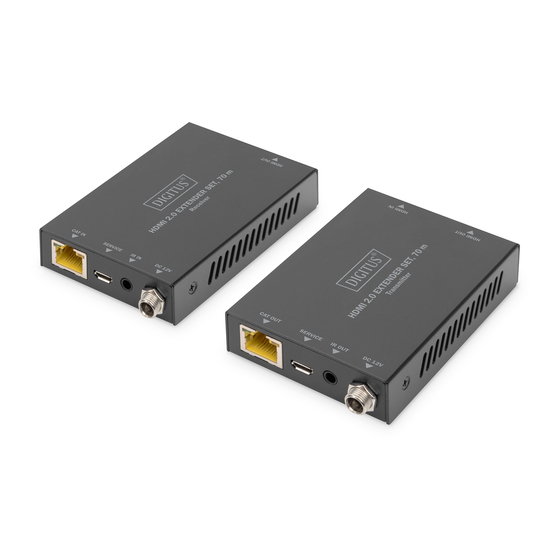

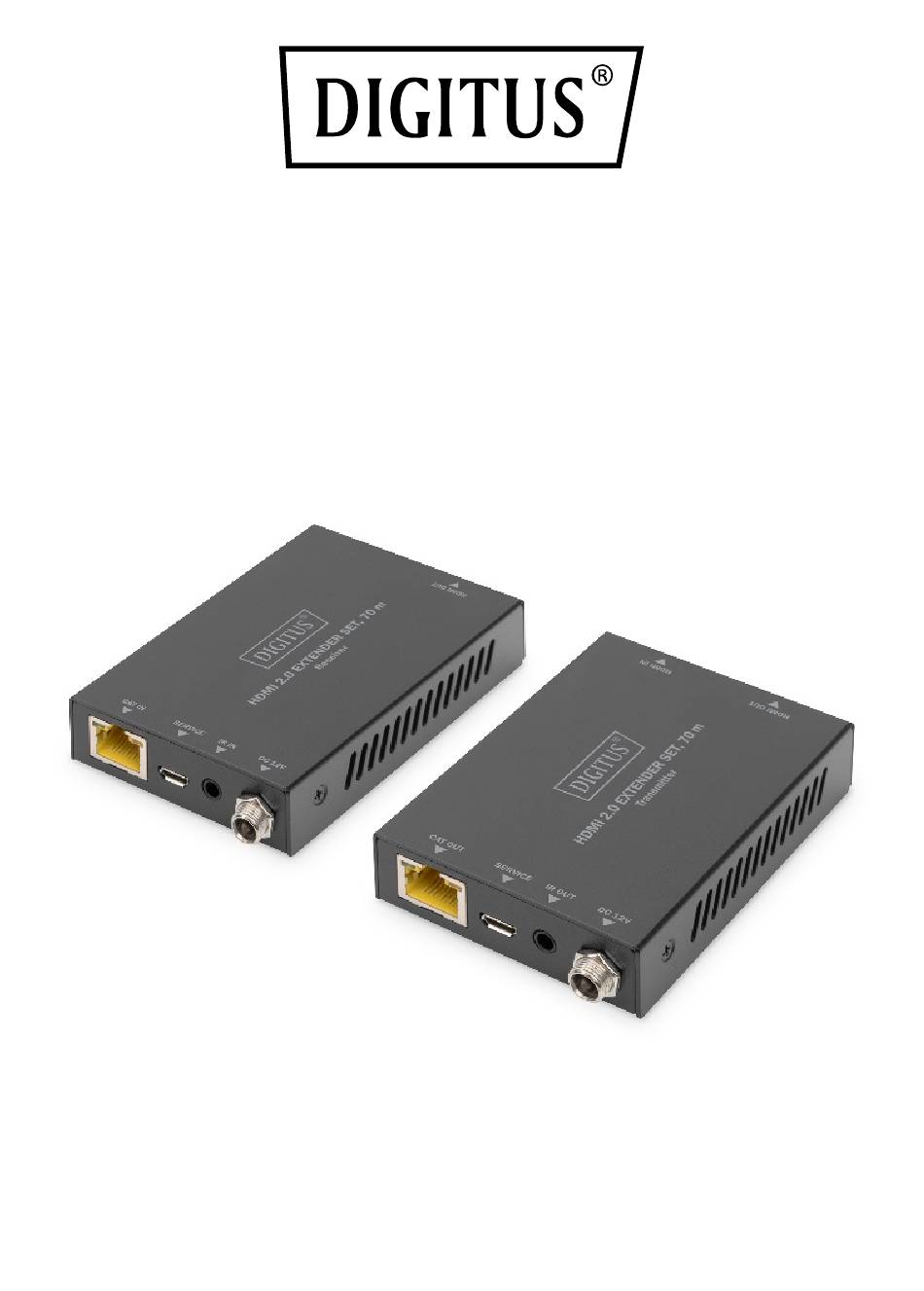

- Page 1 HDMI Extender Set, 4K/60Hz, 70 m Manual DS-55506...
-
Page 2: Table Of Contents
6. Application Example .............. 10 1. Introduction The DIGITUS HDMI Extender Set enables HDMI signal transmission over a distance of up to 70 m (4K/30Hz). The extender set supports UHD resolution (4K2K/60 Hz, 4:4:4, 18 Gbps) over a CAT 6/7/8 cable (60m distance). -
Page 3: Main Features
2. Main Features • HDMI 2.0 • Supports Cat5e, CAT 6, CAT 6A, CAT 7, CAT 8 network cable 18 Gbps video bandwidth • Supports 4K2K/60 Hz, 4:4:4 • HDCP 2.2 / 1.4 • Maximum transmission distance: 70 m • •... -
Page 4: Specification
4. Specification Technical HDMI Compliance HDMI 2.0 HDCP Compliance HDCP 2.2 / HDCP 1.4 Video Bandwidth 18Gbps Video Resolution Up to 4K60Hz 4:4:4 Color Space RGB / YCbCr 4:4:4, YCbCr 4:2:2/4:2:0, YUV 4:4:4 Color Depth 8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr 4:2:2/4:2:0) 8-bit (4K60Hz 4:4:4 ) HDMI Audio LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital,... -
Page 5: Operating Controls And Functions
Mechanical Housing Metal Enclosure Color Black Dimensions Transmitter / Receiver: 61mm [W] x 88mm [D] x 18mm [H] Weight Transmitter: 160g, Receiver: 155g Power Supply Input: AC 100 - 240V 50/60Hz Output: DC 12V/1A Power Consumption 3.84 W Operating 32 - 104°F / 0 - 40°C Temperature Storage -4 - 140°F / -20 - 60°C... - Page 6 Name Function description HDMI OUT HDMI loop output port, connect to HDMI display device such as TV or Projector with an HDMI cable. HDMI IN HDMI input port, connect to HDMI source device such as DVD or PS4 player with an HDMI cable CAT OUT Connect to CAT IN port on the receiving end with a CAT6 cable.
-
Page 7: Receiver Panel
5.2 Receiver Panel Name Function description HDMI OUT HDMI output port, connect to HDMI display device such as TV or Projector with an HDMI cable CAT IN Connect to CAT OUT port on the transmitter end with a CAT6 cable. Power Indicator Connect to CAT IN port on the receiving Lamp (Green) -
Page 8: Ir Pin Definition
5.3 IR Pin Definition IR Receiver and Blaster pin’s definition as below: IR RECEIVER IR BLASTER IR Blaster IR Blaster Signal Power IR Receiver IR Signal Power Grounding... - Page 9 The following is IR system diagram about IR cable use method. IR receiver cable IR blaster cable DVD remote CAT 5e/6 cable Note: IR remote sends signal distance for 0~5meters / 0~8 meters, and angle is plus-minus45 degrees / vertical direction...
-
Page 10: Application Example
6. Application Example... - Page 11 Transmitter CAT 5e/6 Receiver IR blaster UHDTV Power Supply DVD or Blu-ray Player IR Extender Disclaimer The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. Hereby ASSMANN Electronic GmbH declares that the Declaration of Conformity is part of the shipping content.
