Digitus DS-55508 Manual

Digitus DS-55508 Manual

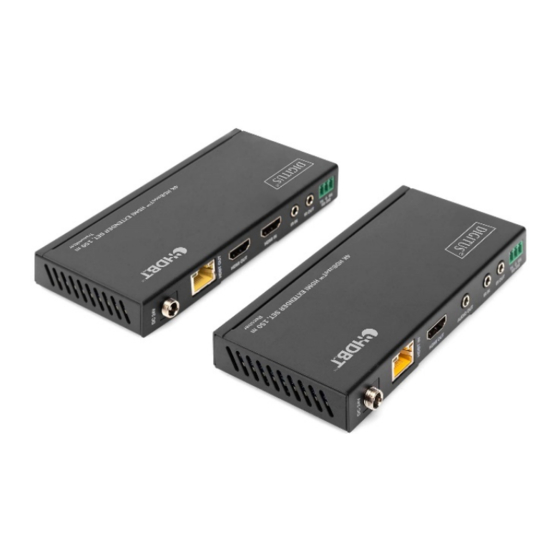

4k hdbaset hdmi extender set, 150 m
Hide thumbs Also See for DS-55508:

Advertisement

Quick Links

4K HDBaseT™ HDMI
Extender Set, 150 m
Manual
DS-55508

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-55508 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Digitus DS-55508

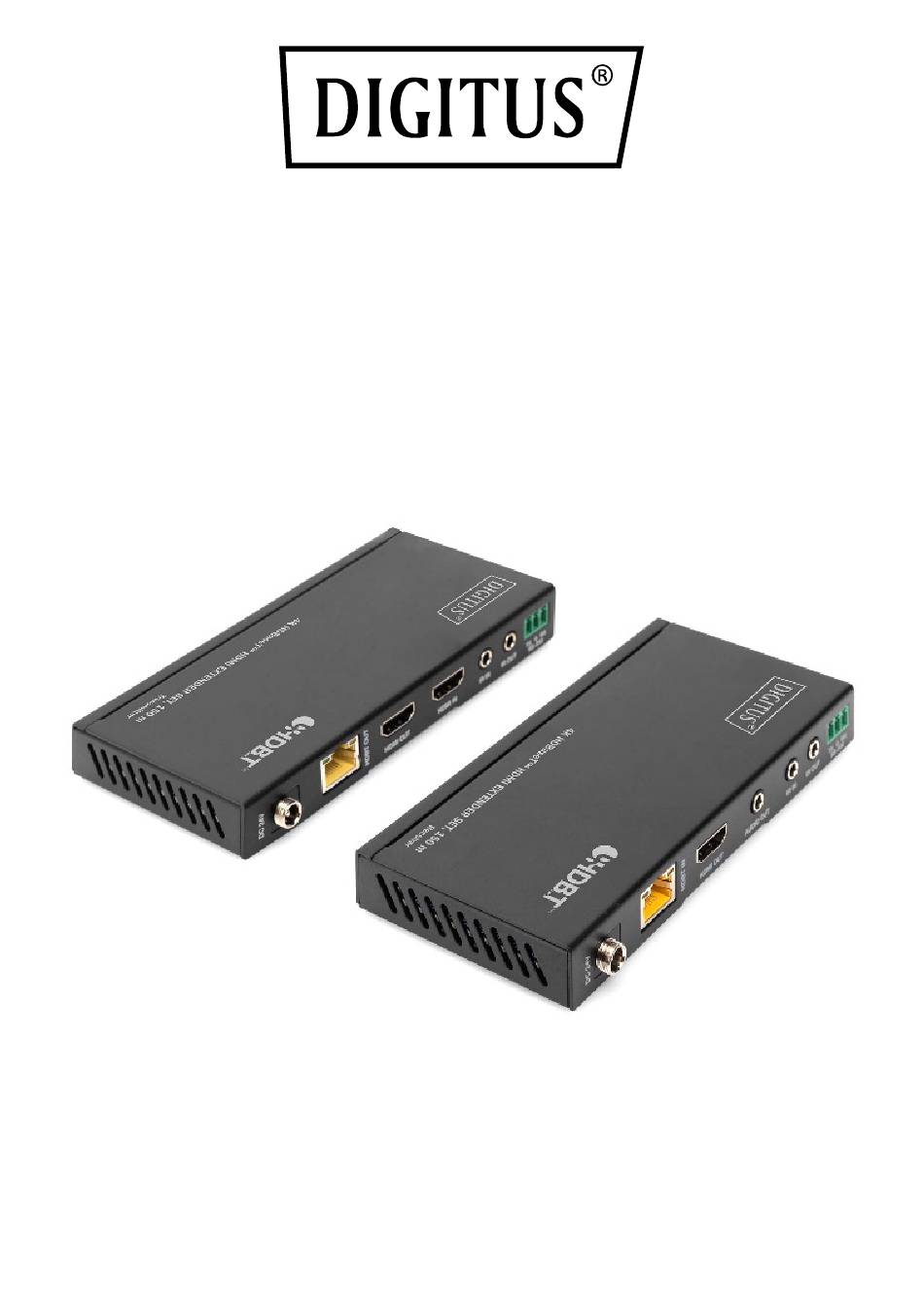

  • Page 1 4K HDBaseT™ HDMI Extender Set, 150 m Manual DS-55508...
  • Page 2: Table Of Contents

    Table of Contents 1. Introduction ................2 2. Main Features ................. 3 3. Package Contents ..............3 4. Specification ................4 5. Operating Controls and Functions ..........6 5.1 Transmitter Panel..............6 5.2 Receiver Panel ................ 8 5.3 IR Pin Definition ..............9 6.
  • Page 3: Main Features

    2. Main Features Supports HDBaseT™ 1.0 via CAT5e/6/7/8 cable up to 150 m • Supports 4K2K/60Hz (4:4:4) • Maximum transmission distance (UHD 4K2K): 120 m • Maximum transmission distance (Full HD 1080p): 150 m • • Video bandwidth: 18 Gbps •...
  • Page 4: Specification

    4. Specification Technical HDCP Compliance HDCP 2.2 / HDCP 1.4 Video Bandwidth 18Gbps Video Resolution 4K2K 50/60Hz 4:4:4 4K2K 50/60Hz 4:2:2 4K2K 50/60Hz 4:2:0 4K2K 30Hz 4:4:4 1080p, 1080i, 720p, 720i, 480p, 480i All HDMI 3D TV formats All PC resolutions including 1920 x 1200 Color Space RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0...
  • Page 5 Connections Transmitter Inputs: 1x HDMI Type A [19-pin female] Outputs: 1x HDMI Type A [19-pin female] 1x HDBT OUT [RJ45, 8-pin female] Control: 1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-jack] 1x RS-232 [Phoenix jack] 1x SERVICE [Mini-USB, Update port] Receiver Inputs: 1x HDBT IN [RJ45, 8-pin female] Outputs: 1x HDMI Type A [19-pin female]...
  • Page 6: Operating Controls And Functions

    Resolution / Distance 4K2K 394ft / 120M 1080P 492ft / 150M Resolution / 4K60 - 4K30 - 1080P60 - Cable Length Feet / Meters Feet / Meters Feet / Meters HDMI IN / OUT 16ft / 5M 32ft / 10M 50ft / 15M The use of “Premium High Speed HDMI”...
  • Page 7 DC 24V DC 24V/1A power supply input port. Note that the extender supports PoC function, it means that either transmitter or receiver is powered on by 24V/1A power adapter, the other one doesn’t need power supply HDBT OUT RJ45 connector for connecting the HDBT IN port of receiver with a CAT 5e/6 cable Connection...
  • Page 8: Receiver Panel

    5.2 Receiver Panel Name Function description Power LED Red LED indicates that the receiver is powered on SERVICE port Firmware update port DC 24V DC 24V/1A power supply input port. Note that the extender supports PoC function, it means that either transmitter or receiver is powered on by 24V/1A power adapter, the other one doesn’t need power supply HDBT IN...
  • Page 9: Ir Pin Definition

    HDMI OUT HDMI output for display AUDIO OUT 3.5mm stereo connector for analog audio output 5.3 IR Pin Definition IR Receiver and Blaster pin’s definition is as below: IR RECEIVER IR BLASTER IR Blaster IR Blaster Signal Power IR Receiver IR Signal Power Grounding...
  • Page 10 The following is IR system diagram about IR cable use method. Transmitter TV remote IR Blaster cable IR Receiver cable CAT 5e/6 cable DVD remote Receiver Note: When the angle between the IR receiver and the remote control is ± 45°, the transmission distance is 0-5 meters; when the angle between the IR receiver and the remote control is ±...
  • Page 11: Application Example

    6. Application Example...
  • Page 12 Transmitter Controller Receiver UHDTV Power Supply IR Blaster CAT 5e/6 cable IR Receiver DVD or Blu-ray Player 2.0 Speaker Disclaimer The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. HDBaseT™...
