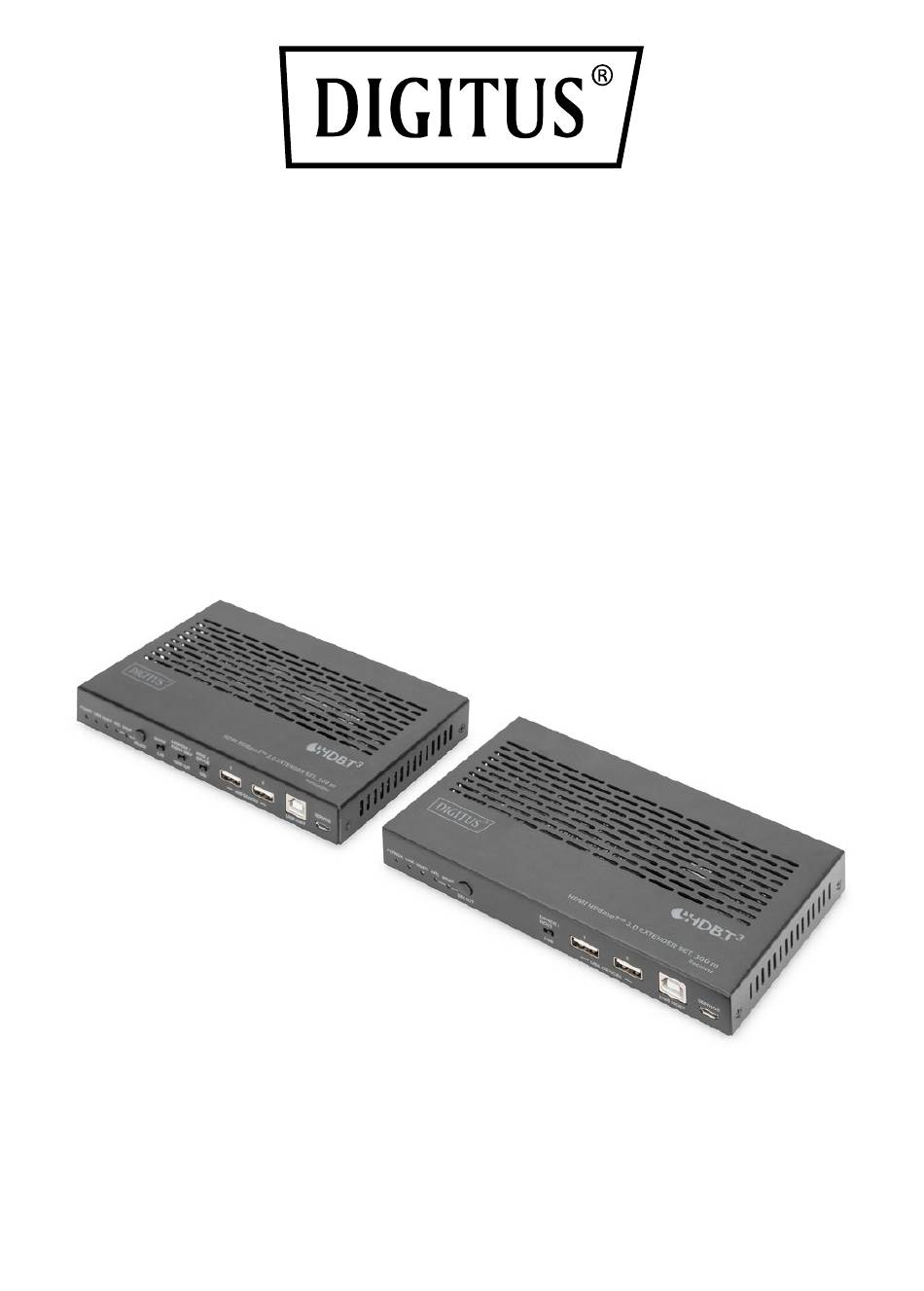

- Page 1 HDMI HDBaseT™ 3.0 Extender Set, 100 m Manual DS-55523...
-
Page 2: Table Of Contents
Table of Contents 1. Introduction ................3 2. Main Features ................. 4 3. Package Contents ..............4 4. Product Specification ............... 5 5. Product Overview ..............7 5.1 Transmitter Unit ..............7 5.2 Receiver Unit ..............9 6. Input & Output Switching ............11 6.1 Audio Embedding and De-embedding ...... -
Page 3: Introduction

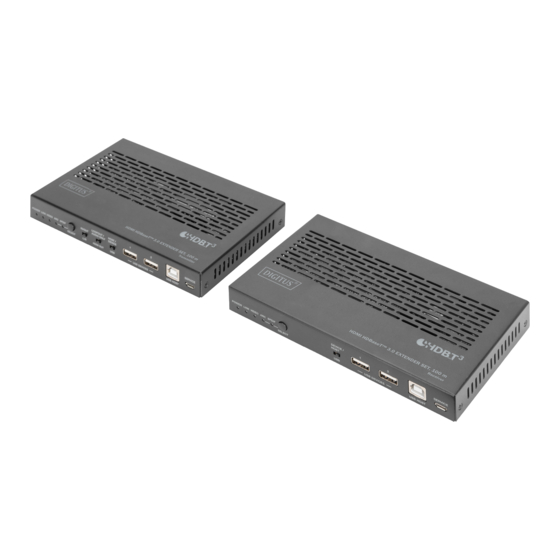

1. Introduction The DIGITUS® HDMI HDBaseT™ 3.0 Extender Set enables uncompressed AV signal transmission in 4K/60Hz, 4:4:4 at 18 GB/s over a distance of 100 m via CAT 6A (or higher) cables. Both on the transmitter and on the receiver, there are two USB-A "Device"... -
Page 4: Main Features
2. Main Features 1. HDBaseT™ 3.0 technology 2. HDMI 2.0b, HDCP 2.2 3. Uncompressed signal transmission in 4K/60Hz, 4:4:4 at 18 GB/s 4. Transmission distance of up to 100 m via CAT 6A (or higher) cables 5. 2x USB-A 2.0 connection on each unit for KVM function (keyboard, mouse, webcam), connection of USB data storage media, etc. -
Page 5: Product Specification
4. Product Specification 1. HDBaseT™ 3.0 technology 2. Supports eARC/ARC function (the sound is returned to the HDMI IN connection, HDMI OUT connection (only audio) and SPDIF OUT connection of the transmitter) 3. Bi-directional IR transmission 4. Bi-directional PoC (Power over Cable) transmission (24V) –... - Page 6 1x RJ45 input (HDBaseT™ 3.0) – Connection CAT transmission cable 2x USB-A 2.0 for KVM function (keyboard, mouse, webcam), connection of USB data storage media, etc. 1x USB-B input – Connection host PC for use of KVM functionality 1x RJ45 (Gigabit Ethernet) network connection ...
-
Page 7: Product Overview
5. Product Overview 5.1 Transmitter Unit Name Description SELECT Used for switching the ARC mode and button SPDIF mode Switch to left, the L/R IN/OUT port is the L/R IN/OUT audio embedding port. switch Switch to right, the L/R IN/OUT port is the audio de-embedding port. - Page 8 USB 2.0 USB extension host port connected to PC Type B SERVICE Firmware update port Status Power LED, LINK LED, VIDEO LED, ARC LED, indicator SPDIF LED USB 2.0 Two USB device ports, connected to Type A U disk, mouse or keyboard HDMI signal input port, connected to HDMI IN signal source device ,supporting...
-
Page 9: Receiver Unit
IR signal input port, connected to IR IR IN Receiver cable IR signal output port, connected to IR IR OUT Blaster cable 5.2 Receiver Unit Name Description SELECT Used for switching the ARC mode and button SPDIF mode Switch to left(HOST), the USB HOST mode HOST/DEVICE is enabled USB switch... - Page 10 USB 2.0 Two USB device ports, connected to Type A U disk, mouse or keyboard HDMI signal loopout port It can choose to be a LOOP OUT or AUDIO ONLY port HDMI OUT through the LOOP OUT/AUDIO ONLY switch Audio embedding/de-embedding port. It can be used for audio embedding/ L/R IN/OUT de-embedding through the L/R IN/OUT...
-
Page 11: Input & Output Switching
6. Input & Output Switching The Extender can switch to ARC/SPDIF mode by pressing the SELECT button on the front panel of both transmitter and receiver. The HDMI OUT port of the transmitter can turn to LOOP OUT or AUDIO ONLY through the LOOP OUT/AUDIO ONLY Switch. - Page 12 Scene 3: Set the Extender to ARC Mode. Then switch the LOOP OUT/AUDIO ONLY switch to right, the HDMI OUT port of the transmitter is set to AUDIO ONLY Scene 4: Set the Extender to ARC Mode. Then switch the LOOP OUT/AUDIO ONLY switch to left, the HDMI OUT port of the transmitter is set to LOOP OUT Scene 5: Set the Extender to eARC Mode.
-
Page 13: Audio Embedding And De-Embedding
Scene 6: Set the Extender to eARC Mode Then switch the LOOP OUT/AUDIO ONLY switch to left, the HDMI OUT port of the transmitter is set to LOOP OUT Note: In eARC mode, the SPDIF OUT port can only output the audio up to 5.1CH 6.1 Audio Embedding and De-embedding The Transmitter supports audio embedding and de-embedding. -
Page 14: Usb Mode Applications
6.2 USB Mode Applications The Extender supports USB2.0 transmission, and Host/Device is configurable Mode1: USB forward from TX to RX Switch the HOST/DEVICE USB switch to left, then power off and reboot the transmitter to set to USB Host mode. Meanwhile switch the DEVCE/HOST USB switch to left, then power off and reboot the receiver to set to USB Device mode Mode 2: USB reverse from RX to TX... -
Page 15: Ir Pin Definition
6.3 IR Pin Definition IR Receiver and Blaster pins definition as below IR Blaster – IR Signal IR Receiver Grounding Power 12V Note: When the angle between the IR receiver and the remote control is ±45°C, the transmission distance is 0-5 meters, when the angle between the IR receiver and the remote control is ±90°C, the transmission distance is 0-8 meters. - Page 16 Disclaimer The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. Hereby ASSMANN Electronic GmbH declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address.
