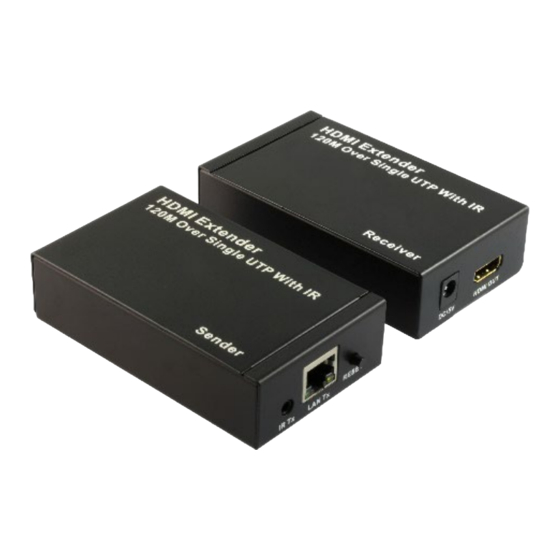

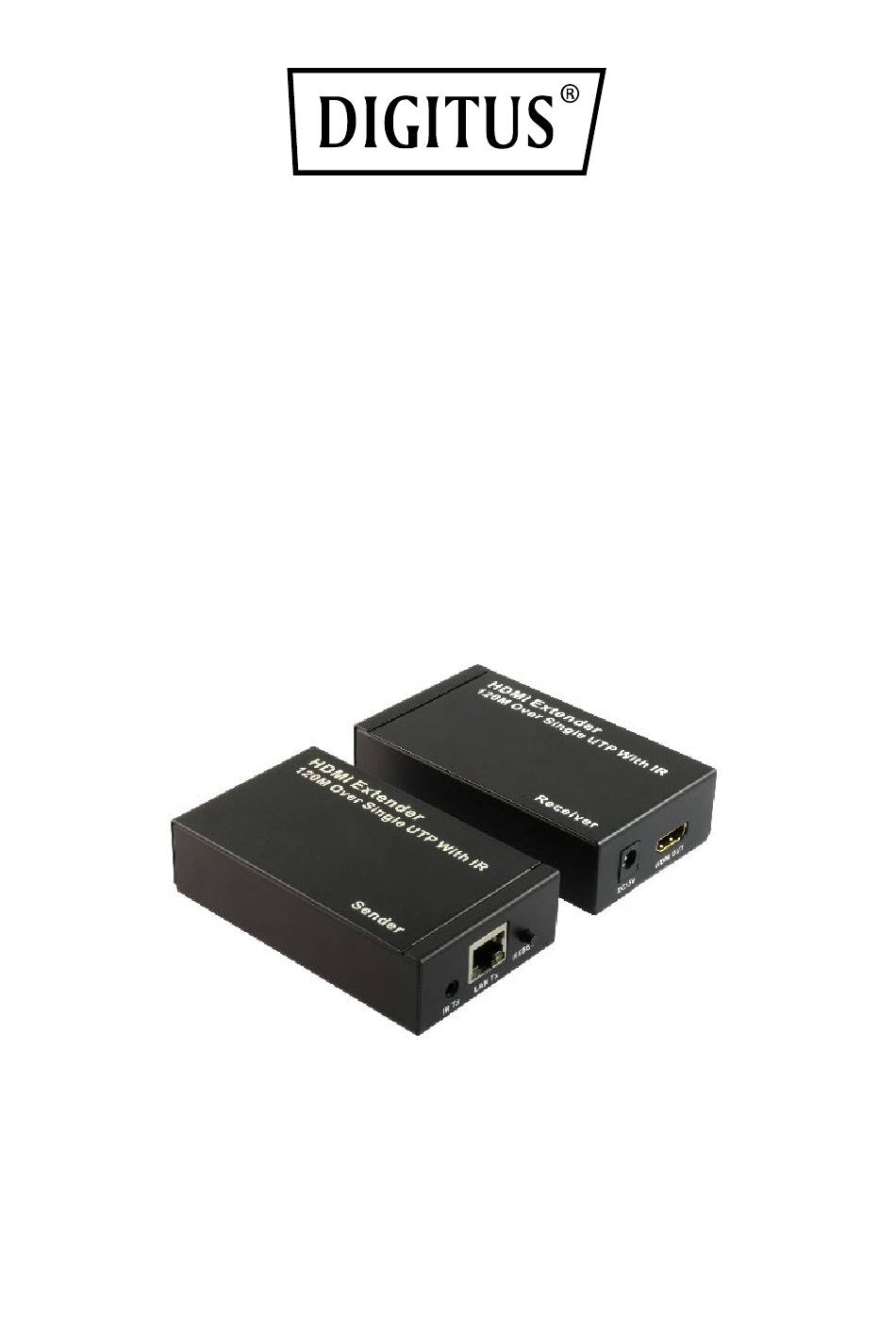

- Page 1 HDMI IP Extender Set, Full HD Quick Installation Guide DS-55517 - DS-55518...
-
Page 2: Table Of Contents
Table of Contents Introduction ..........3 Feature ............4 Package Content ........4 Specifications ..........5 Product Overview ........6 5.1 Transmitter Panel ....... 6 5.2 Receiver Panel ........6 Application Example ......... 7 6.1 Note: ........... 8... -
Page 3: Introduction
(receiver side). DS-55518: Expand the HDMI IP Extender Set (DS-55517) with additional receiver units to reproduce your AV content on multiple monitors at the same time. The set extends Full HD AV signals using a CAT6 network cable (point-to-point connection) up to 120 m. -
Page 4: Feature
2. Feature 1. Extends Full HD AV signals with a CAT6 cable over an unlimited distance via the existing local network infrastructure or commercial network switches 2. Extends Full HD AV signals with a CAT6 cable up to 120 m (point-to-point connection) 3. -
Page 5: Specifications
4. Specifications Signal Input HDMI Signal Input Video Signal 0.5-1.0volts/p-p Output Video HDMI Signal Transmission Distance 120m@1080p (via Cat6 cable) Vertical Frequency Range 50/60Hz Max up to Video Amplifier Bandwidth 1.65Gbps/165MHz Interlaced (50&60Hz) 1080i Progressive(50&60Hz) 720p,1080p Limited Warranty 1 Year Parts and Labor Operating Temperature 0°C to +50°C 10% to 85 % RH (no... -
Page 6: Product Overview
5. Product Overview 5.1 Transmitter Panel 1. DC/5V 2. HDMI IN 3. IR Tx 4. LAN Tx 5. RESET 5.2 Receiver Panel 1. DC/5V 2. HDMI OUT 3. IR Rx 4. LAN Rx 5. RESET... -
Page 7: Application Example
6. Application Example 1. Simple Mode: 2. Allocation Mode: 3. Infinity Mode: 1. DVD 2. HDMI Cable 3. CAT 5e/6 Cable 4. HDTV 5. IR Tx 6. IR Rx... -
Page 8: Note
6.1 Note: The IP address of the sender is fix to 192.168.101.110, the customers use the same IP segment PC host to enter the IP address to sign in the background to change the IP address and MAC address of the product via web browser;... - Page 9 Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address. www.assmann.com Assmann Electronic GmbH Auf dem Schüffel 3 58513 Lüdenscheid Germany...
