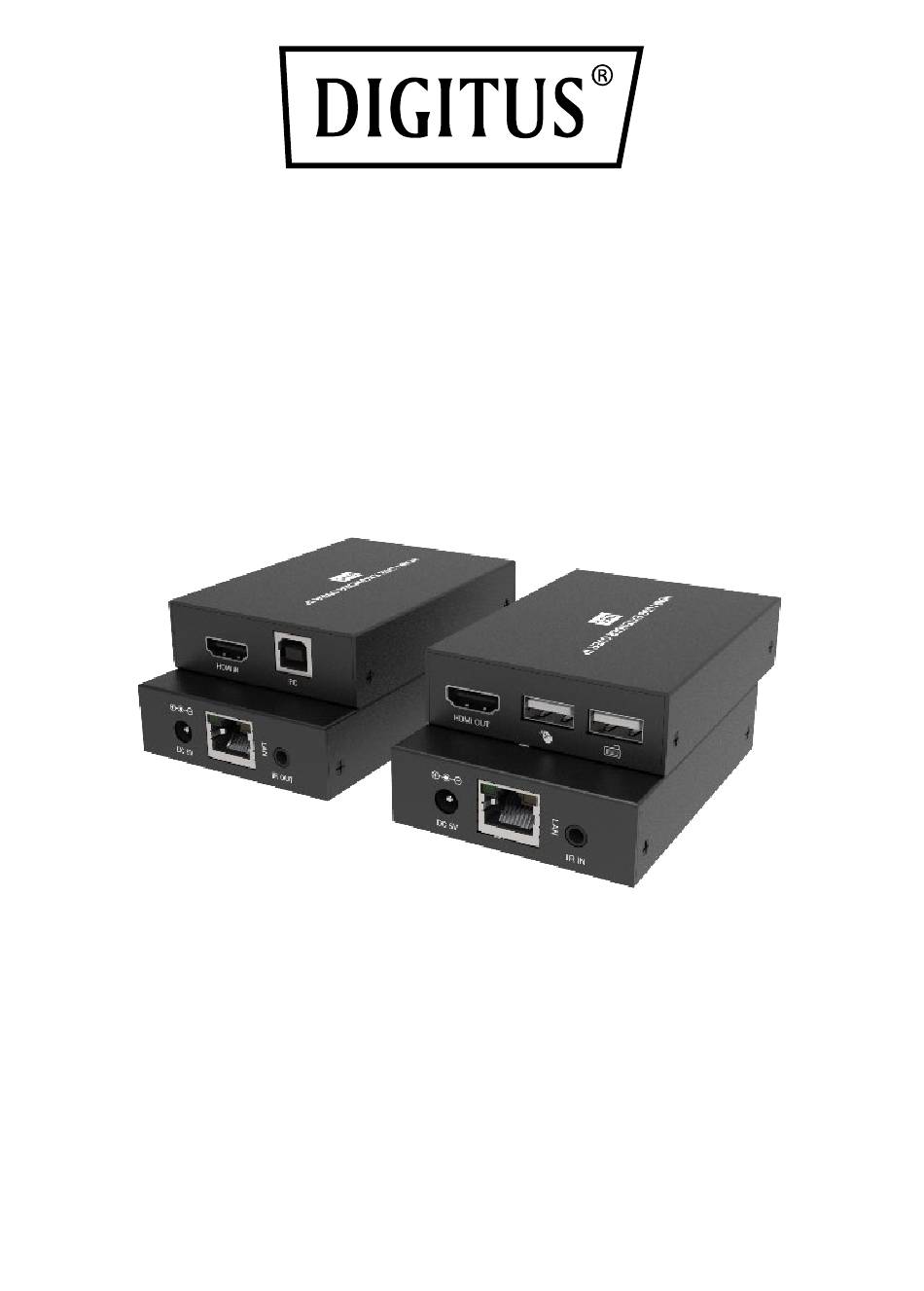

- Page 1 HDMI KVM IP Extender Set Manual DS-55507...
-
Page 2: Table Of Contents
Table of Contents 1. Introduction ................2 2. Main Features ................. 3 3. Package Contents ..............3 4. Specification ................4 5. Operating Controls and Functions ..........6 5.1 Encoder Panel ................ 6 5.2 Decoder Panel ................ 7 6. Application Example ..............8 1. -
Page 3: Main Features
2. Main Features Extends the maximum length for HDMI cables to up to 150 m • via a simple network cable • Extension of the signal (unlimited distance) via the existing local network infrastructure or commercial network switches (IP connection) Supports video resolutions up to: Full HD •... -
Page 4: Specification
4. Specification Technical HDCP Compliance HDCP 1.4 USB Version USB 1.1 Video Bandwidth 6.75Gbps Video Resolution 640x480@60Hz~1920x1200@60Hz HDMI Audio Formats LPCM 2.0CH, 32KHz, 44.1KHz, 48KHz IR Frequency 20Hz ~ 60KHz Compression H.265 Technology Request for Switcher Support 1 GMP, Support DHCP /Router Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2... - Page 5 Mechanical Housing Metal Enclosure Silkscreen Color Black Dimensions 67mm (W) × 91.5mm (D) × 17.5mm (H) Weight Encoder: 155g, Decoder: 150g Power Supply Input: AC100 - 240V 50/60Hz Output: DC 5V/1A Power Consumption Encoder: 1.4W, Decoder: 1.7W Operating -10°C ~ 50°C / 14°F ~ 122°F Temperature Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F...
-
Page 6: Operating Controls And Functions
5. Operating Controls and Functions 5.1 Encoder Panel Name Function description DC 5V 5V 1A input for power supply The LAN port is connected to decoder’s LAN port or connected to switcher / router / hub with CAT cable IR OUT Connect to IR blaster cable. -
Page 7: Decoder Panel
5.2 Decoder Panel Name Function description DC 5V 5V 1A input for power supply The LAN port is connected to encoder’s LAN port or connected to switcher / router / hub with CAT cable IR IN Connect to IR receiver cable. The IR signal is sent to IR OUT port of encoder HDMI OUT... -
Page 8: Application Example
6. Application Example Figure 1: Encoder directly connects to Decoder... - Page 9 Encoder Decoder IR Receiver Power Supply IR Blaster Mouse DVD or Blu-ray Player USB Keyboard Ethernet Cat5e/6...
- Page 10 Figure 2: Encoder connects to Decoder via a switcher (One Encoder to multiple Decoders)
- Page 11 Encoder HDMI cable Switcher DVD or Blu-ray Player Decoder Ethernet Cat5e/6 Disclaimer The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. Hereby ASSMANN Electronic GmbH declares that the Declaration of Conformity is part of the shipping content.
