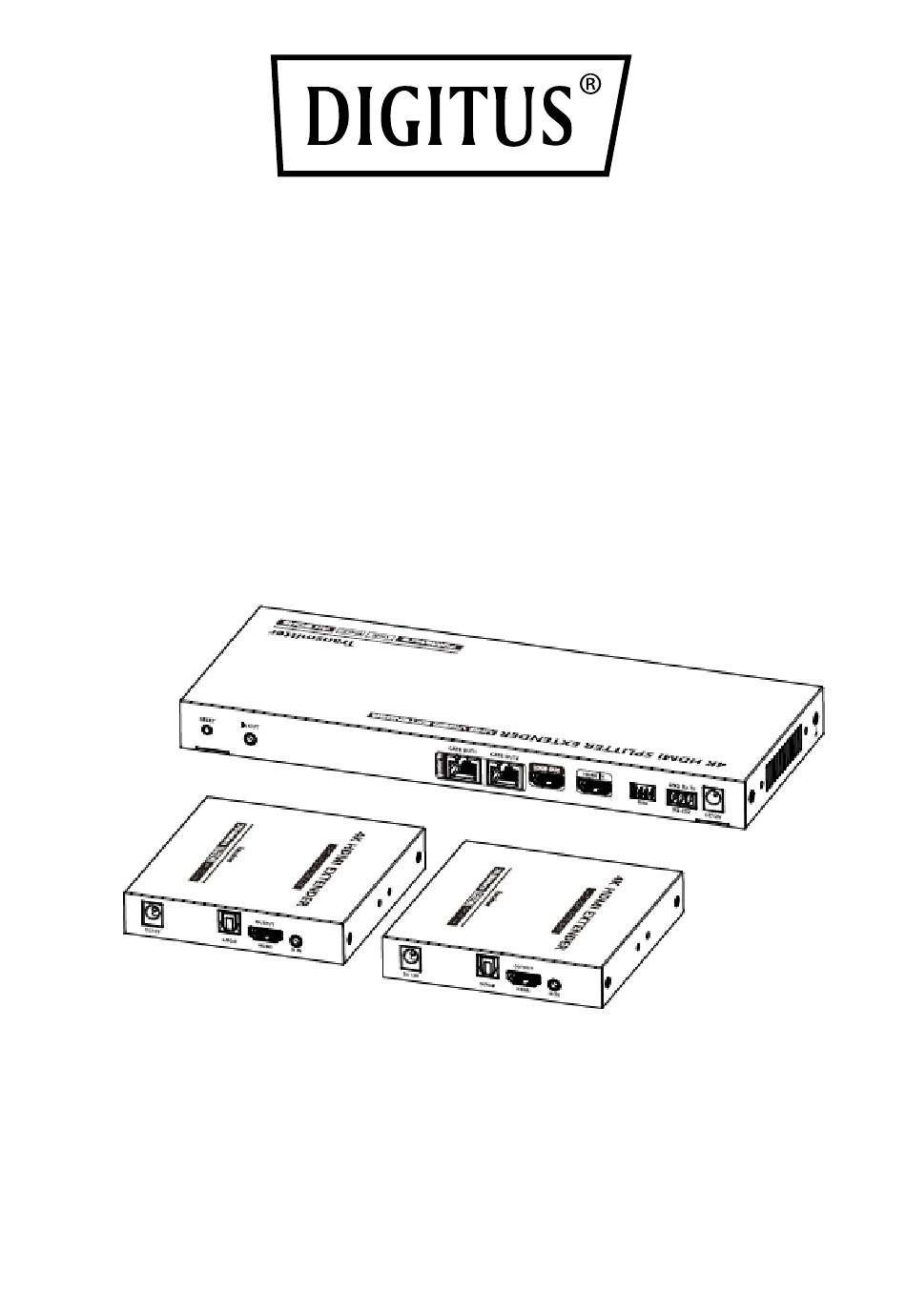

- Page 1 4K HDMI Extender Splitter Set, 1x2 Manual DS-55516...
-
Page 2: Important Safety Notice

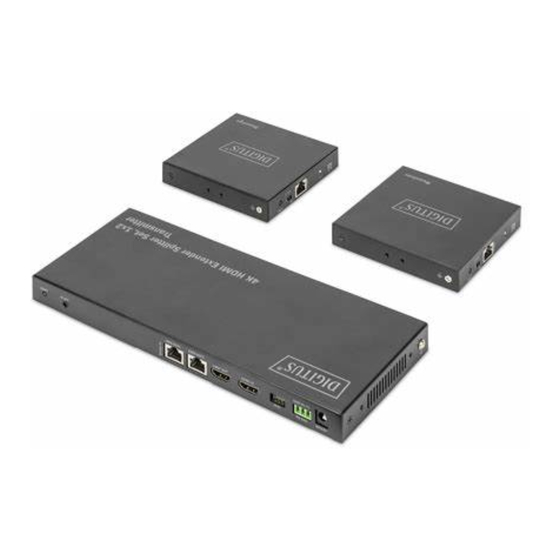

Make sure the specification matched if using 3rd party DC adapters 1. Introduction The DIGITUS® HDMI Extender Splitter Set extends an AV signal from the source device over a distance of up to 70 m and distributes it onto 2 screens in UHD resolution (4K/60Hz). Supports CAT 6/7/8 cables. -
Page 3: Package Content
3. Package Content 1x Transmitter unit 2x Receiver unit 1x IR transmission cable (1.5 m) 2x IR receiver cable (1.5 m) 1x Power adapter (DC 12V/3A, 1.45 m) 1x RS232 terminal block 1x Wall mounting fastening material ... -
Page 4: Installation Requirements
Humidity 0~90% RH (no condensation) ESD protection 1a Contact discharge level 3 1b Air discharge level 3 Implementation of the standard: Protection IEC61000-4-2 Lightning protection Surge protection Power supply TX: DC12V/3A Power consumption TX<13W RX<4W Material Iron Color Black Weight TX: 640g RX: 243g TX: 264.5(L) x 104.0(W) x 23.0(H)mm Dimension... -
Page 5: Panel Description
6. Panel Description Transmitter (TX) The indicator will turn blue when the Power indicator power is turned on Reset button Restart the device IR out Connect with IR blaster extension cable RJ45 output port Connect with Cat6/6A/7 network cables Connect with local HDMI display device HDMI output port with HDMI cable Connect with HDMI source device with... -
Page 6: Installation Procedures
Choose the audio source (output from the S/PDIF port) S/PDIF: from the Audio switch source device ARC: from the TV (receiver end) RJ45 signal input Connect with Cat6/6A/7 network cables When there is power and no HDMI Power/Signal signal, the indicator will flash, when indicator there is HDMI signal, the indicator will light solid blue... -
Page 7: Connection Instructions
7.2 Connection 7.3 Connection instructions Connect the source device to the HDMI IN port of the transmitter through an HDMI cable. Connect the CAT6 OUT ports of the transmitter to the CAT6 IN port of the receivers through the network cables. Connect the HDMI OUTPUT port of the receivers to the display ... -
Page 8: Function Setting
8. Function setting 8.1 RS232 settings The default configuration is as follows: Baud rate: 9600 Data bits: 8 Stop bits: 1 Parity: 0 Control Commands Function Descriptions Turn on the network signal output port(s), choose from“01”to“02” (the ES XX On【Enter】 network ports from left to right are: 01, 02.);... -
Page 9: Reset【Enter
Received successfully ES All Off OK Return Values Receive failed ES All Off FAIL Control Command Reset【Enter】 Function Description Restart the device Received successfully Reset OK Return Values Receive failed Reset FAIL Control Command Baud 19200【Enter】 Function Description Set the baud rate value: 19200 Baud 19200 Received successfully Return Values... -
Page 10: Edid Setting
8.2 EDID setting There are 16 built-in EDIDs in the product, which can be switched through the DIP switch. The upward DIP switch indicates “1”, and the downward DIP switch indicates“0”. Switch up for “1” Switch down for “0” Switch Status EDID Information 4K@60Hz 2CH 4K@60Hz 5.1CH... - Page 11 9. FAQ Q: Why there is no image output on the display device? 1) Please check the power supply and all the cables are well-connected. 2) Please check whether there is an HDMI signal input. 3) Please make sure that the corresponding network port output is not turned off by the RS-232 command.
- Page 12 Hereby Assmann Electronic GmbH declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address. www.assmann.com Assmann Electronic GmbH Auf dem Schüffel 3 58513 Lüdenscheid Germany...
