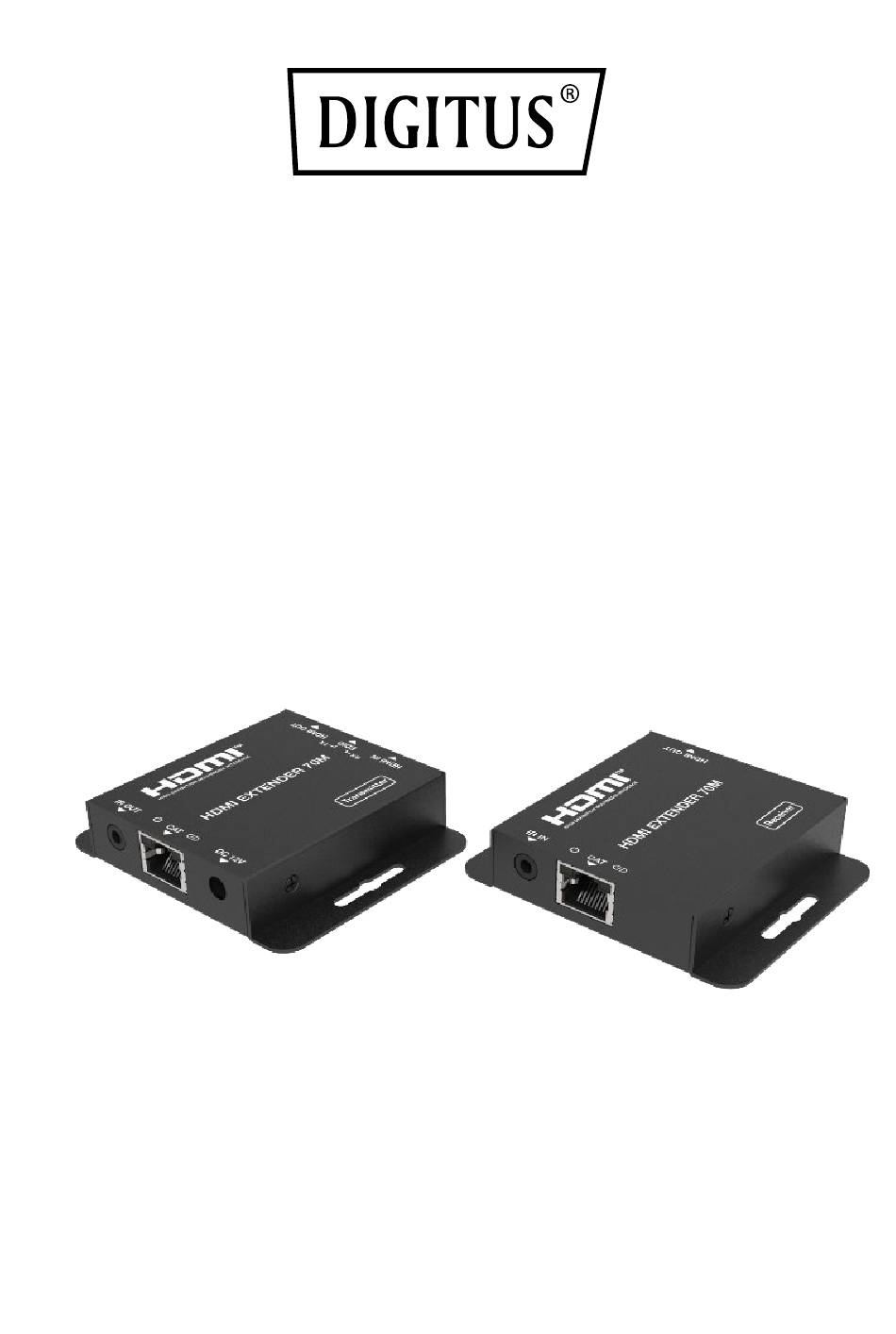

- Page 1 4K HDMI Extender Set, 70 m Quick Installation Guide DS-55519...
-
Page 2: Table Of Contents
Table of Contents Introduction ..........3 Feature ............3 Package Content ........4 Specifications ..........4 Product overview ........6 5.1 Transmitter Panel ....... 6 5.2 Receiver Panel ........7 5.3 IR Pin Definition ........8 Application Example ......... 9... -
Page 3: Introduction
1. Introduction The HDMI Extender Set extends Full HD AV signals over a distance of up to 70 m, 4K/30Hz signals can be extended over a distance of up to 40 m using a CAT6 (or higher) network cable. The transmitter unit features an HDMI loop out for connecting a local monitor. -
Page 4: Package Content
3. Package Content 1x Transmitter unit 1x Receiver unit 1x IR transmission cable (1.5 m) 1x IR receiver cable (1.5 m) 1x Power adapter (DC 12V/1A, 1.15 m) 1x User manual 4. Specifications Technical HDMI Compliance HDMI 1.4 HDCP Compliance... - Page 5 1x IR OUT (3. 5mm stereo mini-jack) 1x CAT OUT (RJ45, 8-spin female) Inputs:1x IR IN (3. 5mm stereo mini-jack), 1x CAT IN(RJ45, Receiver 8-spin female) Output: 1x HDMI Type A (19-pin female ) Mechanical Housing Metal Enclosure Color Black...
-
Page 6: Product Overview

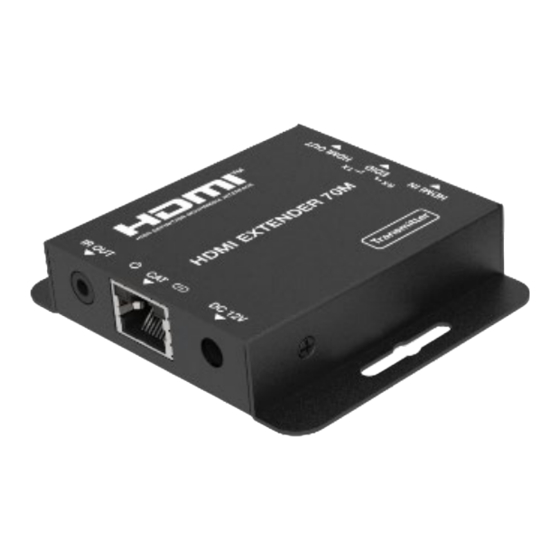

5. Product Overview 5.1 Transmitter Panel Name Function Description HDMI signal input port. Connect to HDMI IN HDM source device such as DVD or Set-top box. The switch is used for selecting EDID Switch to the right position, the extender will copy HDMI loop EDID out display EDID information to signal source;... -
Page 7: Receiver Panel
CAT output port. Connect to the CAT input port of the receiver with CAT5E / 6 cable Digital Light on: HDMI signal with HDCP signal Light flashing: HDMI signal indicator without HDCP. light Light off: No HDMI signal DC 12V DC 12V power supply port 5.2 Receiver Panel... -
Page 8: Ir Pin Definition
Digital Light on: HDMI signal with HDCP signal Light flashing: HDMI signal indicator without HDCP. light Light off: No HDMI signal 5.3 IR Pin Definition IR Receiver and Blaster pins definition is as below: IR RECEIVER IR BLASTER 1) IR Blaster Signal 2) Power 3) NC... -
Page 9: Application Example
6. Application Example Transmitter 1. UHDTV 2. Power Supply 3. Blu-ray Player 4. IR Blaster 5. CAT5E/6 cable Receiver 1. UHDTV 2. IR Receiver... - Page 10 Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address. www.assmann.com Assmann Electronic GmbH Auf dem Schüffel 3 58513 Lüdenscheid Germany...
