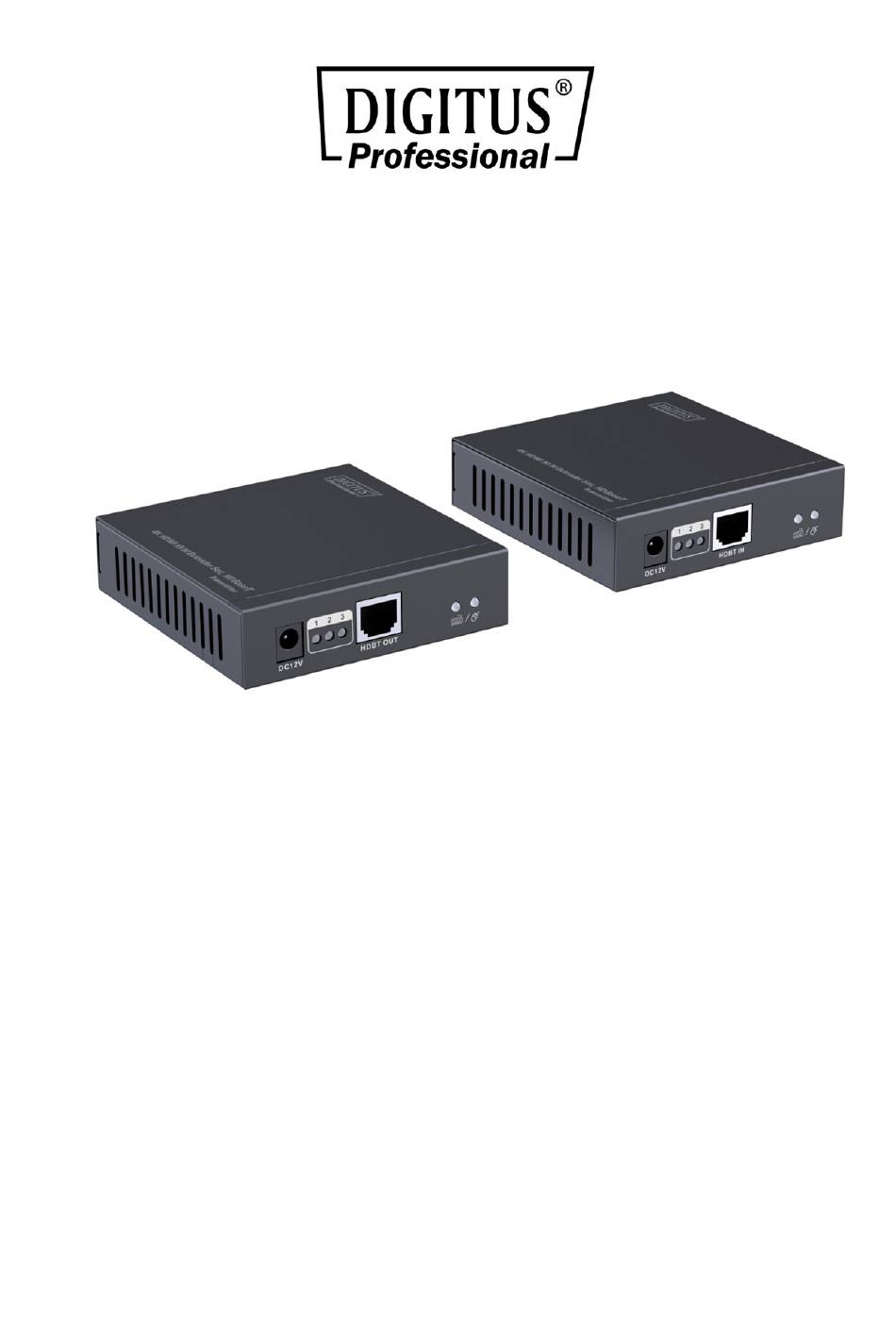

4K HDMI KVM Extender Set, HDBaseT
Manual
DS-55502

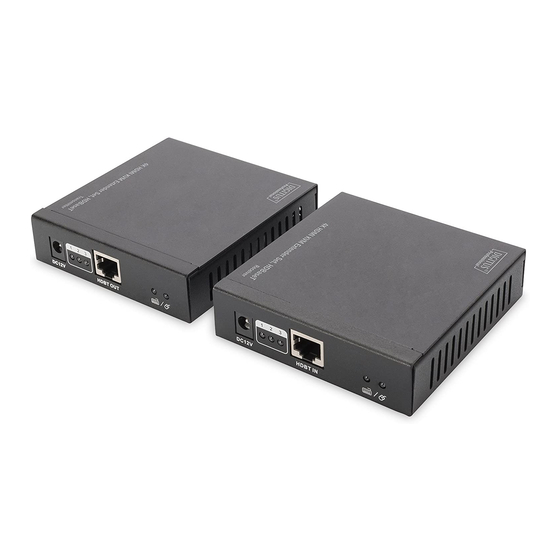

The Digitus 4K HDMI KVM Extender Set consists of a transmitter unit
(local control) as well as a receiver unit (remote control). The HDMI
signal can be extended via a network cable (CAT 6) to a maximum
distance of 70 m (Full HD video content). 4K video content can be
extended to up to 40 m using a CAT 6 network cable. The highest
supported video resolution is 4K UHD / 30 Hz. It also makes convenient
access on a computer (mouse and keyboard) possible via the USB ports
on the receiver unit. It is perfectly suited to industrial, commercial and
public applications. The package also includes two bidirectional infrared
units (sender, receiver), which can be used for the remote control of the
connected input source.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Digitus DS-55502
Summary of Contents for Digitus DS-55502
- Page 1 4K HDMI KVM Extender Set, HDBaseT Manual DS-55502 The Digitus 4K HDMI KVM Extender Set consists of a transmitter unit (local control) as well as a receiver unit (remote control). The HDMI signal can be extended via a network cable (CAT 6) to a maximum distance of 70 m (Full HD video content).
-
Page 2: Important Safety Instructions
Important Safety instructions Please read below safety instructions carefully before installation and operation: Please pay attention to all the warnings and hints on this device. Do not expose this unit to rain, moisture and liquid. Do not put any stuff into the device. ... -
Page 3: Package Contents
Package Contents HDMI to HDBaseT TX HDBaseT to HDMI RX DC12V/2A *1pcs USB Cable x 1pcs sender*1pcs receiver*1pcs IR blaster extension IR receiver extension User manual*1pcs cable*1pcs cable*1pcs Installation Requirements 1. Source equipment: HDMI source device (i.e.: computer graphics card, DVD, PS3, or HD monitoring equipment etc.) 2. - Page 4 Specification Part No. DS-55502 Technical Transmitter-TX Receiver-RX HDCP compliance HDCP1.4 Transmission protocol HDBaseT Transmission distance CAT5E/CAT6/CAT6A/CAT7 Up to 1080p@60Hz 36bpp 1080p@60Hz 48bpp, Cat5e 1080p@60Hz 3D, 4Kx 2K@30Hz Transmission distance Up to 1080p@60Hz 36bpp 1080p@60Hz 48bpp, Cat6 1080p@60Hz 3D, 4Kx 2K@30Hz...
-
Page 5: Panel Description
Mechanical Transmitter-TX Receiver-RX Housing Metal enclosure Dimensions 99.45×94.5×25.7mm (L×W×H mm) Net weight TX: 220g RX: 230g Power supply 12V/2A Power consumption <8W Operation temperature 0~50°C Storage temperature -10~70°C Relative humidity 0~95% (no condensation) Panel Description 1. Transmitter Unit (TX) DC12V input Connect with the power supply ①... - Page 6 IR receiver Connect with IR receiver extension cable. ⑦ extension cable Please make sure the remote control is within interface the required range of IR receiver IR blaster Connect with IR blaster extension cable. ⑧ extension cable Please put the IR blaster close to source interface device to get the best IR signal transmission from receiver.
-
Page 7: Installation Procedures
Installation Procedures 1. To make a Cat5e/6 network cable white and white and 4 blue orange brown white and 2 orange 8 brown blue white and 6 green green 2. Connections Sender Receiver HDMI HDMI display Power keyboard/mouse [NOTE]: It is recommended to power from the receiver unit. 3. - Page 8 Q: No output on screen? 1) Firstly, please check and make sure the power supply is connected well. Then, check and make sure all cables are connected correctly. 2) Please check and make sure you have chosen the right HDMI input port of the TV/screen.
