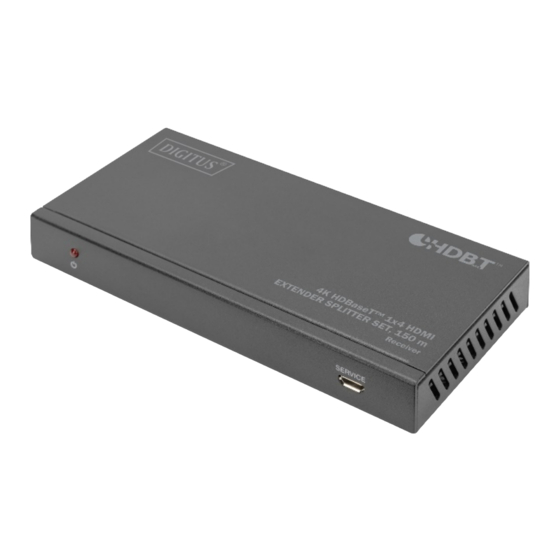

4k hdbaset 1x4 hdmi extender splitter set, 150 m
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
4K HDBaseT™ 1x4 HDMI
Extender Splitter Set, 150 m
Manual
DS-55510

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-55510 and is the answer not in the manual?

Questions and answers

Related Manuals for Digitus DS-55510

Summary of Contents for Digitus DS-55510

  • Page 1 4K HDBaseT™ 1x4 HDMI Extender Splitter Set, 150 m Manual DS-55510...

  • Page 2: Table Of Contents

    8. Application Example .............. 18 1. Introduction The DIGITUS® 4K HDBaseT™ HDMI Extender Splitter Set distributes the input signal on up to four output devices over a distance of up to 120 m (4K/60Hz, 4:4:4) or up to 150 m (Full HD, 1080p/60Hz) using a CAT6/7/8 cable.

  • Page 3: Main Features

    2. Main Features Supports HDBaseT™ 1.0 via CAT6/7/8 cable up to 150 m • Supports 4K2K/60Hz (4:4:4) • Maximum transmission distance (UHD 4K2K): 120 m • Maximum transmission distance (Full HD 1080p): 150 m • • EDID management • HDMI loop-out to the transmitter unit PoC (Power over Cable) - Only the transmitter unit •...

  • Page 4: Specification

    4. Specification Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2/1.x Video Bandwidth 594MHz/18Gbps Video Resolution Up to 4k2k@60Hz 4:4:4 Color Depth 8-bit,10-bit,12-bit(1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4) 8-bit,10-bit,12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0) Color Space RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0 Support HDR, HDR10+, HLG, Dolby vision HDMI Audio Formats...
  • Page 5 Connections Input 1× HDMI Type A (19-pin female) Output 1× HDMI Type A (19-pin female） 4x HDBaseT OUT [RJ45] 1x Coaxial Audio OUT [RCA] 1x L/R Audio OUT [5-pin phoenix connector] Control 1× RS-232 (3-pin phoenix connector） 1x EDID DIP switch [5-pin] 1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-jack] Mechanical...

  • Page 6: Operating Controls And Functions

    5. Operating Controls and Functions 5.1. Transmitter Front Panel Name Function description Power LED When the device is powered on, the red power LED will be on. IN LED When the HDMI IN port connects an active source device, the green LED will be on.
  • Page 7 Rear Panel Name Function description RS-232 Connect to a PC or control system via a 3-pin phoenix connector cable for three functions: 1. Firmware update; 2. Control the Splitter via RS-232 commands; 3. RS-232 signal pass-through (from transmitter to receiver or from receiver to transmitter) IR IN Connect to IR receiver cable, the IR...
  • Page 8 EDID DIP Used to set EDID mode. Please refer to switch Section “6. EDID Mode” for details HDMI port IN: HDMI input port, connect to HDMI source device such as DVD or set-top box with an HDMI cable LOOP OUT: HDMI loop output port, connect to the HDMI display device such as TV or Monitor with an HDMI cable...

  • Page 9: Hdbaset Receiver

    5.2. HDBaseT Receiver Name Function description Power Indicator When the receiver is powered on, the power indicator will be on SERVICE port Used for firmware update DC 24V Plug DC 24V/1A power supply into the unit and connect the adapter to an AC outlet. (Note: The HDBaseT receiver also can be powered by the transmitter via a CAT cable)
  • Page 10 Connection • Illuminating: Transmitter and Signal Indicator Receiver are in good connection lamp (Green) status • Flashing: Transmitter and Receiver are in poor connection status • Dark: Transmitter and Receiver are not connected Data Signal • Illuminating: HDMI signal with HDCP Indicator lamp •...

  • Page 11: Ir Pin Definition

    5.3. IR Pin Definition IR Receiver and Blaster pin’s definition is as below: IR RECEIVER IR BLASTER IR Blaster IR Blaster Signal Power IR Receiver IR Signal Power Grounding Note: When the angle between the IR receiver and the remote control is ±...

  • Page 12: Edid Mode

    6. EDID Mode The defined EDID setting list of the product is shown as below: EDID Mode EDID Description 11111 1080P, Stereo Audio 2.0 11110 1080P, Dolby/DTS 5.1 11101 1080P, HD Audio 7.1 11100 1080I, Stereo Audio 2.0 11011 1080I, Dolby/DTS 5.1 11010 1080I, HD Audio 7.1 11001...

  • Page 13: Ascii Commands

    00100 1080P, Stereo Audio 2.0 00011 1080P, Stereo Audio 2.0 00010 1080P, Stereo Audio 2.0 00001 1080P, Stereo Audio 2.0 00000 PC control mode 7. ASCII Commands The product also supports ASCII command control. Connect the RS-232 port of the product to a PC with a 3-pin phoenix connector cable.
  • Page 14 System Setup help! List all commands help! r type! Get device model r type! HDC- SPB14H150 r status! Get device current r status! Get the unit all status status: power, in/out connection, edid mode r fw version! Get Firmware version r fw version! MCU BOOT: Vx.xx.xx...
  • Page 15 s hdbt y hdcp z! Set hdbt output y hdcp s hdbt 1 hdcp 1 ! Enable hdbt enable on/off, s hdbt 0 hdcp 1 ! output 1 y=0~4(0=all) hdcp z=0~1(0:disable, Disable hdbt 1:enable) output 1 hdcp Enable hdbt all outputs hdcp Disable hdbt all outputs hdcp...
  • Page 16 5. 1080i, Dolby/DTS 5.1 6. 1080i ,HD Audio 7.1 7. 3D, Stereo Audio 2.0 8. 3D, Dolby/DTS 5.1 9. 3D, HD Audio 7.1 10. 4K2K30_444, Stereo Audio 2.0 11. 4K2K30_444, Dolby/DTS 5.1 12. 4K2K30_444, HD Audio 7.1 13. 4K2K60_420, Stereo Audio 2.0 14.
  • Page 17 s edid user1 00 Set user1 EDID data s edid user1 00 user1 EDID FF FF FF FF …! ff ff ff ff …. ! data: 00 FF FF …. r edid user1! Get user1 EDID data r edid user1! user1 EDID data: 00 FF FF FF FF FF...

  • Page 18: Application Example

    8. Application Example...
  • Page 19 Transmitter 2.0 Speaker Receiver DVD or Blu-ray Player UHDTV IR Receiver Cat 6/6a/7 IR Blaster Power Supply Amplifier HDMI Matrix with RS-232 function Disclaimer The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

This manual is also suitable for:
