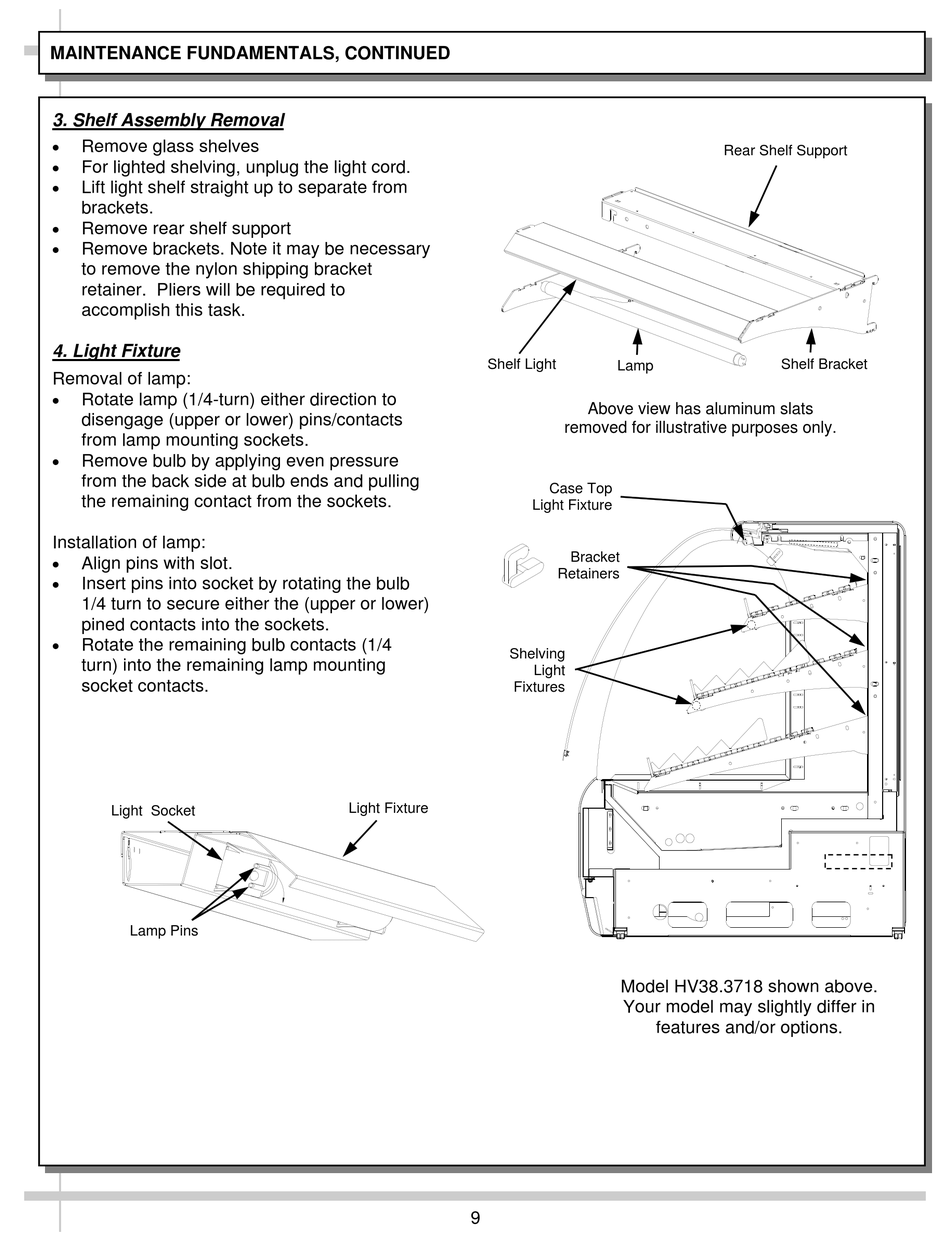

MAINTENANCE FUNDAMENTALS, CONTINUED
3. Shelf Assembly Removal

Remove glass shelves

For lighted shelving, unplug the light cord.

Lift light shelf straight up to separate from
brackets.

Remove rear shelf support

Remove brackets. Note it may be necessary
to remove the nylon shipping bracket
retainer. Pliers will be required to
accomplish this task.
4. Light Fixture
Removal of lamp:

Rotate lamp (1/4-turn) either direction to
disengage (upper or lower) pins/contacts
from lamp mounting sockets.

Remove bulb by applying even pressure
from the back side at bulb ends and pulling
the remaining contact from the sockets.
Installation of lamp:

Align pins with slot.

Insert pins into socket by rotating the bulb
1/4 turn to secure either the (upper or lower)
pined contacts into the sockets.

Rotate the remaining bulb contacts (1/4
turn) into the remaining lamp mounting
socket contacts.
Light Socket
Lamp Pins
Shelf Light Shelf Light
Shelving
Fixtures
Light Fixture
9
Lamp
Above view has aluminum slats
removed for illustrative purposes only.
Case Top
Light Fixture
Bracket
Retainers
Light
Model HV38.3718 shown above.
Your model may slightly differ in
features and/or options.
Rear Shelf Support
Shelf Bracket
