MAINTENANCE FUNDAMENTALS: SHELF ASSEMBLY REMOVAL / DECKING REMOVAL

1. Shelf Assembly Removal
 Shelves can be removed for repositioning,
removal (for individual merchandising
requirements) and cleaning.
 Slide the front shelf support back rotate up and
lift straight up to separate from brackets.
 Slide the rear shelf support back rotate up and
lift straight up to separate from brackets.
 Remove brackets. Note: It may be necessary to
remove the nylon shipping bracket retainers.
Pliers will be required to accomplish this task.
2. Decking Removal
 Remove lower shelf assembly.
 Remove interior deck by pushing up from
underneath in the bag storage area.


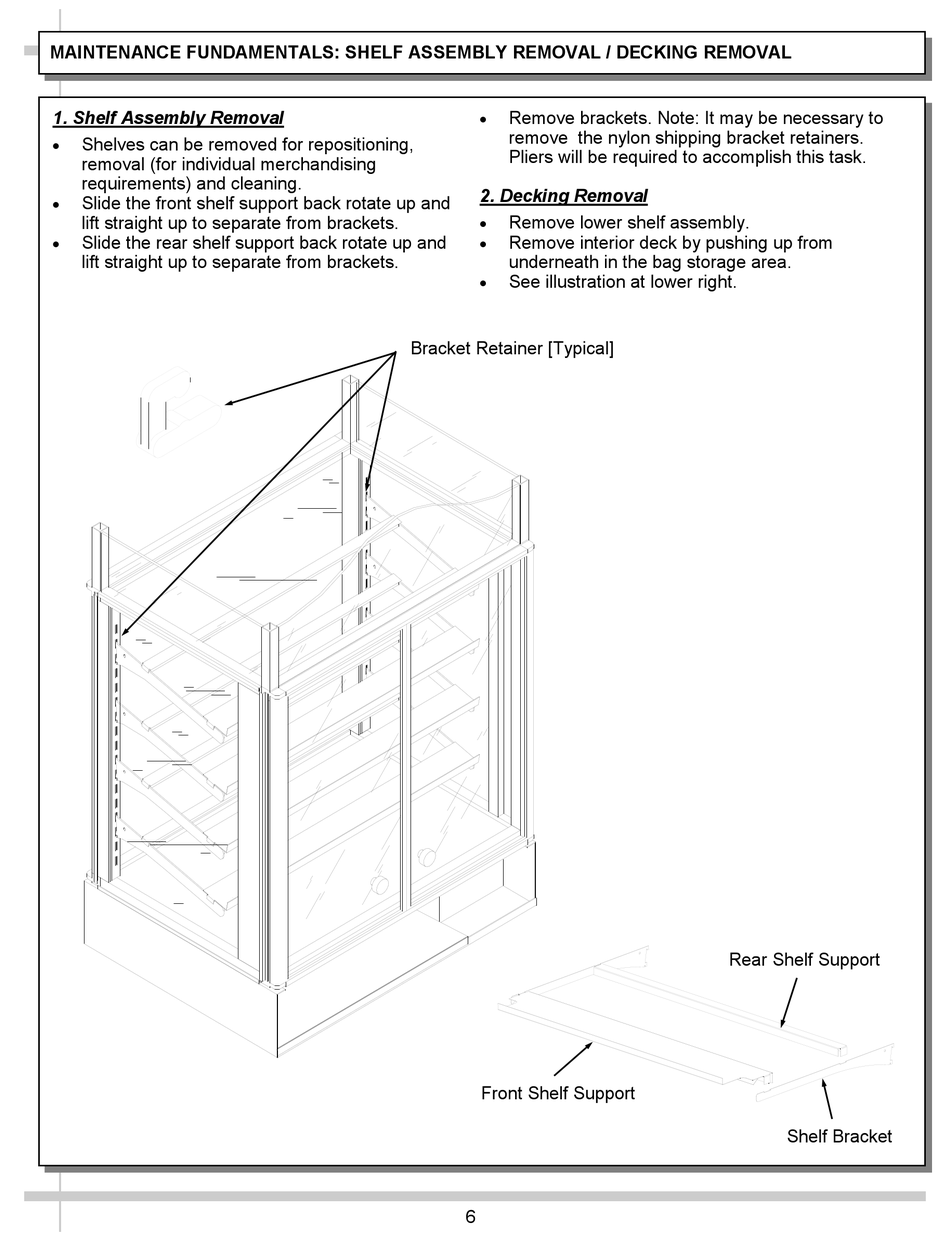

See illustration at lower right.
Bracket Retainer [Typical]
Front Shelf Support
6
Rear Shelf Support
Shelf Bracket
