MAINTENANCE FUNDAMENTALS
Maintenance Fundamentals

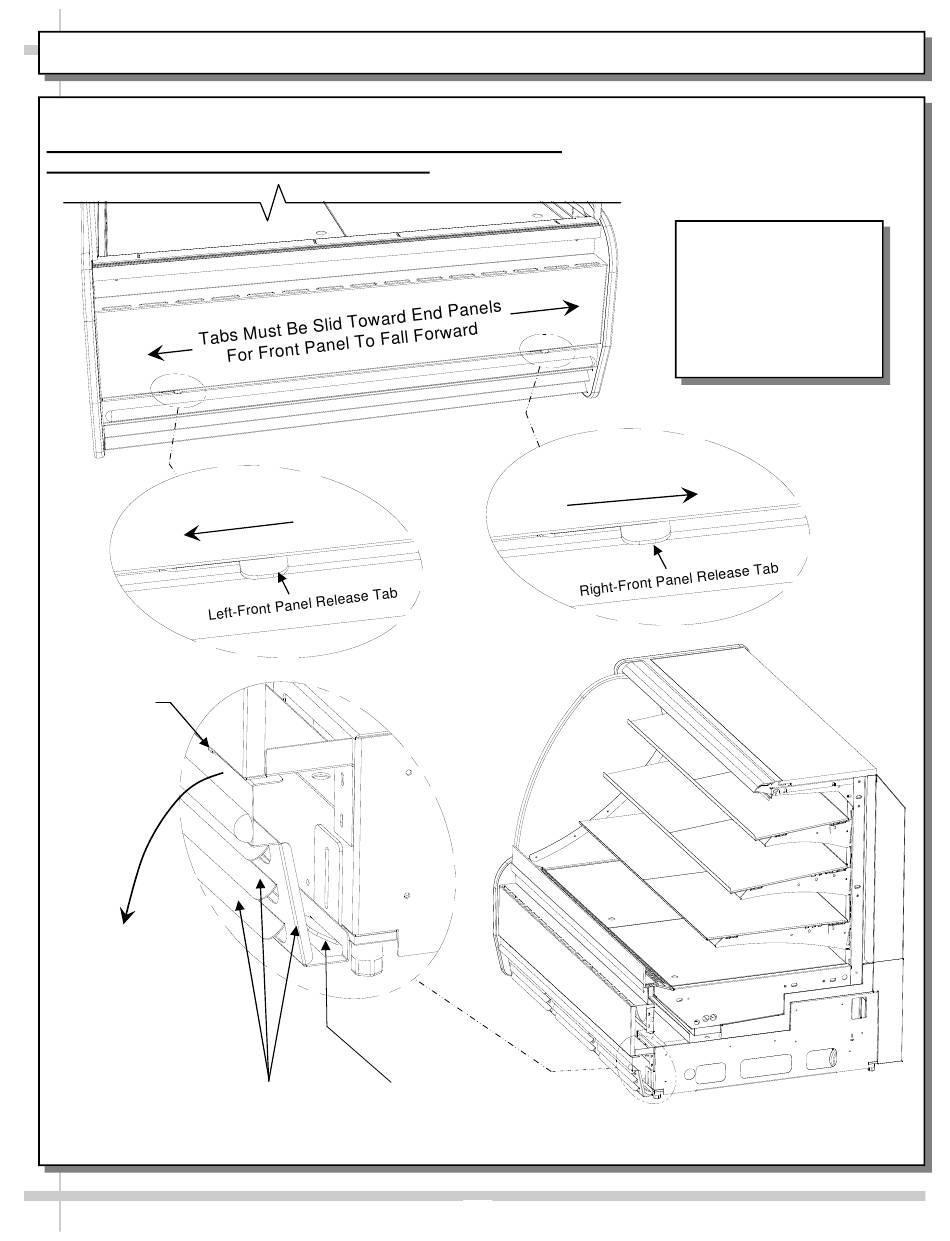

1. Vertical Front Panel Removal: Follow steps shown below.
2. Replace in reverse order as shown below.
Right-Front
Panel
Release Tab
Front Panel Will Fall
Forward When
Left-Front &
Right-Front
Panel Release
Tabs Are
Simultaneously
Slid Toward
End Panels. Lift Up &
Away From Case.
(Single Piece)
Front Panel
Front Panel
Lower
Retaining Tab
Model HV56RSS.3928A shown above with end
panel removed for illustrative purposes only.
8
NOTE:
Illustrations below
may not exactly
reflect every
feature or option of
your particular case.
