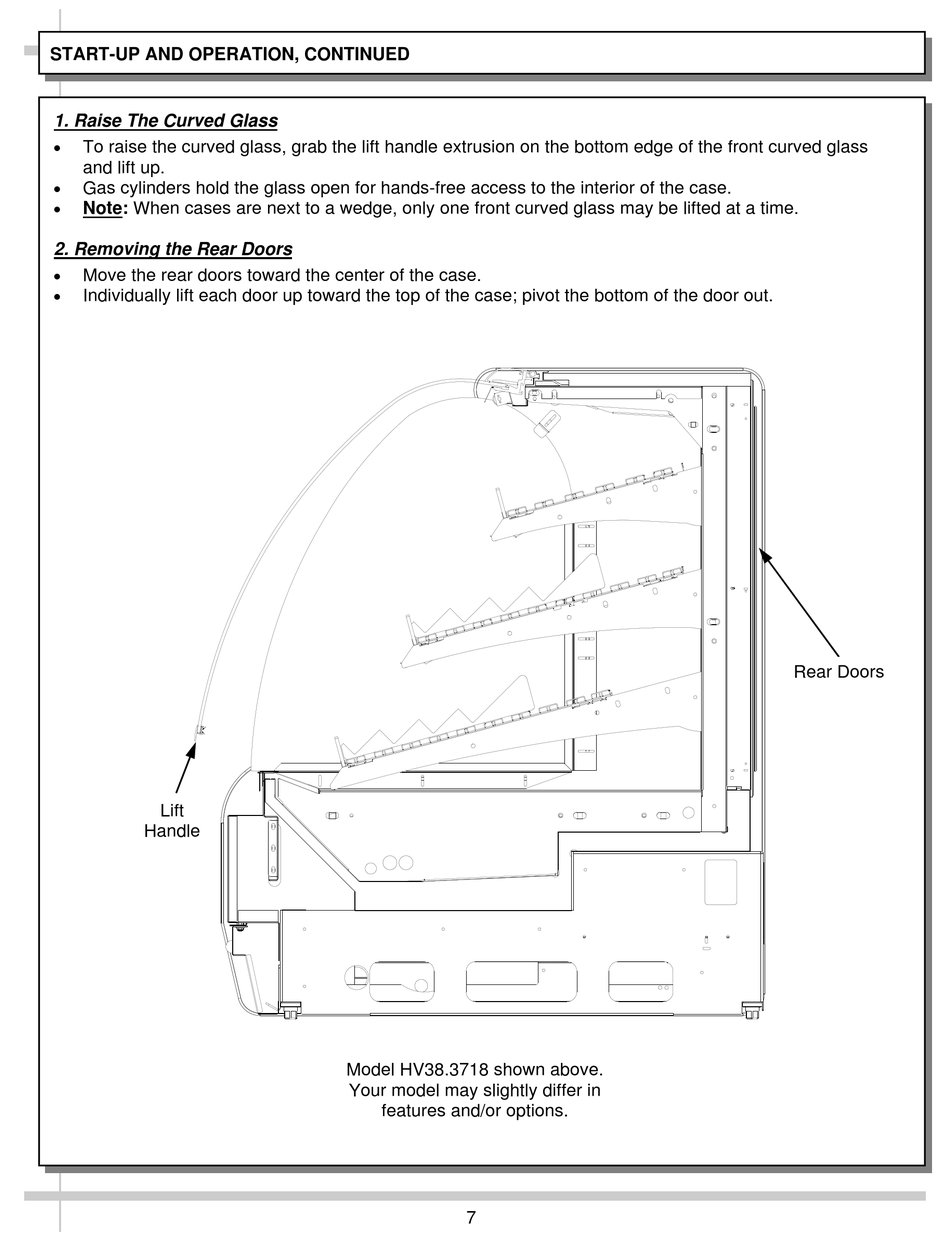

START-UP AND OPERATION, CONTINUED
1. Raise The Curved Glass

To raise the curved glass, grab the lift handle extrusion on the bottom edge of the front curved glass
and lift up.

Gas cylinders hold the glass open for hands-free access to the interior of the case.

Note: When cases are next to a wedge, only one front curved glass may be lifted at a time.
2. Removing the Rear Doors

Move the rear doors toward the center of the case.

Individually lift each door up toward the top of the case; pivot the bottom of the door out.
Lift
Handle
Model HV38.3718 shown above.
Your model may slightly differ in
features and/or options.
7
Rear Doors
