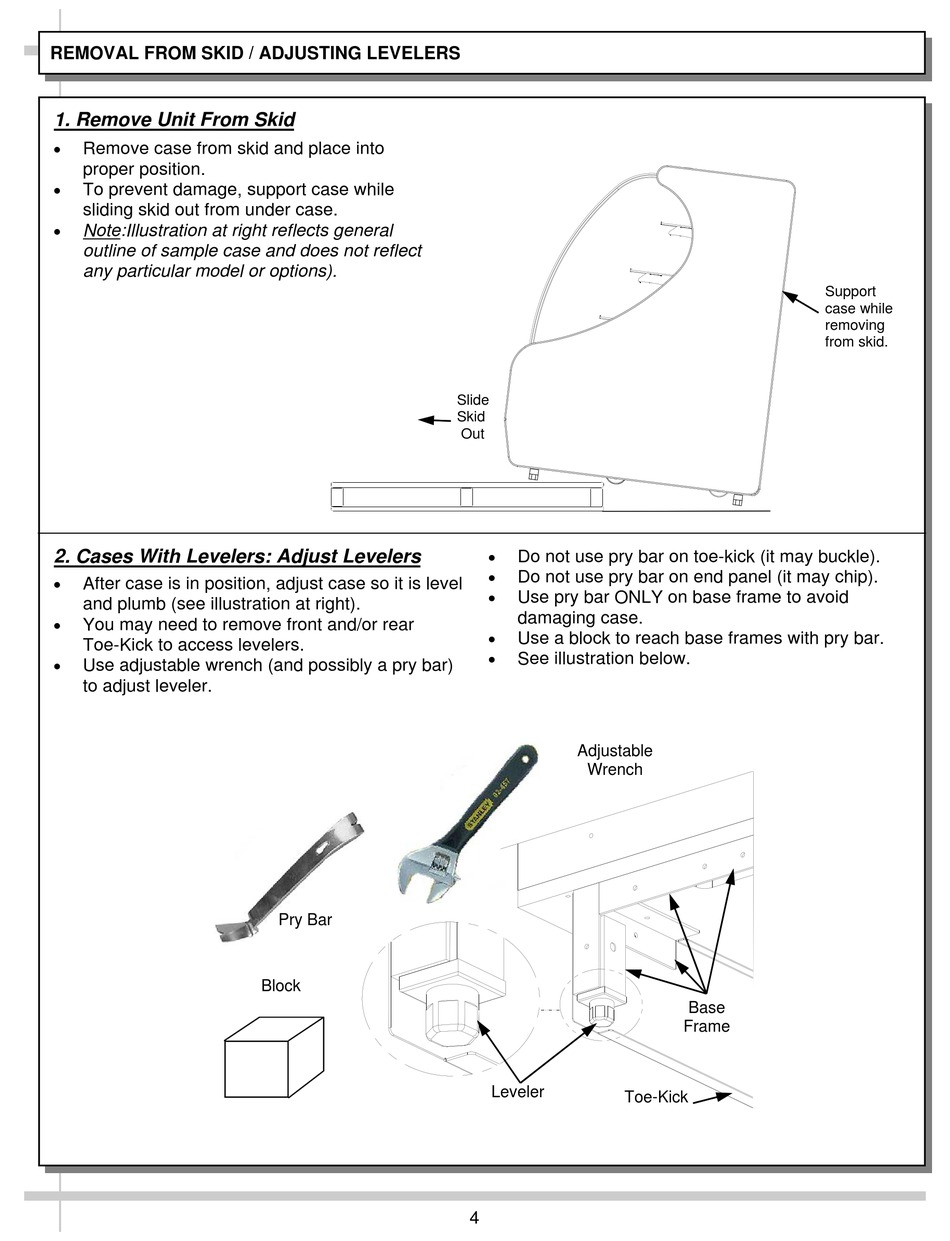

REMOVAL FROM SKID / ADJUSTING LEVELERS

1. Remove Unit From Skid

Remove case from skid and place into
proper position.

To prevent damage, support case while
sliding skid out from under case.

Note:Illustration at right reflects general
outline of sample case and does not reflect
any particular model or options).
2. Cases With Levelers: Adjust Levelers

After case is in position, adjust case so it is level
and plumb (see illustration at right).

You may need to remove front and/or rear
Toe-Kick to access levelers.

Use adjustable wrench (and possibly a pry bar)
to adjust leveler.
Pry Bar
Block
Slide
Skid
Out

Do not use pry bar on toe-kick (it may buckle).

Do not use pry bar on end panel (it may chip).

Use pry bar ONLY on base frame to avoid
damaging case.

Use a block to reach base frames with pry bar.

See illustration below.
Adjustable
Wrench
Leveler
Toe-Kick
4
Support
case while
removing
from skid.
Base
Frame
