Icx35-2 Configuration; End Device Configuration - ProSoft Technology ICX35-HWC User Manual

ICX35-HWC ♦ Industrial Cellular Gateway
3G/4G LTE

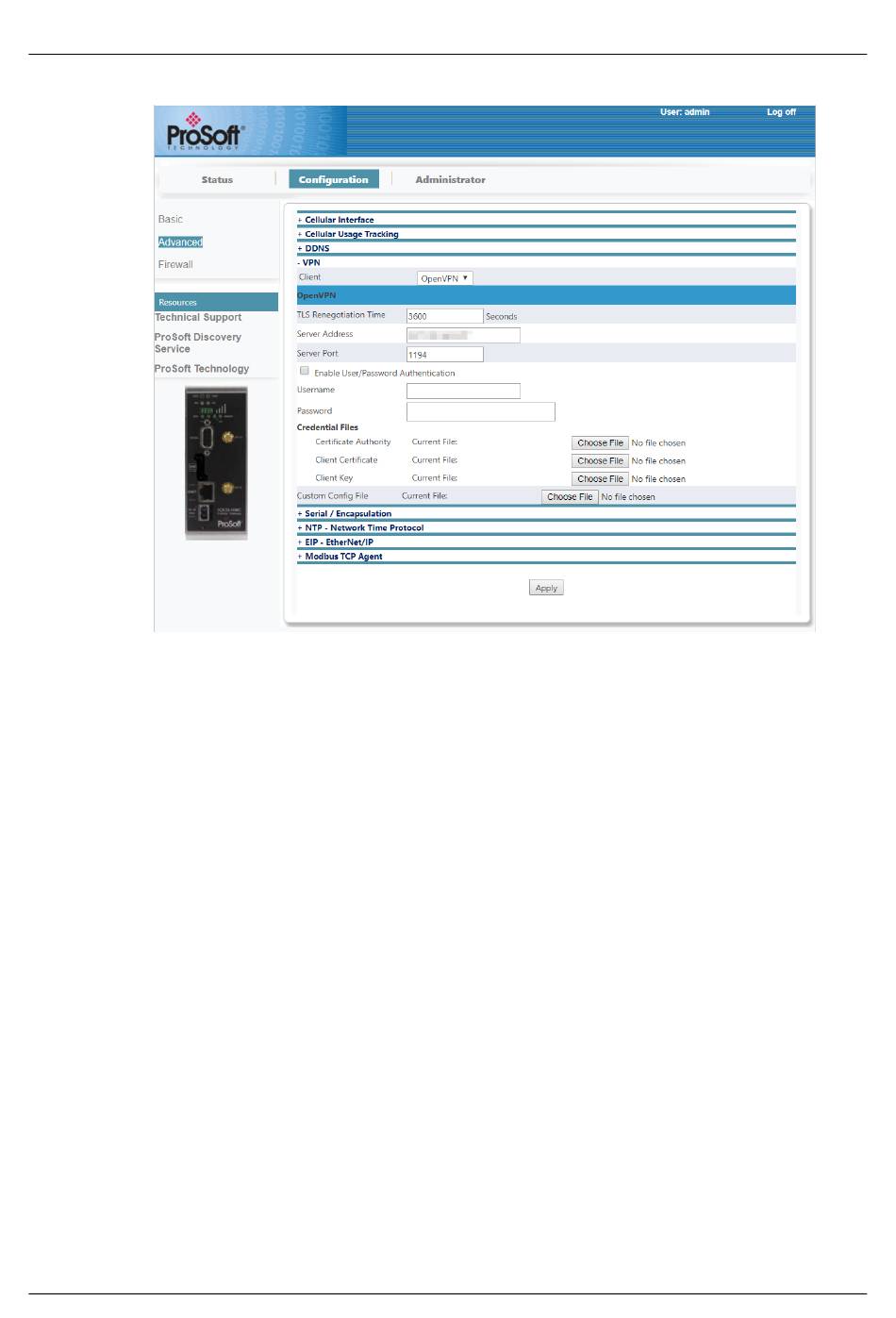

11 Click on the VPN link and select O
12 Enter the TLS Renegotiation Time in the appropriate field (see TLS).
13 Enter the OpenVPN server's IP address in Server IP.
14 Enter the Server Port shown.
15 If user/password authentication is configured on the server, enable the
User/Password Authentication box and provide credentials in the User and
Password fields.
16 Choose and upload the Credential Files. Your Server Administrator will
provide you with the certificate files and location.
17 Click the A

10.3.2 ICX35-2 Configuration

The ICX35-2 is configured using the exact same procedure as the ICX35-1 in this
example. Use the diagram as a guide to fill in the appropriate fields as described.

10.3.3 End Device Configuration

End devices must be configured based on the DHCP assignments. The Gateway
settings must match the LAN IP of the ICX35-HWC. This must be done on both
ICX35-HWC radios.
When setting up Ethernet Bridges, set the IP address to the DHCP assigned
addresses.
ProSoft Technology, Inc.
button.
PPLY
VPN from the Client drop-down list.
PEN
ICX35-HWC Tech Notes
User Manual
Page 115 of 127
