10.2 Pass Through and OpenVPN Example

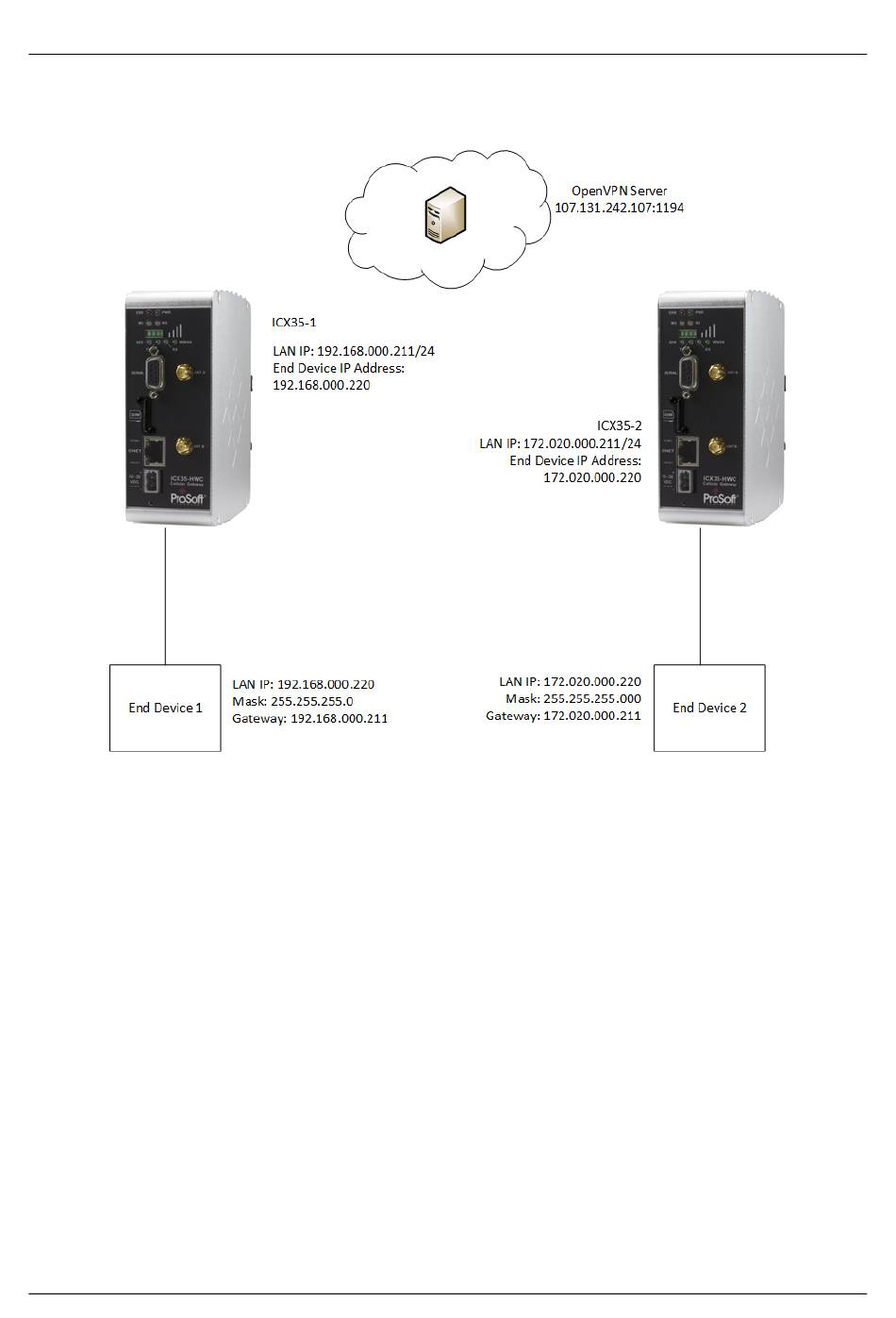

The following diagram illustrates using a Pass Through scenario with OpenVPN:
In this scenario, Virtual OpenVPN addresses are assigned by the VPN server. If the
end device 172.020.000.220 wants to communicate with 192.168.000.211, it must
address the device through the ICX35-HWC VPN address. The ICX35-HWC routes
the request as it would a Pass Through device.
You must establish standard End Device-to-End Device communications before
attempting to configure an OpenVPN tunnel.
