ICX35-HWC ♦ Industrial Cellular Gateway
3G/4G LTE

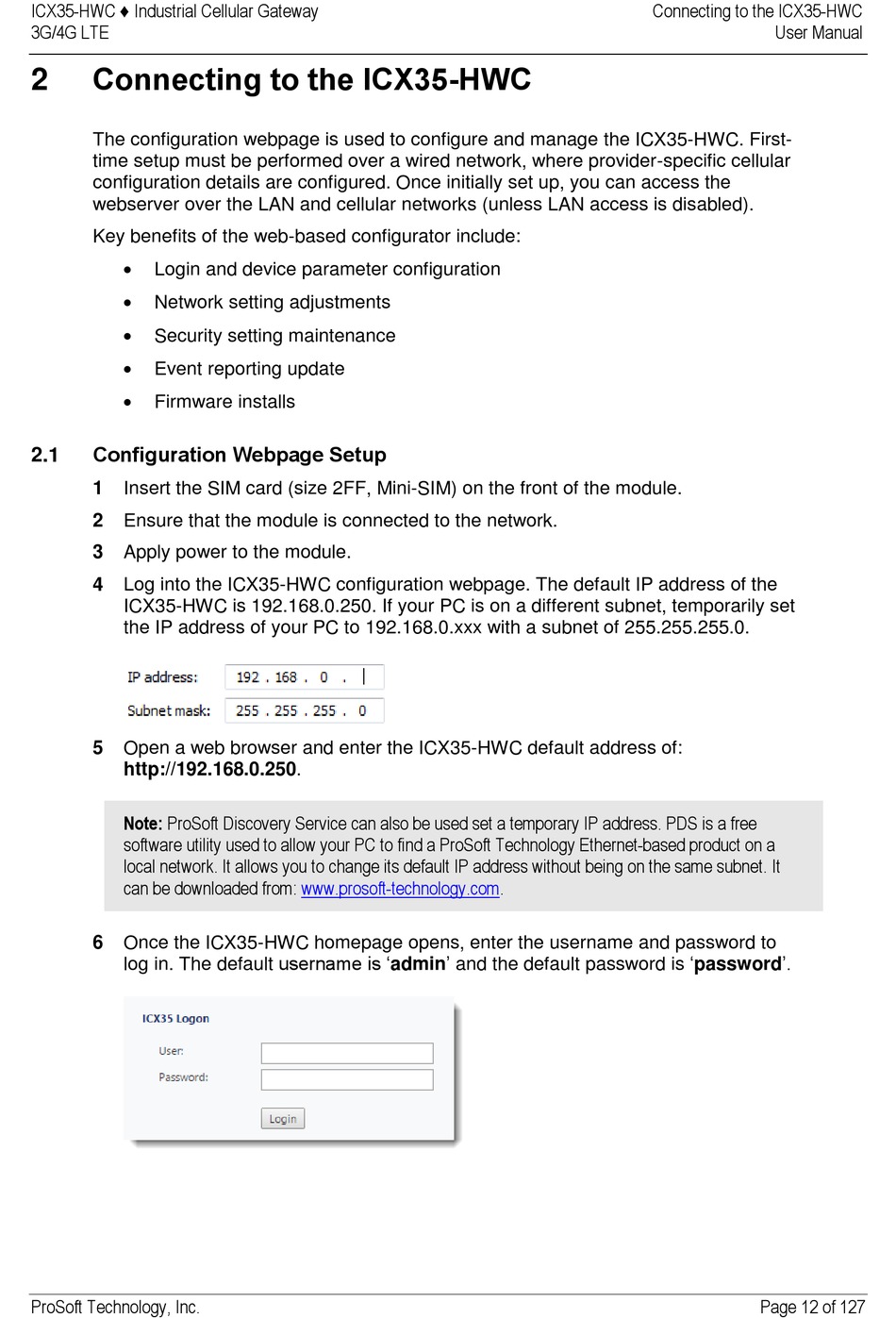

Connecting to the ICX35-HWC

2
The configuration webpage is used to configure and manage the ICX35-HWC. First-
time setup must be performed over a wired network, where provider-specific cellular
configuration details are configured. Once initially set up, you can access the
webserver over the LAN and cellular networks (unless LAN access is disabled).
Key benefits of the web-based configurator include:

Login and device parameter configuration

Network setting adjustments

Security setting maintenance

Event reporting update

Firmware installs

Configuration Webpage Setup

2.1
1 Insert the SIM card (size 2FF, Mini-SIM) on the front of the module.
2 Ensure that the module is connected to the network.
3 Apply power to the module.
4 Log into the ICX35-HWC configuration webpage. The default IP address of the
ICX35-HWC is 192.168.0.250. If your PC is on a different subnet, temporarily set
the IP address of your PC to 192.168.0.xxx with a subnet of 255.255.255.0.
5 Open a web browser and enter the ICX35-HWC default address of:
http://192.168.0.250.
Note: ProSoft Discovery Service can also be used set a temporary IP address. PDS is a free
software utility used to allow your PC to find a ProSoft Technology Ethernet-based product on a
local network. It allows you to change its default IP address without being on the same subnet. It
can be downloaded from: www.prosoft-technology.com.
6 Once the ICX35-HWC homepage opens, enter the username and password to
log in. The default username is 'admin' and the default password is 'password'.
