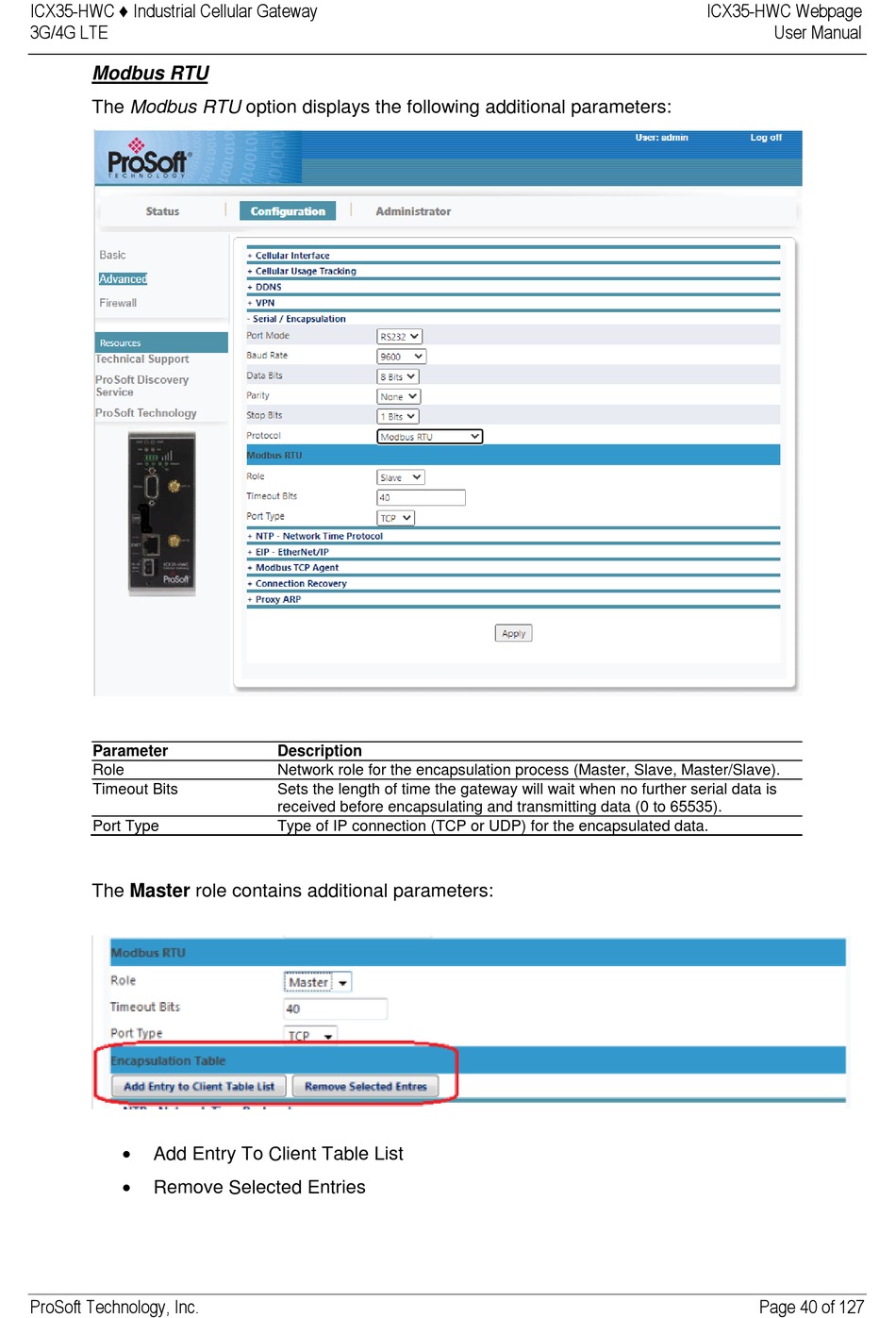

ProSoft Technology ICX35-HWC User Manual page 40

ICX35-HWC ♦ Industrial Cellular Gateway
3G/4G LTE
Modbus RTU
The Modbus RTU option displays the following additional parameters:
Parameter
Role
Timeout Bits
Port Type
The Master role contains additional parameters:

Add Entry To Client Table List

Remove Selected Entries
ProSoft Technology, Inc.
Description
Network role for the encapsulation process (Master, Slave, Master/Slave).
Sets the length of time the gateway will wait when no further serial data is
received before encapsulating and transmitting data (0 to 65535).
Type of IP connection (TCP or UDP) for the encapsulated data.
ICX35-HWC Webpage
User Manual
Page 40 of 127
