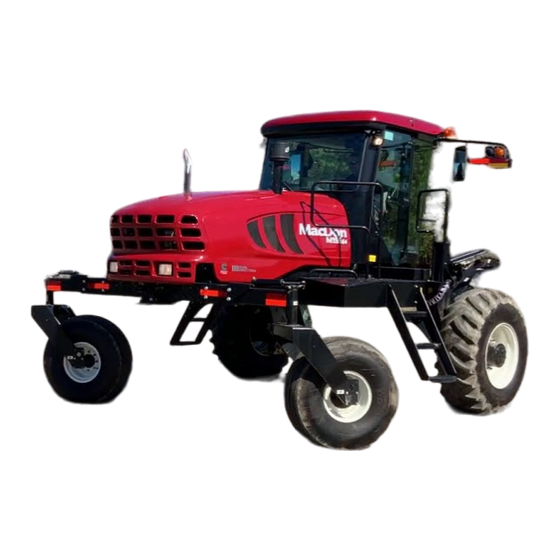

Page 1 M155E4 Self-Propelled Windrower Unloading and Assembly Instructions (North America) 147764 Revision A 2016 Model Year Original Instruction The harvesting specialists.
Page 2 ® ® Featuring the Dual Direction and Ultra Glide suspension on the M155E4. Published in October, 2015...
Page 3 The following conventions are used in this document: Right- and left-hand are determined from the operator’s position. The front of the windrower is the side that faces the crop. NOTE: Keep your MacDon publications up-to-date. The most current version can be downloaded from our website (www.macdon.com) or from our Dealer-only site (https://portal.macdon.com) (login required). 147764...
Page 4 Updated inside front cover illustration to match those Inside Front Cover used in other M155E4 manuals and catalogs. Added note to keep MacDon publications up-to-date. Introduction, page i Revised walking beam bolt torque sequence. 3.3 Repositioning Caster Wheels, page 13 Added note to ensure that there is enough diesel 3.7 Starting Engine, page 18...
Page 5: Table Of Contents
TABLE OF CONTENTS Introduction ............................i List of Revisions ..........................ii Safety ..............................1 Signal Words........................... 1 General Safety ..........................2 Safety Signs ............................ 4 Unloading the Windrower........................5 Using Two Forklifts to Unload Windrower ..................5 Using One Forklift to Unload Windrower .................... 7 2.2.1 Method 1: Pulling from Trailer Deck...................
Page 6 TABLE OF CONTENTS 4.4.5 Setting the Rotary Disc Overload Speed .................. 84 4.4.6 Setting the Hydraulic Overload Pressure.................. 85 4.4.7 Setting the Header Index Mode ....................86 4.4.8 Setting the Return to Cut Mode ....................87 4.4.9 Setting the Header Cut Width....................88 4.4.10 Activating the Double Windrow Attachment (DWA) ..............
Page 7 TABLE OF CONTENTS 5.11.1 Checking Engine Warning Lights ....................145 5.11.2 Checking Engine Startup .......................145 5.11.3 Checking Engine Speed ......................146 5.11.4 Checking Gauges and Cab Display Module (CDM) Display on an M155E4 .......146 5.11.5 Checking Electrical System....................147 5.11.6 Checking Operator's Presence System...................147 5.11.7 Checking Exterior Lights ......................149 Auto Road Light......................151...
Page 9: Safety
1 Safety 1.1 Signal Words Three signal words, DANGER, WARNING, and CAUTION, are used to alert you to hazardous situations. The appropriate signal word for each situation has been selected using the following guidelines: DANGER Indicates an imminently hazardous situation that, if not avoided, will result in death or serious injury. WARNING Indicates a potentially hazardous situation that, if not avoided, could result in death or serious injury.
Page 10: General Safety
SAFETY 1.2 General Safety CAUTION The following are general farm safety precautions that should be part of your operating procedure for all types of machinery. Protect yourself. • When assembling, operating, and servicing machinery, wear all the protective clothing and personal safety devices that could be necessary for the job at hand.
Page 11 SAFETY • Wear close-ﬁtting clothing and cover long hair. Never wear dangling items such as scarves or bracelets. • Keep all shields in place. Never alter or remove safety equipment. Make sure driveline guards can rotate independently of the shaft and can telescope freely. •...
Page 12: Safety Signs
• If original parts on which a safety sign was installed are replaced, be sure the repair part also bears the current safety sign. • Safety signs are available from MacDon Parts. Figure 1.7: Operator’s Manual Decal 147764 Revision A...
Page 13: Unloading The Windrower
2 Unloading the Windrower You can use one or two forklifts to unload the windrower. Refer to 2.1 Using Two Forklifts to Unload Windrower, page 5 2.2 Using One Forklift to Unload Windrower, page 2.1 Using Two Forklifts to Unload Windrower Figure 2.1: Two-Forklift Unloading Method CAUTION To prevent injury to bystanders and avoid striking them with machinery, do NOT allow people to stand in...
Page 14 UNLOADING THE WINDROWER 2. Set forklift tines to the widest possible setting. 3. Position one forklift on either side of the trailer, and position the forks under the windrower frame. NOTE: The windrower’s center of gravity is approximately 55 in. (1397 mm) rearwards from the center of the drive wheel.
Page 15: Using One Forklift To Unload Windrower
UNLOADING THE WINDROWER 2.2 Using One Forklift to Unload Windrower There are two different methods for unloading a windrower using one forklift. If using a chain to pull the windrower to a ground level that is equal to, or slightly lower than, the height of the trailer deck, refer to 2.2.1 Method 1: Pulling from Trailer Deck, page 7.
Page 16: Method 2: Lifting From Trailer Deck
UNLOADING THE WINDROWER 2.2.2 Method 2: Lifting from Trailer Deck CAUTION Equipment used for unloading must meet or exceed the speciﬁed requirements. Using inadequate equipment may result in chain breakage, vehicle tipping, or machine damage. Table 2.4 Lifting Vehicle Requirements Minimum Capacity 11,000 lb.
Page 17: Assembling The Windrower
3 Assembling the Windrower Perform all procedures in this chapter in the order in which they are listed. 3.1 Repositioning Right Leg The right cab-forward leg requires repositioning from shipping to ﬁeld conﬁguration. 1. Support the front of the windrower with a stand (A) (or equivalent) so the right leg is off the ground.
Page 18 ASSEMBLING THE WINDROWER 5. Remove second pin (A) using a slide hammer and special welded nut and washer to ﬁt in front of Diesel Exhaust Fluid (DEF) tank. NOTE: Second pin (A) must be tapped forward and extracted through the front of the frame due to the position of the DEF tank.
Page 19: Installing Drive Wheel
ASSEMBLING THE WINDROWER 3.2 Installing Drive Wheel 1. Support the front of the windrower off the ground using stand (A). Figure 3.6: Windrower on Stand 2. Position drive wheel (A) against the wheel drive hub (B) so the air valve (C) is on the outside and the tire tread (D) points in cab-forward direction.
Page 20 ASSEMBLING THE WINDROWER 5. Line up the holes in the rim with the studs on the wheel drive hub and install wheel nuts (A). IMPORTANT: To avoid damage to wheel rims and studs, tighten nuts by hand. Do NOT use an impact ®...
Page 21: Repositioning Caster Wheels
ASSEMBLING THE WINDROWER 3.3 Repositioning Caster Wheels As an option, the rear casters can be adjusted to a narrow tread width which allows for loading and shipping without having to remove them. A narrow tread width is better suited for smaller headers because it allows more space to the uncut crop and provides more manoeuvrability around poles, irrigation inlets, and other obstacles.
Page 22 ASSEMBLING THE WINDROWER 4. Ensure caster wheels are positioned at equal distances from the center of the windrower. Figure 3.11: Widest Tread Width Shown 5. Position bracket (A) as shown. 6. Install two 3/4 in. x 2-3/4 in. hex head bolts (B) at the back outboard location, and install two 3/4 in.
Page 23: Unpacking Ignition Keys
ASSEMBLING THE WINDROWER 3.4 Unpacking Ignition Keys 1. Remove wing nut (A) from fuse box cover (B) and remove cover. Figure 3.13: Fuse Box 2. Remove tape and keys (A) from inside the cover. 3. Unlock cab doors and place keys on console. 4.
Page 24: Installing Steps
ASSEMBLING THE WINDROWER 3.5 Installing Steps NOTE: Procedure for left-hand installation shown–right-hand installation similar. 1. Remove two bolts (A) securing steps to platform and remove steps. 2. Remove bolt (B) and retain for reinstallation. Figure 3.15: Left-Hand Steps in Shipping Position 3.
Page 25: Connecting Batteries
ASSEMBLING THE WINDROWER 3.6 Connecting Batteries DANGER To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and remove the key from the ignition before leaving the operator’s seat for any reason. 1. Open the right-hand (cab-forward) maintenance platform.
Page 26: Starting Engine
ASSEMBLING THE WINDROWER 3.7 Starting Engine 1. Ensure there is sufﬁcient fuel and diesel exhaust ﬂuid (DEF) for a 15 minute run. NOTE: Ensure there is sufﬁcient diesel exhaust ﬂuid (DEF) to avoid DEF level warnings. Refer to 3.12 Fuel and Diesel Exhaust Fluid (DEF) Display Module, page 2.
Page 27 ASSEMBLING THE WINDROWER IMPORTANT: • Do NOT operate starter for longer than 15 seconds at a time. • If engine does NOT start, wait at least two minutes before trying again. • After the third 15 second crank attempt, allow the starter motor to cool for 10 minutes before further cranking attempts.
Page 28 ASSEMBLING THE WINDROWER Problem Solution • Test the battery Low battery output • Check battery electrolyte level Poor battery connection • Clean and tighten loose connections Faulty starter • Refer to the windrower technical manual Wiring shorted, circuit breaker open •...
Page 29: Installing Am/Fm Radio
ASSEMBLING THE WINDROWER 3.8 Installing AM/FM Radio Windrowers are designed to accept a DIN E style AM/FM radio with a depth (X) of 161 mm and having a 5 mm threaded stud (A) centered on the rear for support. Adjustments are possible if the radio falls outside these parameters.
Page 30 ASSEMBLING THE WINDROWER 4. Remove the cutout by cutting the tabs (A) in the panel. Remove sharp edges from the panel. Figure 3.25: Panel 5. Position receptacle (A) (supplied with radio) into opening and secure by bending tabs (B) on receptacle against panel.
Page 31 ASSEMBLING THE WINDROWER 7. Ensure the radio has a six-pin connector (Packard #2977042) and a terminal arrangement as shown at right. This enables the radio to connect to the windrower’s six-pin radio connector wiring harness. 8. Attach the following two additional wires from the wiring harness to the radio: a.
Page 32 ASSEMBLING THE WINDROWER 15. Remove protective cover (A) from antenna mount on cab roof and thread antenna onto base until hand tight. NOTE: Store protective cover in cab and reinstall to protect antenna mount if antenna needs to be removed. 16.
Page 33: Installing The Slow Moving Vehicle (Smv) Sign
ASSEMBLING THE WINDROWER 3.9 Installing the Slow Moving Vehicle (SMV) Sign 1. Install the SMV sign (A) (shipped inside the cab) onto the windrower in accordance with the instructions supplied with the sign. SMV signs must be visible when travelling on the road. Figure 3.32: Engine-Forward Location Figure 3.33: Cab-Forward Location 147764...
Page 34: Attaching Headers
ASSEMBLING THE WINDROWER 3.10 Attaching Headers 3.10.1 Attaching a D-Series Header D50, D60, and D65 headers can be attached to an M155E4 Self-Propelled Windrower. The M155E4 Self-Propelled Windrower is factory-equipped to run a D-Series Draper Header. If installing an HC10 Hay Conditioner, reverser kit MD #B4656 is recommended.
Page 35: Attaching A D-Series Header: Hydraulic Center-Link With Optional Self-Alignment
ASSEMBLING THE WINDROWER 1. Remove pin (B) from boot (A). Figure 3.36: Header Boot 2. Position boot (B) onto lift linkage (A) and reinstall pin (C). Pin may be installed from either side of boot. 3. Secure pin (C) with hairpin (D). 4.
Page 36 ASSEMBLING THE WINDROWER 1. Remove hairpin (A) from pins (B), and remove pins from both header legs. Figure 3.38: Header Leg CAUTION Check to be sure all bystanders have cleared the area. IMPORTANT: Remove protective cover from exhaust stack prior to starting engine.
Page 37 ASSEMBLING THE WINDROWER 4. Drive the windrower slowly forward until the boots (A) enter the header legs (B). Continue driving slowly forward until lift linkages contact the support plates in the header legs and the header nudges forward. 5. Ensure the lift linkages are properly engaged in the header legs and are contacting the support plates.
Page 38 ASSEMBLING THE WINDROWER CAUTION Check to be sure all bystanders have cleared the area. 10. Press the header up switch (A) to raise header to maximum height. NOTE: If one end of the header does NOT fully rise, rephase the lift cylinders as follows: a.
Page 39 ASSEMBLING THE WINDROWER 12. Install pin (B) through the header leg (engaging U-bracket in lift linkage) on both sides and secure with hairpin (A). 13. Raise header stand (D) to storage position by pulling spring pin (C) and lifting stand into uppermost position. Release spring pin.
Page 40: Attaching A D-Series Header: Hydraulic Center-Link Without Self-Alignment
ASSEMBLING THE WINDROWER CAUTION Check to be sure all bystanders have cleared the area. 17. Start the engine and activate the header down switch (A) on the GSL to fully lower the header. 18. Stop engine and remove key from ignition. Figure 3.49: GSL 19.
Page 41 ASSEMBLING THE WINDROWER DANGER To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and remove the key from the ignition before leaving the operator’s seat for any reason. 1. Remove hairpin (A) from pins (B), and remove pins from both header legs.
Page 42 ASSEMBLING THE WINDROWER 4. Drive the windrower slowly forward until the boots (A) enter the header legs (B). Continue driving slowly forward until lift linkages contact the support plates in the header legs and the header nudges forward. 5. Ensure the lift linkages are properly engaged in the header legs and are contacting the support plates.
Page 43 ASSEMBLING THE WINDROWER CAUTION Check to be sure all bystanders have cleared the area. 10. Start the engine. 11. Press the header up switch (A) to raise header to maximum height. NOTE: If one end of the header does NOT fully rise, rephase the lift cylinders as follows: a.
Page 44 ASSEMBLING THE WINDROWER 13. Install pin (B) through the header leg (engaging U-bracket in lift linkage) on both sides and secure with hairpin (A). 14. Raise header stand (D) to storage position by pulling spring pin (C) and lifting stand into uppermost position. Release spring pin.
Page 45 ASSEMBLING THE WINDROWER CAUTION Check to be sure all bystanders have cleared the area. 18. Start the engine and activate the header down switch (A) on the GSL to fully lower the header. 19. Stop engine and remove key from ignition. Figure 3.63: GSL 20.
Page 46: Attaching An A-Series Header
ASSEMBLING THE WINDROWER 3.10.2 Attaching an A-Series Header A30-D, A30-S, and A40-D headers can be attached to an M155E4 Self-Propelled Windrower. The M155E4 Self-Propelled Windrower is factory-equipped to run an A-Series Auger Header. Windrowers equipped with A-Series hydraulics have four header-drive hoses on the left-hand side.
Page 47: Attaching An A-Series Header: Hydraulic Center-Link With Optional Self-Alignment
ASSEMBLING THE WINDROWER Attaching an A-Series Header: Hydraulic Center-Link with Optional Self-Alignment DANGER To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and remove the key from the ignition before leaving the operator’s seat for any reason. 1.
Page 48 ASSEMBLING THE WINDROWER 3. Activate the reel up switch (A) on the GSL to raise the center-link until the hook is above the attachment pin on the header. IMPORTANT: If the center-link is too low, it may contact the header as the windrower approaches the header for hookup.
Page 49 ASSEMBLING THE WINDROWER 6. Adjust position of the center-link cylinder (A) with the reel up and reel down switches on the GSL until the hook is positioned above the header attachment pin. IMPORTANT: Hook release must be down to enable self-locking mechanism.
Page 50 ASSEMBLING THE WINDROWER 10. Engage safety props on both lift cylinders as follows: a. Stop engine and remove key from ignition. b. Pull lever (A) and rotate towards the header to release and lower safety prop (B) onto the lift cylinder. c.
Page 51 ASSEMBLING THE WINDROWER 12. Remove lynch pin from clevis pin (A) in stand (B). 13. Hold stand (B) and remove pin (A). 14. Move stand (B) to storage position by inverting and relocating onto bracket as shown. Reinsert clevis pin (A) and secure with lynch pin. Figure 3.77: Header Stand 15.
Page 52: Attaching An A-Series Header: Hydraulic Center-Link Without Self-Alignment
ASSEMBLING THE WINDROWER CAUTION Check to be sure all bystanders have cleared the area. 18. Start the engine and activate the header down switch (A) on the GSL to fully lower the header. 19. Stop engine and remove key from ignition. Figure 3.80: GSL 20.
Page 53 ASSEMBLING THE WINDROWER CAUTION To prevent damage to the lift system when lowering header lift linkages without a header or weight box attached to the windrower, ensure the ﬂoat engagement pin is installed in storage position (B) and NOT in engaged position (A). Figure 3.83: Header Float Linkage CAUTION Check to be sure all bystanders have cleared the area.
Page 54 ASSEMBLING THE WINDROWER 4. Drive the windrower slowly forward until the windrower feet (A) enter the header boots (B). Continue driving slowly forward until the feet engage the boots and the header nudges forward. Figure 3.86: Header Boot 5. Use the following GSL functions to position the center-link hook above the header attachment pin: •...
Page 55 ASSEMBLING THE WINDROWER CAUTION Check to be sure all bystanders have cleared the area. 9. Start the engine. 10. Press the header up switch (A) to raise header to maximum height. NOTE: If one end of the header does NOT fully rise, rephase the lift cylinders as follows: a.
Page 56 ASSEMBLING THE WINDROWER 12. Install clevis pin (A) through boot and foot and secure with hairpin. Repeat for opposite boot. IMPORTANT: Ensure clevis pin (A) is fully inserted and hairpin is installed behind bracket. Figure 3.91: Header Boot 13. Remove lynch pin from clevis pin (A) in stand (B). 14.
Page 57 ASSEMBLING THE WINDROWER 17. Disengage safety prop by turning lever (A) downwards to release and lower stop until lever locks into vertical position. 18. Repeat for opposite safety prop. Figure 3.94: Safety Prop CAUTION Check to be sure all bystanders have cleared the area. 19.
Page 58: Attaching An R-Series Header
ASSEMBLING THE WINDROWER 3.10.3 Attaching an R-Series Header R-Series Rotary Disc Headers (R80 and R85) can be attached to an M155E4 Self-Propelled Windrower. The M155E4 Self-Propelled Windrower can operate 13-foot R80 and R85 Rotary Disc Headers only. These headers are shipped without the motor or hoses installed, so a separate motor, hose bundle, and hydraulic valve kit is required to operate the header.
Page 59 ASSEMBLING THE WINDROWER CAUTION To prevent damage to the lift system when lowering header lift linkages without a header or weight box attached to the windrower, ensure the ﬂoat engagement pin is installed in storage position (B) and NOT in engaged position (A). Figure 3.99: Header Float Linkage CAUTION Check to be sure all bystanders have cleared the area.
Page 60 ASSEMBLING THE WINDROWER 4. Drive the windrower slowly forward until the windrower feet (A) enter the header boots (B). Continue driving slowly forward until the feet engage the boots and the header nudges forward. Figure 3.102: Header Boot 5. Use the following GSL functions to position the center-link hook above the header attachment pin: •...
Page 61 ASSEMBLING THE WINDROWER CAUTION Check to be sure all bystanders have cleared the area. 9. Press the header up switch (A) to raise header to maximum height. NOTE: If one end of the header does NOT fully rise, rephase the lift cylinders as follows: a.
Page 62 ASSEMBLING THE WINDROWER 11. Install clevis pin (A) through boot and foot and secure with hairpin (B). Repeat for opposite side. IMPORTANT: Ensure clevis pin (A) is fully inserted and hairpin is installed behind bracket. Figure 3.107: Header Boot 12. Remove clevis pin from storage position (B) in linkage and insert into hole (A) to engage ﬂoat springs.
Page 63: Attaching An R-Series Header: Hydraulic Center-Link Without Self-Alignment
ASSEMBLING THE WINDROWER CAUTION Check to be sure all bystanders have cleared the area. 15. Start the engine and activate the header down switch (A) on the GSL to fully lower the header. 16. Stop engine and remove key from ignition. Figure 3.110: GSL 17.
Page 64 ASSEMBLING THE WINDROWER CAUTION To prevent damage to the lift system when lowering header lift linkages without a header or weight box attached to the windrower, ensure the ﬂoat engagement pin is installed in storage position (B) and NOT in engaged position (A). Figure 3.113: Header Float Linkage CAUTION Check to be sure all bystanders have cleared the area.
Page 65 ASSEMBLING THE WINDROWER 4. Drive the windrower slowly forward until the windrower feet (A) enter the header boots (B). Continue driving slowly forward until the feet engage the boots and the header nudges forward. Figure 3.116: Header Boot 5. Use the following GSL functions to position the center-link hook above the header attachment pin: •...
Page 66 ASSEMBLING THE WINDROWER CAUTION Check to be sure all bystanders have cleared the area. 9. Start the engine. 10. Press the header up switch (A) to raise header to maximum height. NOTE: If one end of the header does NOT fully rise, rephase the lift cylinders as follows: a.
Page 67 ASSEMBLING THE WINDROWER 12. Install clevis pin (A) through boot and foot and secure with hairpin (B). Repeat for opposite side. IMPORTANT: Ensure clevis pin (A) is fully inserted and hairpin is installed behind bracket. Figure 3.121: Header Boot 13. Remove clevis pin from storage position (B) in linkage and insert into hole (A) to engage ﬂoat springs.
Page 68 ASSEMBLING THE WINDROWER CAUTION Check to be sure all bystanders have cleared the area. 16. Start the engine and activate the header down switch (A) on the GSL to fully lower the header. 17. Stop engine and remove key from ignition. Figure 3.124: GSL 18.
Page 69: Lubricating The Windrower
ASSEMBLING THE WINDROWER 3.11 Lubricating the Windrower Table 3.3 Recommended Lubricant Speciﬁcation Description High temperature, extreme pressure (EP2) As required unless SAE Multi-Purpose performance with 1% max molybdenum disulphide otherwise speciﬁed. (NLGI Grade 2) lithium base. 3.11.1 Lubrication Procedure DANGER To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and remove the key from the ignition before leaving the operator’s seat for any reason.
Page 70: Lubrication Points
ASSEMBLING THE WINDROWER 3.11.2 Lubrication Points Figure 3.126: Lubrication Points A - Forked Caster Wheel Bearing (2 Places) (Outer – Both Wheels) B - Top Link (2 Places) (Both Sides) C - Lubrication Decal (MD #183411) D - Caster Pivot (Both Sides) E - Forked/Formed Caster Wheel Bearing (2 Places) (Inner –...
Page 71: Fuel And Diesel Exhaust Fluid (Def) Display Module
ASSEMBLING THE WINDROWER 3.12 Fuel and Diesel Exhaust Fluid (DEF) Display Module Figure 3.127: Fuel and Diesel Exhaust Fluid (DEF) Display Module A - Fuel and DEF Level B - High Exhaust System Temperature (HEST) C - Selective Catalytic Reduction (SCR) System Cleaning Inhibit D - SCR System Cleaning Forced Fuel and DEF level •...
Page 72 ASSEMBLING THE WINDROWER WARNING Do NOT park vehicle indoors when HEST lamp is on. • When the HEST warning is active, the switch (icon) turns black and a warning lamp is backlit with amber light at location (A) (warning lamp not shown). •...
Page 73 ASSEMBLING THE WINDROWER IMPORTANT: • SCR System Cleaning inhibit (A) allows the Operator to temporarily prevent the machine from performing an SCR System Cleaning. It should be used only when the environment is unsafe to allow high exhaust temperatures (e.g., inside of a building). •...
Page 75: Cab Display Module (Cdm)
4 Cab Display Module (CDM) Although the other procedures in this manual are intended to be followed in the order in which they are listed, the sections in the “Cab Display Module (CDM)” chapter can be referred to in any order according to your speciﬁc requirements.
Page 76 CAB DISPLAY MODULE (CDM) Menu Item Scroll Backward: Displays value under menu item. • Push to scroll backward • Hold down for fast scroll Program Switch: Places monitor into program mode. Press while pressing select switch. NOTE: The following menus are available when ignition key is set to RUN: •...
Page 77: Cab Display Options
The procedures listed in this section are current for cab display module (CDM) software version C414 and windrower control module (WCM) E221. The WCM is supplied pre-loaded with the latest released version of the operating software. Any subsequent updates will be made available via internet download from the MacDon Dealer Portal (https://portal.macdon.com).
Page 78: Changing The Windrower Display Units
CAB DISPLAY MODULE (CDM) 4. Press right (C) arrow select YES. Press SELECT (D). • DISPLAY LANGUAGE? is displayed on the upper line. • Default language is displayed on the lower line. 5. Press left right arrow select preferred language. NOTE: English, Russian, and Spanish language options are available on windrowers.
Page 79: Adjusting The Cab Display Buzzer Volume
CAB DISPLAY MODULE (CDM) 5. Press SELECT (D) until DISPLAY UNITS? is displayed on the upper line. • Default setting is displayed on the lower line. 6. Press left (B) or right (C) arrow to select either METRIC or IMPERIAL speed display. 7.
Page 80: Adjusting The Cab Display Backlighting
CAB DISPLAY MODULE (CDM) 5. Press SELECT (D) until BUZZER VOLUME is displayed on the upper line. • Previous setting is displayed on the lower line. 6. Press left (B) or right (C) arrows to adjust buzzer volume. 7. Press PROGRAM (A) to exit Programming Mode or press SELECT (D) to proceed to next CAB DISPLAY SETUP? action.
Page 81: Adjusting The Cab Display Contrast
CAB DISPLAY MODULE (CDM) 5. Press SELECT (D) until BACKLIGHTING is displayed on the upper line. • Default setting is displayed on the lower line. 6. Press left (B) or right (C) arrows to adjust display backlighting. 7. Press PROGRAM (A) to exit Programming Mode or press SELECT (D) to proceed to next CAB DISPLAY SETUP? action.
Page 82 CAB DISPLAY MODULE (CDM) 5. Press SELECT (D) until DISPLAY CONTRAST is displayed on the upper line. • Default setting is displayed on the lower line. 6. Press left (B) or right (C) arrows to adjust display contrast. 7. Press PROGRAM (A) to exit Programming Mode or press SELECT (D) to proceed to next CAB DISPLAY SETUP? action.
Page 83: Calibrating The Header Sensors
CAB DISPLAY MODULE (CDM) 4.3 Calibrating the Header Sensors Sensor calibration programs the windrower control module (WCM) with settings for the attached header. 4.3.1 Calibrating the Header Height Sensor NOTE: • The header MUST be attached to the windrower to perform this procedure. The cab display module (CDM) automatically adjusts its programming for each header.
Page 84 CAB DISPLAY MODULE (CDM) CAUTION Check to be sure all bystanders have cleared the area. 6. Press and hold the HEADER UP (C) button on the ground speed lever (GSL). • CALIBRATING HEIGHT is displayed on the upper line. • RAISE HEADER HOLD is displayed on the lower line.
Page 85: Calibrating The Header Tilt Sensor
CAB DISPLAY MODULE (CDM) 4.3.2 Calibrating the Header Tilt Sensor NOTE: • The header MUST be attached to the windrower to perform this procedure. The cab display module (CDM) automatically adjusts its programming for each header. • The engine MUST be running to perform this procedure. 1.
Page 86 CAB DISPLAY MODULE (CDM) CAUTION Check to be sure all bystanders have cleared the area. 6. Press and hold the HEADER TILT EXTEND (B) button on the ground speed lever (GSL). • CALIBRATING TILT is displayed on the upper line. •...
Page 87: Calibrating The Header Float Sensors
CAB DISPLAY MODULE (CDM) 4.3.3 Calibrating the Header Float Sensors NOTE: • The header MUST be attached to the windrower to perform this procedure. The cab display module (CDM) automatically adjusts its programming for each header. • The Operator can use the left or right FLOAT buttons on the cab display module (CDM) to perform this procedure. 1.
Page 88 CAB DISPLAY MODULE (CDM) 6. Press and hold FLOAT + button (A) on the CDM. • CALIBRATING FLOAT displayed upper line. • FLOAT ( + ) HOLD is displayed on the lower line. NOTE: The word HOLD will ﬂash during calibration. FLOAT (+) DONE will display on the lower line once calibration is complete.
Page 89: Programming The Windrower
CAB DISPLAY MODULE (CDM) 4.4 Programming the Windrower The windrower can be programmed to meet changing crop conditions, activate newly added options, indicate a change of header type, or increase the comfort level of the Operator. 4.4.1 Activating the Hydraulic Center-Link 1.
Page 90: Setting The Header Knife Speed
CAB DISPLAY MODULE (CDM) 1. Turn ignition key to RUN, or start the engine. Refer to 3.7 Starting Engine, page 2. Press PROGRAM (A) and SELECT (C) on cab display module (CDM) to enter Programming Mode. • WINDROWER SETUP? is displayed on the upper line.
Page 91: Setting The Knife Overload Speed
CAB DISPLAY MODULE (CDM) 4. Press left (B) or right (C) arrows to select knife speed. Press SELECT (D). 5. Press PROGRAM (A) to exit Programming Mode or press SELECT (D) to proceed to next WINDROWER SETUP action. Figure 4.34: Knife Speed 4.4.4 Setting the Knife Overload Speed NOTE: •...
Page 92: Setting The Rotary Disc Overload Speed
CAB DISPLAY MODULE (CDM) 4. Press SELECT (D) until KNIFE OVERLOAD SPD? is displayed on the upper line. • Current overload speed is displayed on the lower line. NOTE: Default setting is -300 spm. Range is -500 to -100 spm. 5.
Page 93: Setting The Hydraulic Overload Pressure
CAB DISPLAY MODULE (CDM) 4. Press SELECT (D) until DISK OVERLOAD SPD? is displayed on the upper line. • The current overload speed is displayed on the lower line. NOTE: Default setting is -300 rpm. Range is -500 to -100 rpm. 5.
Page 94: Setting The Header Index Mode
CAB DISPLAY MODULE (CDM) 4. Press SELECT (D) until OVERLOAD PRESSURE? is displayed on the upper line. • The current overload pressure is displayed on lower line. NOTE: Pressure range is 2500–5000 psi (17,237–34,474 kPa). 5. Press left (B) or right (C) arrows to set hydraulic overload pressure.
Page 95: Setting The Return To Cut Mode
CAB DISPLAY MODULE (CDM) 4. Press SELECT (D) until HEADER INDEX MODE? is displayed on the upper line. • REEL & CONVEYOR or REEL ONLY is displayed on the lower line. 5. Press left (B) or right (C) arrows to set header index mode.
Page 96: Setting The Header Cut Width
CAB DISPLAY MODULE (CDM) 4.4.9 Setting the Header Cut Width NOTE: • The header MUST be attached to the windrower to perform this procedure. The cab display module (CDM) automatically adjusts its programming for each header. • Header cut width is less than actual header width to accurately measure number of acres cut. •...
Page 97 CAB DISPLAY MODULE (CDM) 1. Turn ignition key to RUN, or start the engine. 2. Press PROGRAM (A) and SELECT (C) on cab display module (CDM) to enter Programming Mode. • WINDROWER SETUP? is displayed on the upper line. • NO/YES is displayed on the lower line. 3.
Page 98: Setting The Auto Raise Height
CAB DISPLAY MODULE (CDM) 7. Press right (C) arrow to select YES. Press SELECT (D). • DWA AUTO UP/DOWN? is displayed on the upper line. • NO/YES is displayed on the lower line. NOTE: If the Operator selects YES, the DWA Auto-Up function will be activated by the GSL Reel Fore-Aft button.
Page 99: Activating The Hay Conditioner
CAB DISPLAY MODULE (CDM) 4. Press SELECT (D) until AUTO RAISE HEIGHT? is displayed on the upper line. • Last measurement is displayed on the lower line. NOTE: The auto raise height ranges from 4.0 (minimum) to 9.5 (maximum), in 0.5 increments. A setting of 10 disables the auto raise function.
Page 100: Displaying Reel Speed
CAB DISPLAY MODULE (CDM) 4. Press SELECT (C) until HAY CONDITIONER? is displayed on the upper line. • NO/YES is displayed on the lower line. 5. Press right (B) arrow to select YES. Press SELECT (C). 6. Press PROGRAM (A) to exit Programming Mode or press SELECT (C) to proceed to next WINDROWER SETUP action.
Page 101: Setting The Windrower's Tire Size
CAB DISPLAY MODULE (CDM) 4. Press SELECT (D) until HEADER REEL SPEED? is displayed on the upper line. • RPM/MPH or RPM/KPH is displayed on the lower line. 5. Press left (B) or right (C) arrow to select either Imperial or Metric units.
Page 102: Setting The Engine Intermediate Speed Control (Isc) Rpm
CAB DISPLAY MODULE (CDM) 4.4.15 Setting the Engine Intermediate Speed Control (ISC) RPM NOTE: The engine MUST be running to perform this procedure. 1. Turn ignition key to RUN, or start the engine. 2. Press PROGRAM (A) and SELECT (C) on cab display module (CDM) to enter Programming Mode.
Page 103: Clearing Sub-Acres
CAB DISPLAY MODULE (CDM) 4.4.16 Clearing Sub-Acres 1. With the key in the ON position, and the operator’s station in cab forward mode, press SELECT until the cab display module (CDM) displays sub-acres on the bottom line. Then press and hold the PROGRAM (A) button on the CDM until the sub-acres are cleared.
Page 104: Activating Cab Display Lockouts
CAB DISPLAY MODULE (CDM) 4.5 Activating Cab Display Lockouts You can lock some of the header functions controlled by the cab display module (CDM) to prevent accidental changes to header settings. You can use this feature to keep header settings constant when several different operators use the windrower.
Page 105: Activating Rotary Disc Speed Control Lockout
CAB DISPLAY MODULE (CDM) 6. Press SELECT (D) until KNIFE SPEED is displayed on the upper line. • ENABLED/LOCKED is displayed on the lower line. 7. Press left arrow (B) to enable KNIFE SPEED control switch, or press right arrow (C) to lock KNIFE SPEED control switch.
Page 106: Activating The Header Float Control Lockout
CAB DISPLAY MODULE (CDM) 4. Press SELECT (B) until SET CONTROL LOCKS? is displayed on the upper line. • NO/YES is displayed on the lower line. 5. Press right (A) arrow to select YES. Press SELECT (B). Figure 4.67: Control Locks 6.
Page 107: Activating The Draper Speed Control Lockout
CAB DISPLAY MODULE (CDM) 4. Press SELECT (B) until SET CONTROL LOCKS? is displayed on the upper line. • NO/YES is displayed on the lower line. 5. Press right (A) arrow to select YES. Press SELECT (B). Figure 4.70: Control Locks 6.
Page 108 CAB DISPLAY MODULE (CDM) 1. Turn ignition key to RUN, or start the engine. 2. Press PROGRAM (A) and SELECT (C) on cab display module (CDM) to enter Programming Mode. • WINDROWER SETUP? is displayed on the upper line. • NO/YES is displayed on the lower line. 3.
Page 109: Activating The Auger Speed Control Lockout
CAB DISPLAY MODULE (CDM) 4.5.5 Activating the Auger Speed Control Lockout NOTE: • This procedure is for A40-D Headers only. • An auger header MUST be attached to the windrower to perform this procedure. The cab display module (CDM) automatically adjusts its programming for each header. 1.
Page 110: Activating The Reel Speed Control Lockout
CAB DISPLAY MODULE (CDM) 4.5.6 Activating the Reel Speed Control Lockout NOTE: The header MUST be attached to the windrower to perform this procedure. The cab display module (CDM) automatically adjusts its programming for each header. 1. Turn ignition key to RUN, or start the engine. 2.
Page 111: Activating The Reel Fore-Aft Control Lockout
CAB DISPLAY MODULE (CDM) 4.5.7 Activating the Reel Fore-Aft Control Lockout NOTE: • This procedure is for draper headers only. • The header MUST be attached to the windrower to perform this procedure. The cab display module (CDM) automatically adjusts its programming for each header. 1.
Page 112: Activating The Header Tilt Control Lockout
CAB DISPLAY MODULE (CDM) 4.5.8 Activating the Header Tilt Control Lockout NOTE: • The header MUST be attached to the windrower to perform this procedure. The cab display module (CDM) automatically adjusts its programming for each header. 1. Turn ignition key to RUN, or start the engine. 2.
Page 113: Displaying Activated Cab Display Lockouts
CAB DISPLAY MODULE (CDM) 4.6 Displaying Activated Cab Display Lockouts Displaying the activated control locks allows you to quickly determine which controls are locked on the cab display module (CDM). 1. Turn ignition key to RUN, or start the engine. 2.
Page 114 CAB DISPLAY MODULE (CDM) 6. Press left (B) or right (C) arrow to cycle between control switch lock outs. The displayed control switches are as follows: • HEADER TILT • HEADER FLOAT • REEL FORE/AFT • DRAPER SPEED • AUGER SPEED •...
Page 115: Troubleshooting Windrower Problems
CAB DISPLAY MODULE (CDM) 4.7 Troubleshooting Windrower Problems 4.7.1 Displaying the Windrower and Engine Error Codes NOTE: The header MUST be attached to the windrower to perform this procedure. The cab display module (CDM) automatically adjusts its programming for each header. 1.
Page 116: Switching The Installed Header Sensors On Or Off
CAB DISPLAY MODULE (CDM) 7. Press right (C) arrow to select YES. Press SELECT (D). • The most recent error code will be displayed. 8. Press and left (B) or right (C) arrow to cycle through the last ten recorded windrower error codes until EXIT WINDROWER CODES is displayed.
Page 117 CAB DISPLAY MODULE (CDM) 1. Turn ignition key to RUN, or start the engine. 2. Press PROGRAM (A) and SELECT (C) on cab display module (CDM) to enter Programming Mode. • WINDROWER SETUP? is displayed on the upper line. • NO/YES is displayed on the lower line. 3.
Page 118: Displaying Header Sensor Input Signals
CAB DISPLAY MODULE (CDM) 8. Press right arrow to select YES. Press SELECT. 9. Press PROGRAM to exit Programming Mode or press SELECT to proceed to next DIAGNOSTIC MODE. 4.7.3 Displaying Header Sensor Input Signals You can display individual sensor input signals in the event of a malfunction or as part of a troubleshooting routine. NOTE: The header MUST be attached to the windrower to perform this procedure.
Page 119: Forcing A Header Id
CAB DISPLAY MODULE (CDM) 6. Press right (C) arrow to select Yes. Press SELECT (D). • SENSOR INPUT is displayed on the upper line. • HDR HEIGHT 1.23 V is displayed on the lower line. 7. Press left (B) or right (C) arrow to cycle between individual sensor readers.
Page 120 CAB DISPLAY MODULE (CDM) 3. Press SELECT (B) until DIAGNOSTIC MODE? is displayed in upper line. • NO/YES is displayed on the lower line. 4. Press right (A) arrow to select Yes. Press SELECT (B). Figure 4.101: Diagnostic Functions 5. Press SELECT (B) until FORCE HEADER TYPE? is displayed on the upper line.
Page 121: Troubleshooting Header Problems
CAB DISPLAY MODULE (CDM) 4.8 Troubleshooting Header Problems You can test individual parts of the header as part of a troubleshooting routine. 4.8.1 Testing the Header Up/Down Activate Function Using the Cab Display Module (CDM) NOTE: • The header MUST be attached to the windrower to perform this procedure. The cab display module (CDM) automatically adjusts its programming for each header.
Page 122: Testing The Reel Up/Down Activate Function Using The Cab Display Module (Cdm)
CAB DISPLAY MODULE (CDM) 5. Press SELECT (B) until ACTIVATE FUNCTIONS? is displayed on the upper line. • NO/YES is displayed on the lower line. 6. Press right (A) arrow to select YES. Press SELECT (B). Figure 4.106: Functions CAUTION Check to be sure all bystanders have cleared the area.
Page 123 CAB DISPLAY MODULE (CDM) 1. Turn ignition key to RUN, or start the engine. 2. Press PROGRAM (A) and SELECT (C) on cab display module (CDM) to enter Programming Mode. Press SELECT (C). • WINDROWER SETUP? is displayed on the upper line.
Page 124: Testing The Header Tilt Activate Function Using The Cab Display Module (Cdm)
CAB DISPLAY MODULE (CDM) CAUTION Check to be sure all bystanders have cleared the area. 7. Press SELECT (D) until ACTIVATE REEL HT is displayed on the upper line. • DOWN/UP is displayed on the lower line. 8. Press and hold left (B) arrow to lower reel. Press and hold right (C) arrow to raise reel.
Page 125 CAB DISPLAY MODULE (CDM) 3. Press SELECT (B) until DIAGNOSTIC MODE? is displayed in upper line. • NO/YES is displayed on the lower line. 4. Press right (A) arrow to select Yes. Press SELECT (B). Figure 4.113: Diagnostic Functions 5. Press SELECT (D) until ACTIVATE FUNCTIONS? is displayed on the upper line.
Page 126: Testing The Reel Fore-Aft Activate Function Using The Cab Display Module (Cdm)
CAB DISPLAY MODULE (CDM) 4.8.4 Testing the Reel Fore-Aft Activate Function Using the Cab Display Module (CDM) NOTE: • The header MUST be attached to windrower to perform this procedure. For more information, refer to 3.10 Attaching Headers, page • The engine MUST be running to perform this procedure. 1.
Page 127: Activating The Hydraulic Purge Using The Cab Display Module (Cdm)
CAB DISPLAY MODULE (CDM) 5. Press SELECT (D) until ACTIVATE FUNCTIONS? is displayed on the upper line. • NO/YES is displayed on the lower line. 6. Press right (C) arrow to select YES. Press SELECT (D). CAUTION Check to be sure all bystanders have cleared the area. Figure 4.118: Functions 7.
Page 128 CAB DISPLAY MODULE (CDM) 3. Press SELECT (B) until DIAGNOSTIC MODE? is displayed in upper line. • NO/YES is displayed on the lower line. 4. Press right (A) arrow to select Yes. Press SELECT (B). Figure 4.121: Diagnostic Functions 5. Press SELECT (B) until ACTIVATE FUNCTIONS? is displayed on the upper line.
Page 129: Testing The Knife Drive Circuit Using The Cab Display Module (Cdm)
CAB DISPLAY MODULE (CDM) NOTE: Holding the right arrow (A) activates a timed purge cycle. The CDM will jump to the exit menu if the arrow is released before the end of the timed cycle. 9. Press and hold right (A) arrow to activate purge cycle. •...
Page 130 CAB DISPLAY MODULE (CDM) 3. Press SELECT (B) until DIAGNOSTIC MODE? is displayed in upper line. • NO/YES is displayed on the lower line. 4. Press right (A) arrow to select Yes. Press SELECT (B). Figure 4.126: Diagnostic Functions 5. Press SELECT (B) until ACTIVATE FUNCTIONS? is displayed on the upper line.
Page 131: Testing The Draper Drive Circuit Activate Function Using The Cab Display Module (Cdm)
CAB DISPLAY MODULE (CDM) 4.8.7 Testing the Draper Drive Circuit Activate Function Using the Cab Display Module (CDM) IMPORTANT: Do not over-speed a drive for a signiﬁcant length of time. Doing so can lead to vibration, belt failures. or other over-speeding related problems.
Page 132: Testing The Reel Drive Circuit Activate Function Using The Cab Display Module (Cdm)
CAB DISPLAY MODULE (CDM) 5. Press SELECT (B) until ACTIVATE FUNCTIONS? is displayed on the upper line. • NO/YES is displayed on the lower line. 6. Press right (A) arrow to select YES. Press SELECT (B). • ACTIVATE HEADER HT is displayed on the upper line.
Page 133 CAB DISPLAY MODULE (CDM) 1. Turn ignition key to RUN, or start the engine. 2. Press PROGRAM (A) and SELECT (C) on cab display module (CDM) to enter Programming Mode. • WINDROWER SETUP? is displayed on the upper line. Figure 4.133: CDM Programming Buttons 3.
Page 134: Testing The Rotary Disc Drive Circuit Activate Function Using The Cab Display Module (Cdm)
CAB DISPLAY MODULE (CDM) CAUTION Check to be sure all bystanders have cleared the area. 7. Press SELECT (E) until REEL DRV SPD XXXX is displayed on the upper line. IMPORTANT: Do NOT over speed the reel. 8. Press and hold HAZARD (C) button. •...
Page 135 CAB DISPLAY MODULE (CDM) 3. Press SELECT (B) until DIAGNOSTIC MODE? is displayed in upper line. • NO/YES is displayed on the lower line. 4. Press right (A) arrow to select Yes. Press SELECT (B). Figure 4.138: Diagnostic Functions 5. Press SELECT (B) until ACTIVATE FUNCTIONS? is displayed on the upper line.
Page 136: Testing The Double Windrower Attachment (Dwa) Drive Activate Function Using The Cab Display Module (Cdm)
CAB DISPLAY MODULE (CDM) 4.8.10 Testing the Double Windrower Attachment (DWA) Drive Activate Function Using the Cab Display Module (CDM) IMPORTANT: Do not over-speed a drive for a signiﬁcant length of time. Doing so can lead to vibration, belt failures, or other over-speeding related problems.
Page 137 CAB DISPLAY MODULE (CDM) 5. Press SELECT (B) until ACTIVATE FUNCTIONS? is displayed on the upper line. • NO/YES is displayed on the lower line. 6. Press right (A) arrow to select YES. Press SELECT (B). • ACTIVATE HEADER HT is displayed on the upper line.
Page 139: Performing Predelivery Checks
5 Performing Predelivery Checks Perform all procedures in this chapter in the order in which they are listed. DANGER To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and remove the key from the ignition before leaving the operator’s seat for any reason. IMPORTANT: The machine is factory-set and should not require further adjustments;...
Page 140: Checking Wheel Drive Lubricant Level
PERFORMING PREDELIVERY CHECKS 5.2 Checking Wheel Drive Lubricant Level Check the wheel drive lubricant level every 200 hours or annually. DANGER To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and remove the key from the ignition before leaving the operator’s seat for any reason. 1.
Page 141: Checking Tire Pressures And Adding Tire Ballast
PERFORMING PREDELIVERY CHECKS 5.3 Checking Tire Pressures and Adding Tire Ballast 5.3.1 Checking Tire Pressures Measure the following tire pressures using a gauge: Table 5.1 Tire Pressures Tire Type Size Pressure 18.4–26 32 psi (221 kPa) 600/65R28 26 psi (179 kPa) 18.4–26 35 psi (241 kPa) Turf...
Page 142 PERFORMING PREDELIVERY CHECKS Table 5.3 Recommended Ballast Recommended Ballast Header Description Level Ground Hills Rec. Tire Size Per Tire Per Tire Both Tires Both Tires Type Size U.S. Gal. U.S. Gal. lb. (kg) lb. (kg) (liters) (liters) 7.5 x 16 A-Series 10 x 16 (all options)
Page 143: Checking Engine Air Intake
PERFORMING PREDELIVERY CHECKS 5.4 Checking Engine Air Intake DANGER To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and remove the key from the ignition before leaving the operator’s seat for any reason. 1.
Page 144 PERFORMING PREDELIVERY CHECKS 4. Check the constant torque clamps (A) securing tube (B) from the cooler to the engine air intake. Figure 5.7: Air Intake System 147764 Revision A...
Page 145: Checking Hydraulic Oil
PERFORMING PREDELIVERY CHECKS 5.5 Checking Hydraulic Oil DANGER To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and remove the key from the ignition before leaving the operator’s seat for any reason. 1. Stand on left (cab-forward side) platform to access the ﬁller pipe.
Page 146: Checking Fuel Separator
PERFORMING PREDELIVERY CHECKS 5.6 Checking Fuel Separator DANGER To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and remove the key from the ignition before leaving the operator’s seat for any reason. 1. Place a container under the ﬁlter drain (A). 2.
Page 147: Checking Engine Coolant
PERFORMING PREDELIVERY CHECKS 5.7 Checking Engine Coolant DANGER To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and remove the key from the ignition before leaving the operator’s seat for any reason. 1. Check the coolant level in the pressurized coolant tank (A).
Page 148: Checking Gearbox Lubricant Level
PERFORMING PREDELIVERY CHECKS 5.8 Checking Gearbox Lubricant Level DANGER To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and remove the key from the ignition before leaving the operator’s seat for any reason. 1.
Page 149: Checking Air Conditioning (A/C) Compressor Belt
PERFORMING PREDELIVERY CHECKS 5.9 Checking Air Conditioning (A/C) Compressor Belt DANGER To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and remove the key from the ignition before leaving the operator’s seat for any reason. 1.
Page 150: Checking Safety System
PERFORMING PREDELIVERY CHECKS 5.10 Checking Safety System Ensure the battery disconnect switch is in the POWER ON position. Refer to 5.11 Performing Operational Checks, page 144. A properly functioning system should operate as follows: • The starter should engage only when the ground speed lever (GSL) is in N-DETENT, the steering wheel is locked in the center position, and the header drive switch is in the OFF position.
Page 151 PERFORMING PREDELIVERY CHECKS 2. Shut down the engine and perform the following safety system checks: a. Open engine compartment hood. b. Pry the steering interlock away from pintle arms (A) by inserting a wedge or pry bar between one of the interlock channels (B) and pintle arm.
Page 152: Performing Operational Checks
PERFORMING PREDELIVERY CHECKS 5.11 Performing Operational Checks DANGER To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and remove the key from the ignition before leaving the operator’s seat for any reason. The battery disconnect switch (A) is located on the right-hand (cab-forward) frame rail behind the maintenance platform and can be accessed by moving the platform rearwards.
Page 153: Checking Engine Warning Lights
PERFORMING PREDELIVERY CHECKS 5.11.1 Checking Engine Warning Lights 1. Turn ignition key (A) to RUN position. A single loud tone will be audible and the engine warning lights (B) will illuminate. 2. Turn ignition key (A) to OFF position. Figure 5.16: Operator Console 5.11.2 Checking Engine Startup CAUTION Check to be sure all bystanders have cleared the area.
Page 154: Checking Engine Speed
PERFORMING PREDELIVERY CHECKS 5.11.3 Checking Engine Speed 1. Check engine speed on cab display module (CDM) (A). Table 5.4 Engine Speed Idle rpm Maximum rpm (No Load) 1000 +/- 30 rpm 2300 +/- 30 rpm Figure 5.18: Cab Display Module (CDM) 5.11.4 Checking Gauges and Cab Display Module (CDM) Display on an M155E4 1.
Page 155: Checking Electrical System
PERFORMING PREDELIVERY CHECKS 5.11.5 Checking Electrical System 1. Push the SELECT button (C) on the ground speed lever (GSL) or the SELECT button (B) on the cab display module (CDM) until the CDM display (A) displays VOLTS. The display indicates the condition of the battery and alternator.
Page 156 PERFORMING PREDELIVERY CHECKS 5. Start the engine and position the GSL in NEUTRAL and N-DETENT: a. Swivel the operator’s station but do NOT lock into position. b. Move the GSL out of N-DETENT. The engine should shut down and the lower display will ﬂash LOCK SEAT BASE —>...
Page 157: Checking Exterior Lights
PERFORMING PREDELIVERY CHECKS 5.11.7 Checking Exterior Lights 1. Rotate the operator’s seat to cab-forward mode. 2. Turn ﬁeld light switch (A) to the ON position and ensure the front ﬁeld lights (B) and rear swath lights (C) are functioning. Figure 5.23: Exterior Lights – Cab Forward 147764 Revision A...
Page 158 PERFORMING PREDELIVERY CHECKS 3. Rotate the operator’s seat to cab-forward mode. 4. Turn the road light switch (A) to the ON position and ensure the front road lights (B) and rear red tail/brake lights (C) (if equipped) are functioning. 5. Activate the high/low switch (D) and check lights. 6.
Page 159: Auto Road Light
PERFORMING PREDELIVERY CHECKS 8. Turn beacon switch (A) to the ON position and ensure the amber beacons (B) are functioning. Figure 5.25: Exterior Lights – Beacons Auto Road Light The beacon and hazard lights are included in the auto road light feature. The beacon and hazard lights will turn on when this feature is activated, and can only be turned off by engaging the header drive.
Page 160: Checking Horn
PERFORMING PREDELIVERY CHECKS 5.11.8 Checking Horn 1. Push horn button (A) and listen for horn. Figure 5.26: M155E4 Horn Button 5.11.9 Checking Interior Lights 1. Switch road and ﬁeld lights ON and OFF using switch (A). NOTE: Ambient light in roof liner (B) and interior light (C) work only when road or ﬁeld lights (A) are switched ON.
Page 161: Checking Air Conditioning (A/C) And Heater
PERFORMING PREDELIVERY CHECKS 5.11.10 Checking Air Conditioning (A/C) and Heater Figure 5.28: M155E4 A/C and Heater Controls • Blower switch (A): Controls blower speed. Switch settings are OFF, LO, MEDIUM, and HI. • Air conditioning switch (B): Controls A/C system. When set to ON, A/C operates if blower switch (A) is switched ON.
Page 162: Checking Manuals
PERFORMING PREDELIVERY CHECKS 5.12 Checking Manuals Manuals are stored in the manual storage case (A) behind the operator’s seat. Figure 5.29: Manual Storage Case 1. Ensure the following manuals are included with the windrower: • Operator’s Manual • Parts Catalog •...
Page 163: Performing Final Steps
PERFORMING PREDELIVERY CHECKS 5.13 Performing Final Steps 1. Remove plastic covering from cab display module (CDM) and seats once all predelivery checks are complete. 2. Locate the bag inside the cab containing the Trimble Display Mount kit and label (GPS completion kit).
Page 165: Reference
6 Reference 6.1 Torque Speciﬁcations The following tables provide the correct torque values for various bolts, cap screws, and hydraulic ﬁttings. • Tighten all bolts to the torque values speciﬁed in the charts (unless otherwise noted throughout this manual). • Replace hardware with the same strength and grade of bolt. •...
Page 166 REFERENCE Table 6.2 SAE Grade 5 Bolt and Grade F Distorted Thread Nut Torque (ft·lbf) Torque (N·m) Nominal (*in·lbf) Size (A) Min. Max. Min. Max. 1/4-20 5/16-18 *149 *164 16.7 18.5 3/8-16 7/16-14 1/2-13 9/16-12 Figure 6.2: Bolt Grades 5/8-11 A - Nominal Size B - SAE-8 C - SAE-5...
Page 167: Metric Bolt Specifications
REFERENCE Table 6.4 SAE Grade 8 Bolt and Grade 8 Free Spinning Nut Torque (ft·lbf) Torque (N·m) Nominal (*in·lbf) Size (A) Min. Max. Min. Max. 1/4-20 *150 *165 16.8 18.6 5/16-18 3/8-16 7/16-14 1/2-13 9/16-12 Figure 6.4: Bolt Grades 5/8-11 A - Nominal Size B - SAE-8 C - SAE-5...
Page 168 REFERENCE Table 6.6 Metric Class 8.8 Bolts and Class 9 Distorted Thread Nut Torque (ft·lbf) Torque (N·m) Nominal (*in·lbf) Size (A) Min. Max. Min. Max. 3-0.5 3.5-0.6 4-0.7 5-0.8 6-1.0 8-1.25 *167 *185 18.8 20.8 Figure 6.6: Bolt Grades 10-1.5 12-1.75 14-2.0 16-2.0...
Page 169 REFERENCE Table 6.8 Metric Class 10.9 Bolts and Class 10 Distorted Thread Nut Torque (ft·lbf) Torque (N·m) Nominal (*in·lbf) Size (A) Min. Max. Min. Max. 3-0.5 3.5-0.6 4-0.7 5-0.8 6-1.0 *105 10.7 11.8 8-1.25 Figure 6.8: Bolt Grades 10-1.5 12-1.75 14-2.0 16-2.0 20-2.5...
Page 170: Metric Bolt Specifications Bolting Into Cast Aluminum
REFERENCE 6.1.3 Metric Bolt Speciﬁcations Bolting into Cast Aluminum Table 6.9 Metric Bolt Bolting into Cast Aluminum Bolt Torque Nominal 10.9 Size (A) (Cast Aluminum) (Cast Aluminum) N·m N·m ft·lbf ft·lbf – – – – – – – Figure 6.9: Bolt Grades –...
Page 171 REFERENCE Table 6.10 Flare-Type Hydraulic Tube Fittings Torque Value Flats from Finger Tight (FFFT) SAE Dash Size Thread Size (in.) Swivel Nut or ft·lbf N·m Tube Hose — — 5/16–24 3–4 4–5 — — 3/8–24 5–6 7–8 7/16–20 13–14 18–19 2-1/2 1/2–20 14–15...
Page 172: O-Ring Boss (Orb) Hydraulic Fittings (Adjustable)
REFERENCE 6.1.5 O-Ring Boss (ORB) Hydraulic Fittings (Adjustable) 1. Inspect O-ring (A) and seat (B) for dirt or obvious defects. 2. Back off the lock nut (C) as far as possible. Ensure that washer (D) is loose and is pushed toward the lock nut (C) as far as possible.
Page 173 REFERENCE Table 6.11 O-Ring Boss (ORB) Hydraulic Fittings (Adjustable) Torque Value SAE Dash Size Thread Size (in.) ft·lbf (*in·lbf) N·m 5/16–24 *53–62 6–7 3/8–24 *106–115 12–13 7/16–20 14–15 19–21 1/2–20 15–24 21–33 9/16–18 19–21 26–29 3/4–16 34–37 46–50 7/8–14 55–60 75–82 1-1/16–12 88–97...
Page 174: O-Ring Boss (Orb) Hydraulic Fittings (Non-Adjustable)
REFERENCE 6.1.6 O-Ring Boss (ORB) Hydraulic Fittings (Non-Adjustable) 1. Inspect O-ring (A) and seat (B) for dirt or obvious defects. 2. Check that O-ring (A) is NOT on the threads and adjust if necessary. 3. Apply hydraulic system oil to the O-ring. 4.
Page 175: O-Ring Face Seal (Orfs) Hydraulic Fittings
REFERENCE 6.1.7 O-Ring Face Seal (ORFS) Hydraulic Fittings 1. Check components to ensure that the sealing surfaces and ﬁtting threads are free of burrs, nicks, scratches, or any foreign material. Figure 6.14: Hydraulic Fitting 2. Apply hydraulic system oil to the O-ring (B). 3.
Page 176 REFERENCE Table 6.13 O-Ring Face Seal (ORFS) Hydraulic Fittings Torque Value SAE Dash Size Thread Size (in.) Tube O.D. (in.) ft·lbf N·m Note 3/16 – – 9/16 18–21 25–28 Note – – 5/16 11/16 29–32 40–44 13/16 41–45 55–61 59–65 80–88 1-3/16 85–94...
Page 177: Conversion Chart
REFERENCE 6.2 Conversion Chart Table 6.14 Conversion Chart Inch-Pound Units SI Units (Metric) Quantity Factor Unit Name Abbreviation Unit Name Abbreviation Area acres acres x 0.4047 = hectares US gallons Flow x 3.7854 = liters per minute L/min per minute Force pounds force x 4.4482 =...
Page 178: Definitions
Diesel exhaust ﬂuid; also called AdBlue in Europe, and AUS 32 in Australia DEF supply module Pumps diesel exhaust ﬂuid through the system Dosing module D-Series header MacDon D50, D60, and D65 rigid draper headers Double knife Double-knife drive Double-draper drive Diesel oxidation catalyst...
Page 179 This style of ﬁtting is also commonly called ORS, which stands for O-ring seal Revolutions per minute R-Series header MacDon rotary disc header RoHS (Reduction of A directive by the European Union to restrict the use of certain hazardous Hazardous Substances)
Page 180 REFERENCE Term Deﬁnition A tightening procedure where the ﬁtting is assembled to a precondition (ﬁnger Torque angle tight) and then the nut is turned further a number of degrees or a number of ﬂats to achieve its ﬁnal position The relationship between the assembly torque applied to a piece of hardware and Torque-tension the axial load it induces in the bolt or screw ULSD...
Page 181: Predelivery Checklist
Predelivery Checklist Perform these checks and adjustments prior to delivery to your Customer. The completed checklist should be retained by either the Operator or the Dealer. CAUTION Carefully follow the instructions given. Be alert for safety related messages that bring your attention to hazards and unsafe practices.
Page 182 PREDELIVERY CHECKLIST  Item Reference 5.11.10 Checking Air Conditioning (A/C) and Check that heater is functioning properly. Heater, page 153 Check that interior lights are functioning properly. 5.11.9 Checking Interior Lights, page 152 Check maximum (no load) engine speed at CDM. 5.11.3 Checking Engine Speed, page 146 Check that exterior lights are functioning properly.
Page 184 10708 N. Pomona Avenue Kansas City, Missouri United States 64153-1924 t. (816) 891-7313 f. (816) 891-7323 MacDon Australia Pty. Ltd. A.C.N. 079 393 721 P.O. Box 243, Suite 3, 143 Main Street Greensborough, Victoria, Australia 3088 t. 03 9432 9982 f.
