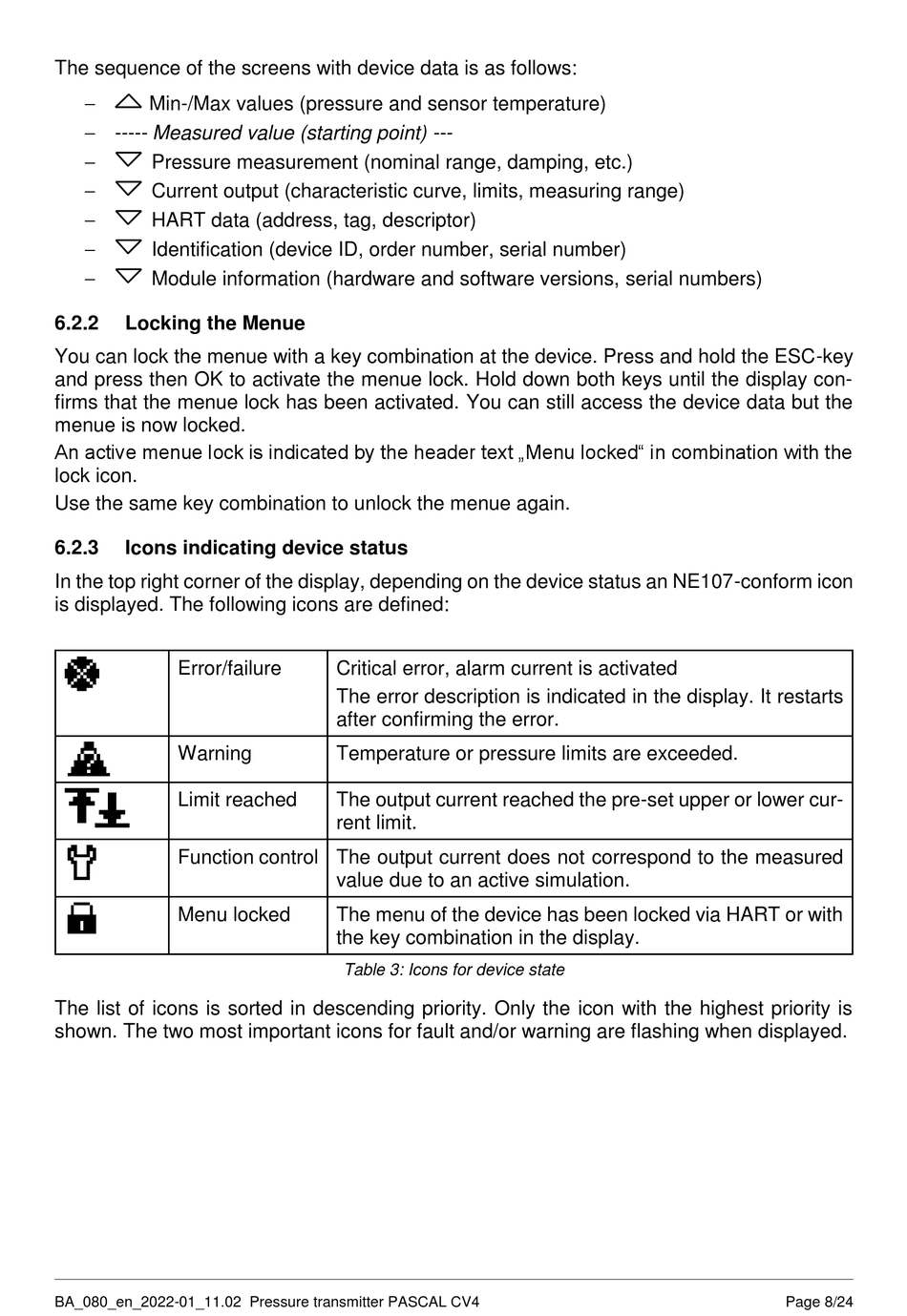

Labom CV4110 Operating Instructions Manual page 8

The sequence of the screens with device data is as follows:

Min-/Max values (pressure and sensor temperature)
 ----- Measured value (starting point) ---

Pressure measurement (nominal range, damping, etc.)

Current output (characteristic curve, limits, measuring range)

HART data (address, tag, descriptor)

Identification (device ID, order number, serial number)

Module information (hardware and software versions, serial numbers)
6.2.2 Locking the Menue
You can lock the menue with a key combination at the device. Press and hold the ESC-key
and press then OK to activate the menue lock. Hold down both keys until the display con-
firms that the menue lock has been activated. You can still access the device data but the
menue is now locked.
An active menue lock is indicated by the header text „Menu locked" in combination with the
lock icon.
Use the same key combination to unlock the menue again.
6.2.3 Icons indicating device status
In the top right corner of the display, depending on the device status an NE107-conform icon
is displayed. The following icons are defined:
Error/failure
Warning
Limit reached
Function control The output current does not correspond to the measured
Menu locked
The list of icons is sorted in descending priority. Only the icon with the highest priority is
shown. The two most important icons for fault and/or warning are flashing when displayed.
BA_080_en_2022-01_11.02 Pressure transmitter PASCAL CV4
Critical error, alarm current is activated
The error description is indicated in the display. It restarts
after confirming the error.
Temperature or pressure limits are exceeded.
The output current reached the pre-set upper or lower cur-
rent limit.
value due to an active simulation.
The menu of the device has been locked via HART or with
the key combination in the display.
Table 3: Icons for device state
