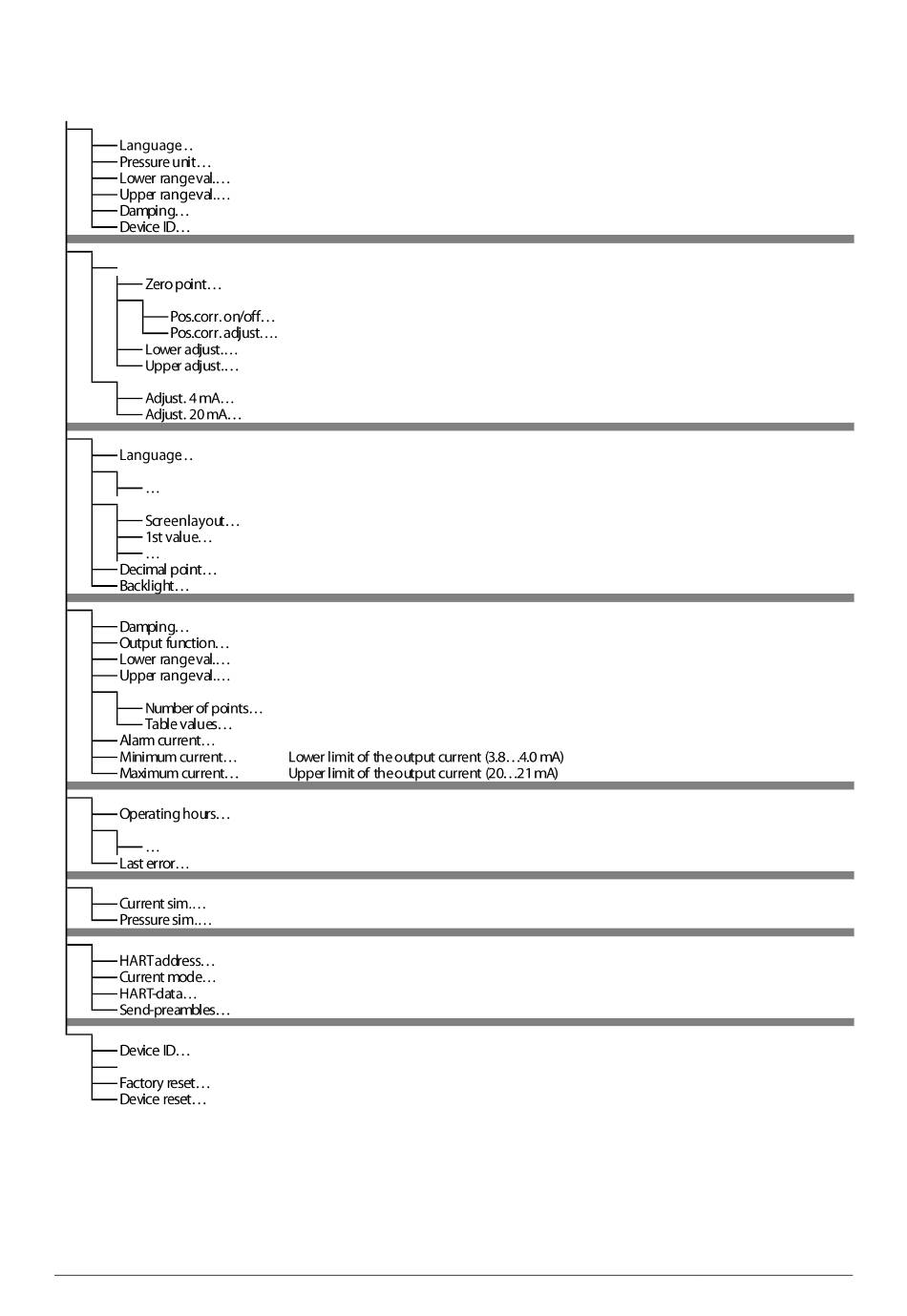

6.4.10 Overview with menue tree and device functions
Quick Setup
Adjustment
Pressure adjust.
Position correct.
Current adjustment
Display
Units
Screen mode
Measurem./Output
Output table
Diagnosis
Min/Max values
Simulation
Communication
System
Device data
BA_080_en_2022-01_11.02 Pressure transmitter PASCAL CV4
Select menu languag e
Select unit for measured pressure
Setting of the pressure value that should correspond to 4 mA (start of range)
Setting of the pressure value that should correspond to 20 mA (end of range)
Setting the damping of the output signal
Setting the device ID
Adjustment of the pressure measurement
Set device at ambient pressure to zero (0 bar rel) (not for absolute pressure devices)
Correct zero point error due to installation position (not for absolute pressure devices)
Activate/deactivate position correction
Correct position error at ambient pressure
Offset correction with applied reference pressure
Span correction with applied reference pressure
Adjustment of the current output
Adjustment the output current on 4 mA at the end of measurement chain
Adjustment the output current on 20 mA at the end of measurement chain
Select menu languag e
Select units for measured values
Select units for pressure and temperature
Configuration of the display layout and content
Define screen structure and layout
Content for 1st value in the selected layout
Content for further values (up to four)
Selection of the decimal places of the 1st value by specifying the decimal point
Switch backlight on/off
Setting the damping of the output signal
Setting the output function (linear, inverse, square root, table)
Setting of the pressure value that should correspond to 4 mA (start of range)
Setting of the pressure value that should correspond to 20 mA (end of range)
Specifying interpolation points for table function (display software version 1.1.0 and above)
Number of interpolation points
Interpolation points of table function
Selection of the alarm current: High (>21 mA) or low (<3.6 mA)
Display of operating hour counter
Display and reset of min/max-values
Display and reset the different min/max-values
Display and reset of the last critical error
Setting a fixed current value
Setting a fixed pressure value
Setting the HART address for device identification in multi-drop mode
Setting the current mode (proportional/constant)
Display of HART information (HART tag, HART descriptor, etc.)
Setting of the number of send preambles for HART communication
Setting the device ID (e.g. to display a free-text in the display)
Display of device data (same as from measured value display)
Reset to factory settings
Restarting the device (such as after a power outage)
