6.3.1 Displaying and entering parameters
When entering parameters, either numerical inputs or a selection lists with fixed options is
available.
In general, the actual selection will be displayed first (view mode). Press OK to switch to edit
mode to change the parameter. After this is done, the display will then switch back to view
mode so that you can check the new setting.
6.3.1.1 Selection of a value from a selection list
Up to four options are shown at the same time in one selection list. When the selection list
is longer, a scroll bar on the left side of the display indicates the position of the selected item
in the selection list.
When you press the ESC button, you cancel the entry and go back to view mode. The se-
lected value is not saved.
With the OK button, the selected value is saved. Saving the value is confirmed with an in-
formation window and the new value is shown in view mode.
With ESC, you leave the view mode and return to the menue.
menue

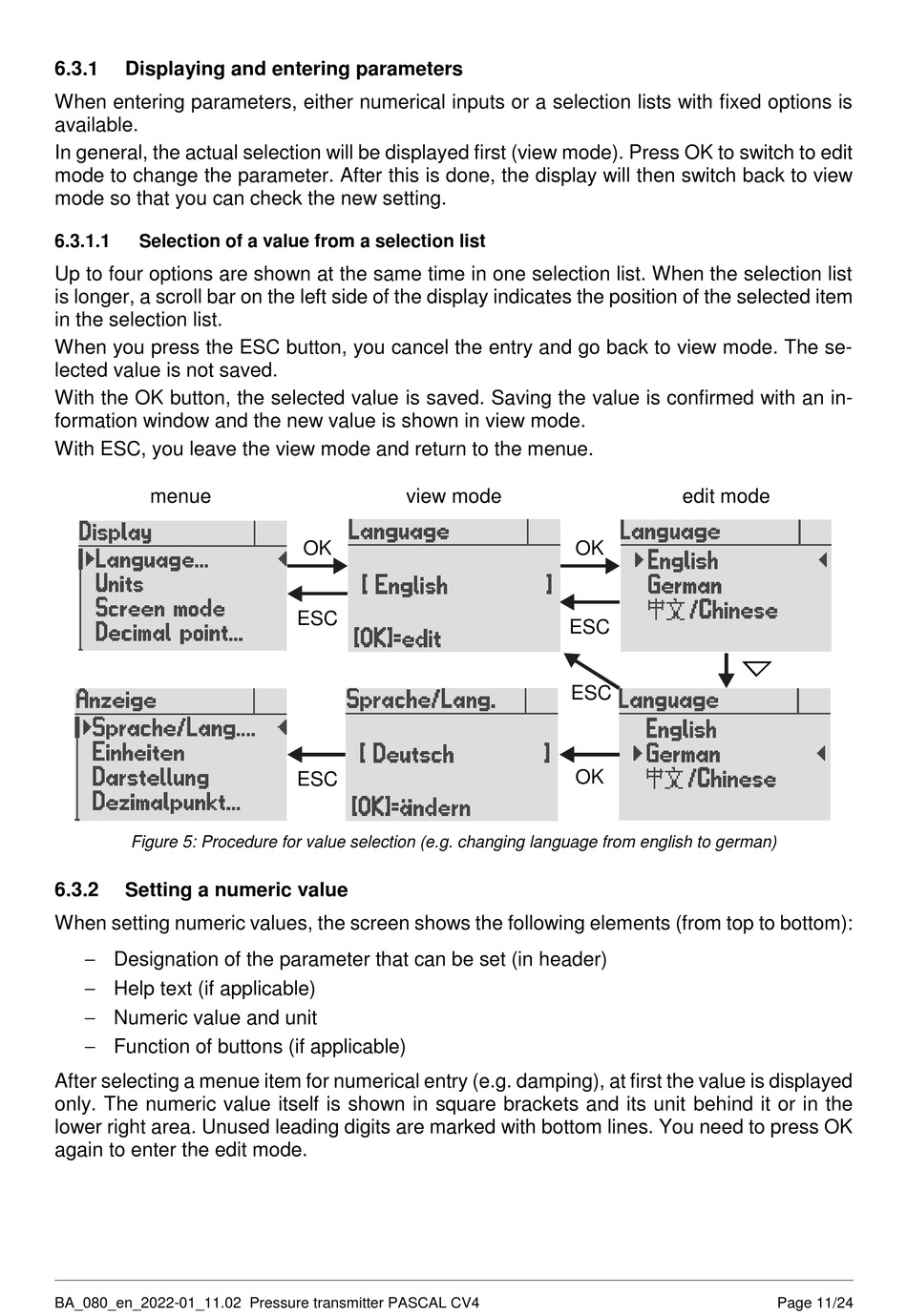

Figure 5: Procedure for value selection (e.g. changing language from english to german)
6.3.2 Setting a numeric value
When setting numeric values, the screen shows the following elements (from top to bottom):
 Designation of the parameter that can be set (in header)
 Help text (if applicable)
 Numeric value and unit
 Function of buttons (if applicable)
After selecting a menue item for numerical entry (e.g. damping), at first the value is displayed
only. The numeric value itself is shown in square brackets and its unit behind it or in the
lower right area. Unused leading digits are marked with bottom lines. You need to press OK
again to enter the edit mode.
BA_080_en_2022-01_11.02 Pressure transmitter PASCAL CV4
view mode
OK
ESC
ESC
edit mode
OK
ESC
ESC
OK
