Summary of Contents for Humandata UTL-101
- Page 1 Mother Board with HSMC Connector UTL-101 User’s Manual HuMANDATA LTD.
-
Page 2: Table Of Contents
Table of Contents Revision History ....................1 Introduction......................1 1. Specifications......................2 2. Overview........................ 3 2.1. Name of Parts ....................3 3. Jumper Setting ...................... 4 4. Additional Documentation and User Support............4... - Page 3 HuMANDATA will revise the diagram. When a problem can be solved only by replacing components or modifying the product, HuMANDATA will take back the product to replace it with a properly functioning product.
-
Page 4: Revision History

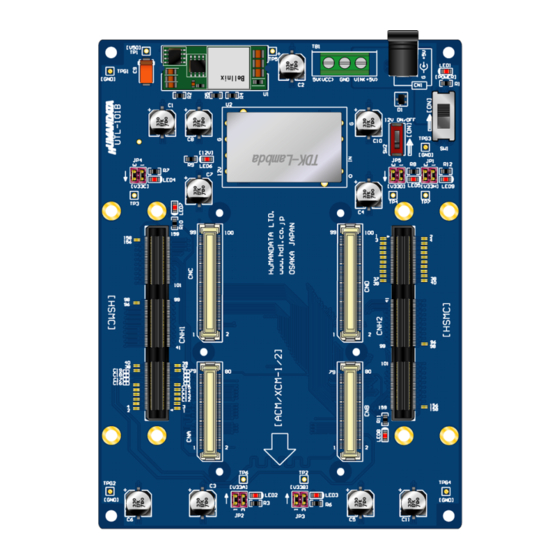

Aug. 5, 2009 Initial release Introduction Thank you for buying our product UTL-101. This is a conversion board that allows our ACM/XCM-1 or ACM/XCM-2 series board to connect with a peripheral board that has HSMC connectors. There are high-capacity power supply (3.3V/10A) and 12V power supply on this board. -
Page 5: Specifications
6.102" x 5.669" (155 x 114 [mm]) Weight 130 [g] Typ. Operating Temp. Range 0 to 40 [°C] (32 to 104 [°F]) RoHS Compliance * HSMC connector is high-speed board-to-board connector specification specified by Altera. (Related link: http://www.altera.com/literature/ds/hsmc_spec.pdf) UTL-101 Series v1.0... -
Page 6: Overview
2. Overview UTL-101 is a conversion board that allows our ACM/XCM-1 or ACM/XCM-2 series board to connect with a peripheral board that has HSMC connectors. There are high-capacity power supply (3.3V/10A) and 12V power supply on this board. Notice Not all HSMC boards can be connected with UTL-101. -
Page 7: Jumper Setting
* For more information, please refer to a Circuit Schematic. 4. Additional Documentation and User Support The following documents and other supports are available at http://www.hdl.co.jp/en/spc/UTL/utl-101/ Circuit Schematic Pin List Dimensional drawing PCB drawing … and more. UTL-101 Series v1.0... - Page 8 Mother Board with HSMC Connector UTL-101 User’s Manual Ver. 1.0 ..........Aug. 5, 2009 HuMANDATA LTD. Address: 1-2-10-2F, Nakahozumi, Ibaraki Osaka, Japan ZIP 567-0034 Tel: 81-(0)72-620-2002 (Japanese) Fax: 81-(0)72-620-2003 (Japanese/English) URL: http://www.hdl.co.jp/en/ (Global) http://www.hdl.co.jp/ (Japan)
