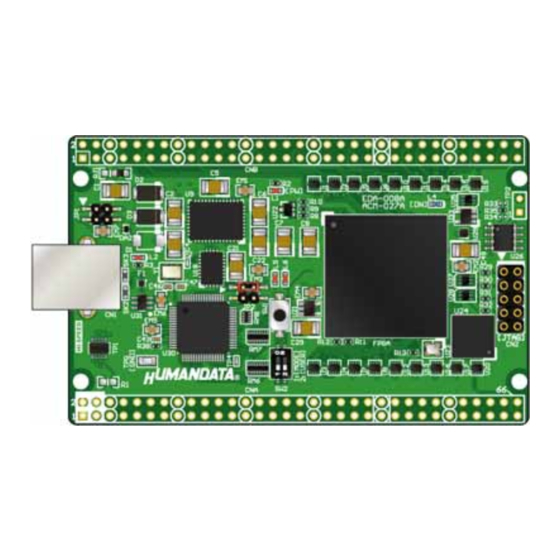

Cyclone V USB-FPGA Board
EDA-008 Series
User's Manual
Ver. 1.0
HuMANDATA LTD.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EDA-008 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Humandata EDA-008 Series

Summary of Contents for Humandata EDA-008 Series

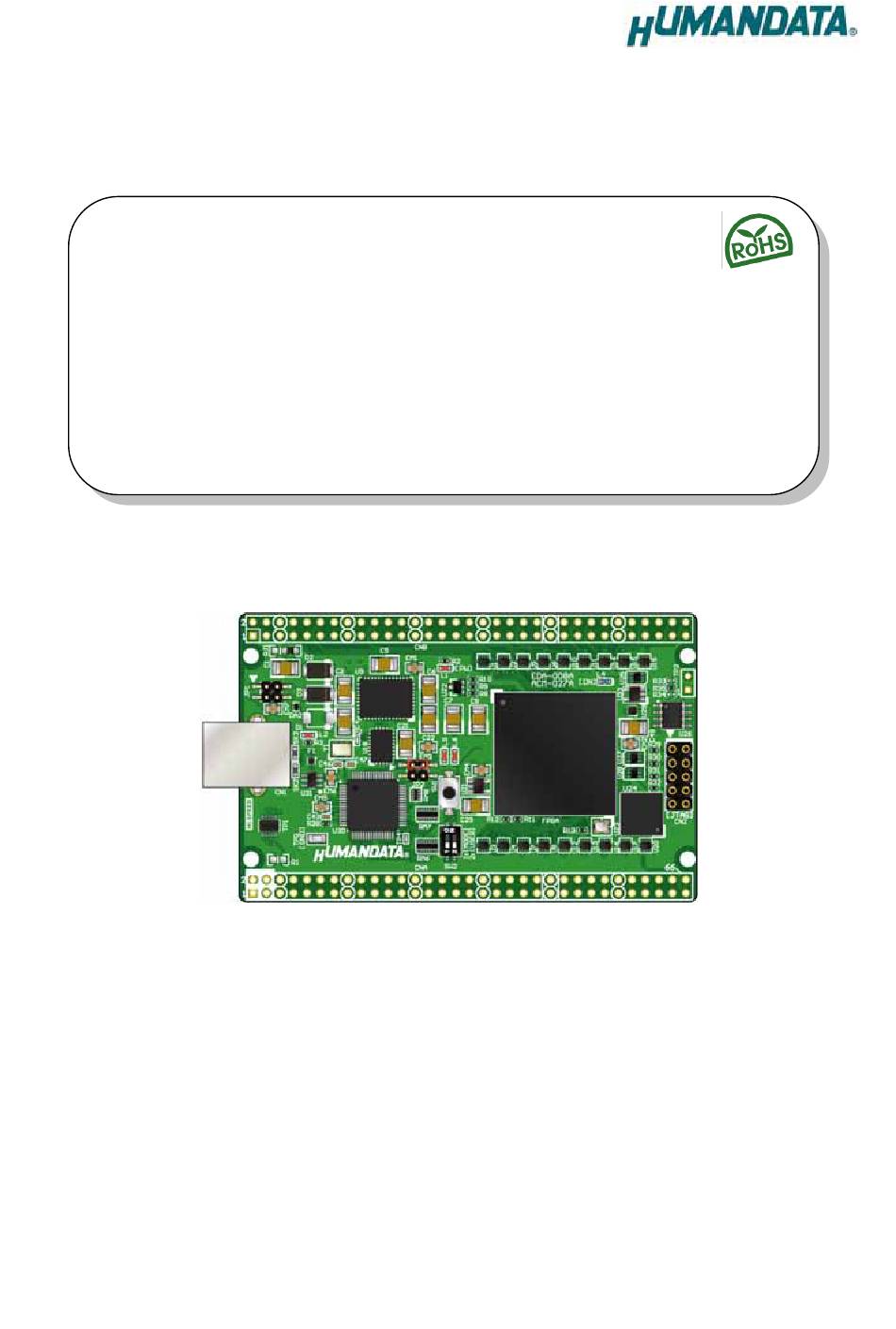

  • Page 1 Cyclone V USB-FPGA Board EDA-008 Series User’s Manual Ver. 1.0 HuMANDATA LTD.

  • Page 2: Table Of Contents

    Table of Contents Revision History ....................1 Introduction ......................1 1. Specifications ......................2 2. Overview ........................ 3 2.1. Name of Parts ....................3 2.2. Block Diagram ....................4 2.3. Clock ........................4 2.4. MRAM ........................ 4 2.5. Power Supply ..................... 5 2.6.
  • Page 3 HuMANDATA will revise the diagram. When a problem can be solved only by replacing components or modifying the product, HuMANDATA will take back the product to replace it with a properly functioning product.

  • Page 4: Revision History

    Revision History Date Revision Description May. 2, 2014 v1.0 Initial release Introduction Thank you for purchasing our product EDA-008. EDA-008 is an evaluation board with USB interface equipped with ALTERA FPGA Cyclone V series and FTDI's FT2232H. By using the original configuration tool “BBC[EDA-008]”, no download cable or ALTERA developing environment is needed to configure FPGA and configuration device on the board.

  • Page 5: Specifications

    1. Specifications Model Name EDA-008 5CEBA4F23C8N FPGA FT2232H (FTDI) USB Interface * Ch.A is available for user communication. Config. Device N25Q032 (Micron, 32Mbit) MRAM MR2A16AMA35 (Everspin, 4Mbit) Power Input DC 5.0 [V] On-Board Clock 50 [MHz] User LED User Switch 2 (Push x 1, DIP x 1bit) Status LED Power (red) x1, Done (blue) x1...

  • Page 6: Overview

    2. Overview 2.1. Name of Parts Power VIO (B) Setting Jumper USB Bus Power FPGA Setting Jumper Config. Device Connector JTAG FT2232H Setting Jumper MRAM User LED Ocillator User SW Component Side Config. SW User I/Os (CNB) User I/Os (CNA) Solder Side EDA-008 v1.0...

  • Page 7: Block Diagram

    2.2. Block Diagram V IO(B) INPUT 5 .0 V INPUT U ser I/Os CN B ESD P rotection R eset Oscillator High Speed US B Controller FT2232H U s er US B C h.A MR A M (4 Mbit) C onfig. C h.B Cyclone V C onfig.

  • Page 8: Power Supply

    2.5. Power Supply This board operates from single DC 5.0 V power supply from user I/O connector (3 and 4 pin of CNA and CNB). The external power supply should be sufficient and stabilized. You can also use USB bus power by setting JP1. OPEN (factory setting) Powered from user I/O connector only 1-2, 3-4: Short...

  • Page 9: Usb Controller

    2.7. USB Controller FTDI’s FT2232H is mounted as USB controller IC. By connecting to a PC, two channels (A/B) will be recognized. Chanel A is connected to pins of the FPGA for user communication. By setting JP4, reset function and EEPROM are available. Short (factory setting): EEPROM for FT2232H is available Open...

  • Page 10: Fpga Configuration

    3. FPGA Configuration 3.1. Using Original Tool By using the original configuration tool “BBC[EDA-008]”, following function is available without download cable. FPGA configuration ●  Write and Erace configuration device ●  BBC[EDA-008] is available for free from a support page. http://www.hdl.co.jp/en/spc/EDA/eda-008/ 3.2.

  • Page 11: Using Configuration Device

    3.3. Using Configuration Device Configuration data written in the configuration device will be configured to the FPGA automatically when power is applied. To use this function, set configuration mode to “Active Serial” mode. Do not download inaccurate configuration data. It would damage the FPGA and peripheral circuit.

  • Page 12: Factory Setting Of Ft2232H Eeprom

    5. Factory Setting of FT2232H EEPROM Factory presetting is as follows. The other items are not changed from the default. EDA-008 v1.0...

  • Page 13: Documentation And User Support

    6. Documentation and User Support The following documents and other supports are available at http://www.hdl.co.jp/en/spc/EDA/eda-008/ Circuit Schematic Pin List Dimensional drawing Net List Original Configuration Tool “BBC[EDA-008]” Device Driver … and more. EDA-008 v1.0...
  • Page 14 Cyclone V USB-FPGA Board EDA-008 Series User’s Manual Ver. 1.0 ..........May. 2, 2014 HuMANDATA LTD. Address: 1-2-10-2F, Nakahozumi, Ibaraki Osaka, Japan ZIP 567-0034 Tel: 81-72-620-2002 (Japanese) Fax: 81-72-620-2003 (Japanese/English) URL: http://www.hdl.co.jp/en/ (Global) http://www.hdl.co.jp/ (Japan)
