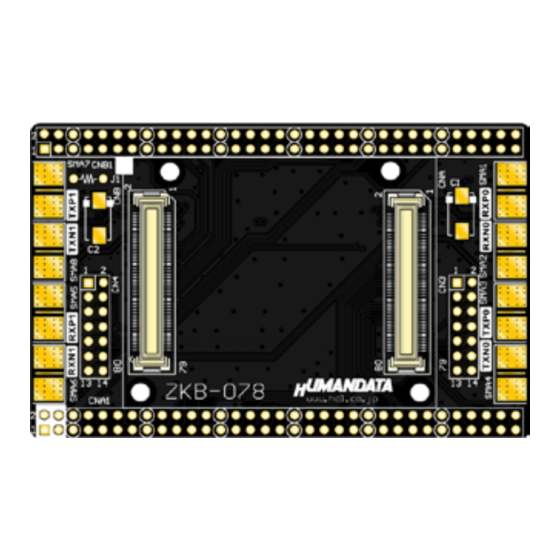

- Page 1 Pitch Conversion Board Type 2 (for ACM/XCM-1 Series) ZKB-078KIT User’s Manual Ver.1.0 HuMANDATA LTD.
- Page 2 Table of Contents Revision History ....................1 Introduction ....................1 1. Specifications ..................... 1 2. Name of Parts ....................2 3. SMA Connector ....................2 4. Additional Documentation and User Support ............. 2...
- Page 3 HuMANDATA will revise the diagram. When a problem can be solved only by replacing components or modifying the product, HuMANDATA will take back the product to replace it with a properly functioning product.
- Page 4 Apr. 06, 2010 Initial release Introduction Thank you for buying our product pitch conversion board ZKB-078KIT. This board can convert ACM/XCM-1 series into 2.54mm pitch. SMA connectors are available for the boards which have fast serial interface. 1. Specifications...
- Page 5 You can use SMA connectors for fast serial interfaces. 8 set of SMA connector is available by the order number below. Order Number: 8-SMA089PE8D 4. Additional Documentation and User Support The following documents and other supports are available at http://www.hdl.co.jp/en/spc/ACC/zkb-078/ Circuit Schematic Outline drawing PCB drawing … and more. ZKB-078KIT v1.0...
- Page 6 Pitch Conversion Board (Type 2) ZKB-078KIT User’s Manual Ver. 1.0 ..........Apr. 06, 2010 HuMANDATA LTD. Address: 1-2-10-2F, Nakahozumi, Ibaraki Osaka, Japan ZIP 567-0034 Tel: 81-(0)72-620-2002 (Japanese) Fax: 81-(0)72-620-2003 (Japanese/English) URL: http://www.hdl.co.jp/en/ (Global) http://www.hdl.co.jp/ (Japan)
